HEADS · FOR PUMPS · UP TO 400 mm²

cid 31AA14B

HEADS · FOR PUMPS · UP TO 240 mm²

HEADS · FOR PUMPS · UP TO 400 mm²

• “C” opening (max opening 23 mm) for easy joint crimping (the maximum conductor section depends on cable insulation thickness)
• with male quick coupling fitting with automatic locking
• for operation it must be combined a pump with an operating pressure of 700 bar

Product Category	heads for pumps up to 400 mm²
Crimping force at die level	120 kN
Dies	84 series
Field of use	see BM 184 manual hydraulic crimping tool for applications
cid	31AA14B

Coded items

Item Code	Description	Length [mm]	Width [mm]	Thickness [mm]	Weight [kg]	Pack size LxWxH [mm]		Quantity per Wishlist

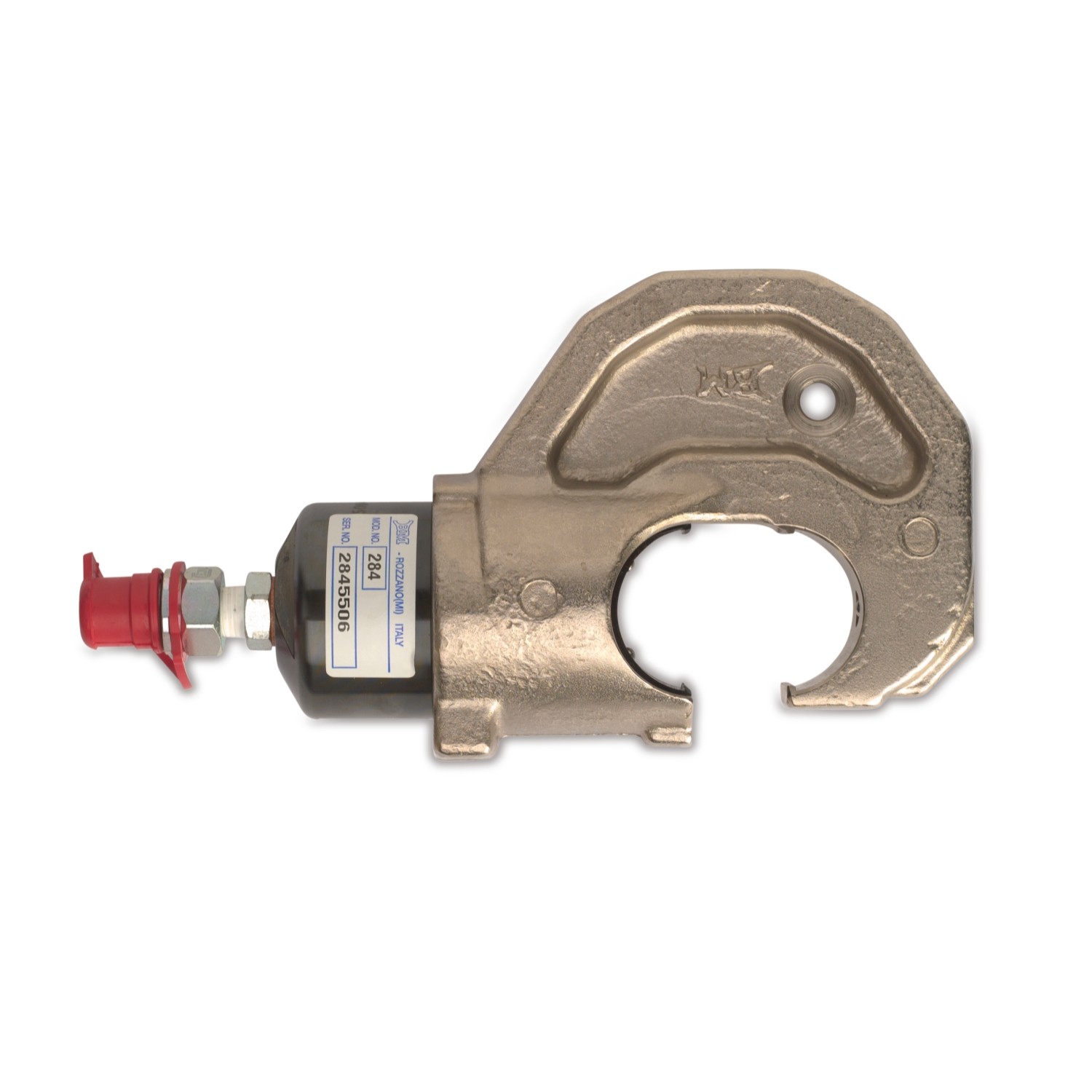

284	120 kN crimping head for pump	240	130	70	4	350x250x100	VA
