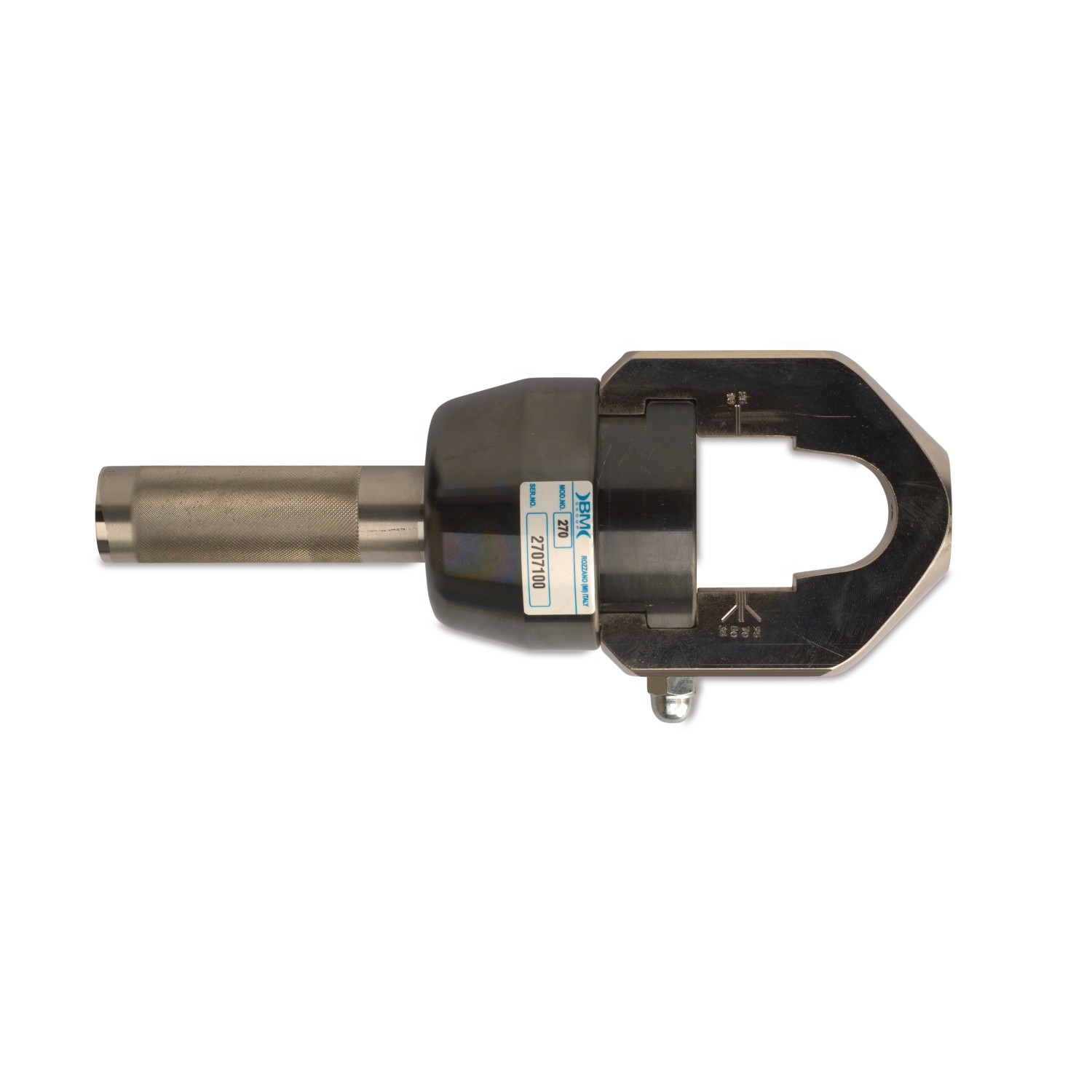

HEADS · FOR PUMPS · UP TO 630 mm²

cid 31AA14D

• deep indent
• section adjustment nut
• for operation it must be combined with a pump with an operating pressure of 700 bar

Product Category	heads for pumps up to 630 mm²
Crimping force at die level	230 kN
Field of use	• uninsulated terminals from 10 to 630 mm² • C terminals da 16 a 185 mm²
cid	31AA14D

Item Code	Description	Field of use	Section [mm²]	Section [AWG/MCM]	Length [mm]	Width [mm]	Thickness [mm]	Weight [kg]	Pack size LxWxH [mm]		Quantity per Wishlist
270	230 kN crimping head for pump, with dies for uninsulated terminals from 10 to 630 mm²	for uninsulated terminals	10 ÷ 630	(8-1250)	350	120	120	7,5	400x150x150	VA
