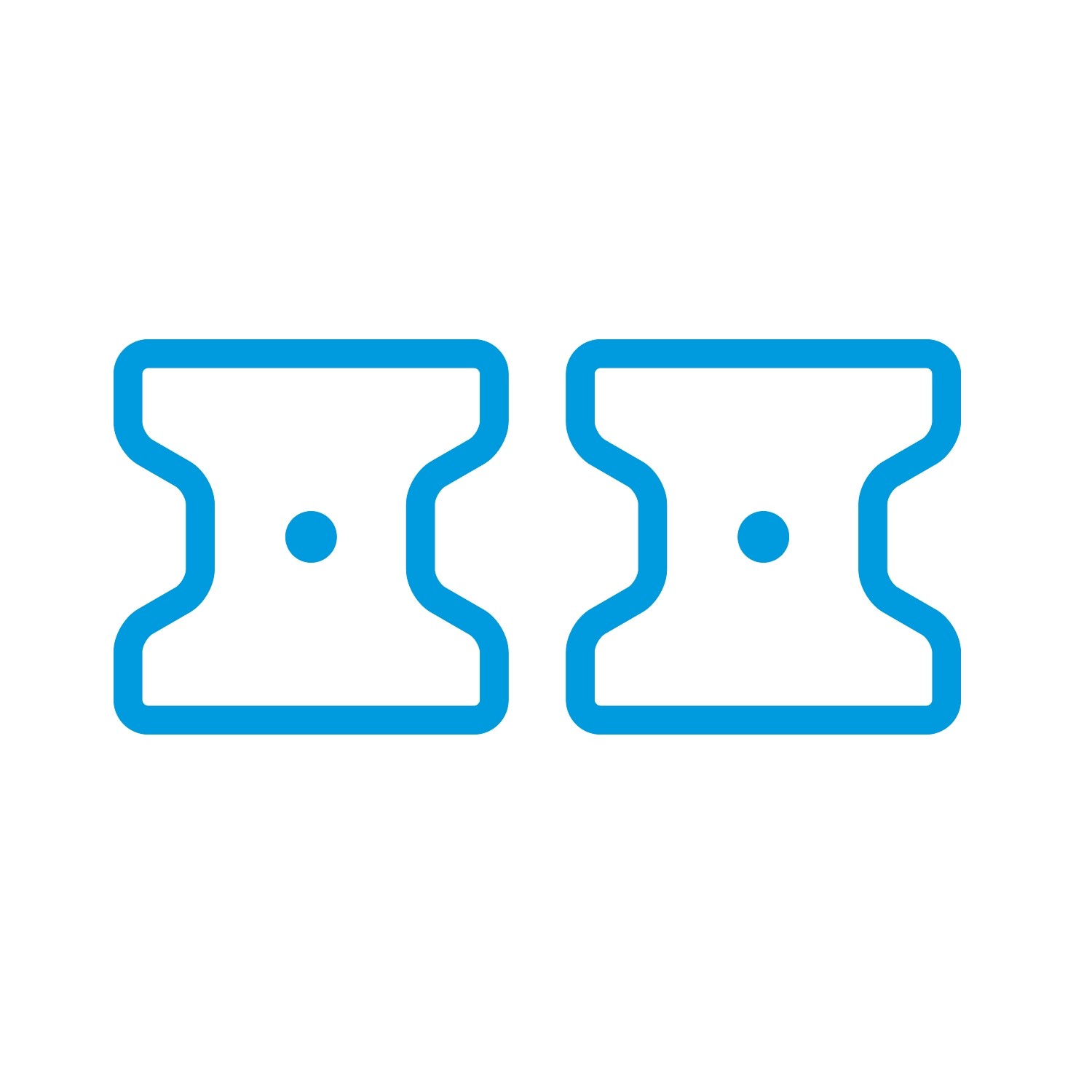

DIES SERIES 82 · FOR TOOLS

cid 31AA11E

DIES SERIES 83 · FOR TOOLS

Product Category	dies
Series	82
Compatibility	• BM 582 (mechanical crimping tool up to 150 mm² for uninsulated terminal, and up to 120 mm² for DIN terminals) • BM 200/200PA (hydraulic manual multi-head crimping tool) • BM 182/182P/1823/1824 (hydraulic manual crimping tool) • BM 200A (crimping head for multi-head manual hydraulic crimping tool)
cid	31AA11E

Coded items

Item Code	Crimping type	Terminal type	Conductor material	Section [mm²]	Section [AWG/MCM]	ID
182010	hexagonal	for uninsulated copper terminals for uninsulated copper terminals for class 6 uninsulated terminals for class 6 uninsulated terminals for terminal lug and joint in aluminum, bimetallic uninsulated DIN 48201	copper copper copper copper aluminium	10 120 10 95 70	(8) (4/0) (8) (3/0) (2/0)	7 18 7 18 18
182015	hexagonal	for uninsulated copper terminals for class 6 uninsulated terminals for uninsulated terminals medium voltage (M.V.) for bimetallic uninsulated terminals	copper copper copper aluminium	150 120 95 35 ÷ 95	(300) (4/0) (3/0) (2-3/0)	20 20 20 20
182016	hexagonal	for uninsulated copper terminals for uninsulated copper terminals for class 6 uninsulated terminals for class 6 uninsulated terminals for uninsulated terminals medium voltage (M.V.)	copper copper copper copper copper	16 95 16 70 70	(6) (3/0) (6) (2/0) (2/0)	7.5 16 7.5 16 16
182018	hexagonal	for uninsulated copper terminals for class 6 uninsulated terminals for uninsulated DIN 46235, 46234, 46267/1 terminals for uninsulated terminals medium voltage (M.V.) for terminal lug and joint in aluminum, bimetallic uninsulated DIN 48201	copper copper copper copper aluminium	185 150 150 120 ÷ 150 120	(400) (300) (300) (4/0-300) (4/0)	22 22 22 22 22
182024	hexagonal	for uninsulated copper terminals for class 6 uninsulated terminals for uninsulated DIN 46235, 46234, 46267/1 terminals for bimetallic uninsulated terminals for terminal lug and joint in aluminum, bimetallic uninsulated DIN 48201	copper copper copper aluminium aluminium	240 185 185 120 ÷ 150 150	(500) (400) (400) (4/0-300) (300)	25 25 25 25 25
182025	hexagonal	for uninsulated copper terminals for uninsulated copper terminals for class 6 uninsulated terminals	copper copper copper	25 70 25	(4) (2/0) (4)	9 14 9
182035	hexagonal	for uninsulated copper terminals for uninsulated copper terminals for class 6 uninsulated terminals for uninsulated terminals medium voltage (M.V.) for terminal lug and joint in aluminum, bimetallic uninsulated DIN 48201	copper copper copper copper aluminium	35 50 35 35 ÷ 50 16 ÷ 25	(2) (1/0) (2) (2-1/0) (6-4)	11 12 11 12 12
182110	radial containment	for insulated terminals	copper	10	(8)
182116	radial containment	for insulated terminals	copper	16	(6)
182125	radial containment	for insulated terminals	copper	25	(4)
182135	radial containment	for insulated terminals	copper	35	(2)
182150	radial containment	for insulated terminals	copper	50	(1/0)
182170	radial containment	for insulated terminals	copper	70	(2/0)
182195	radial containment	for insulated terminals	copper	95	(3/0)
182210	oval	for C shunts	copper	10	(8)
182225	oval	for C shunts	copper	16 ÷ 25	(6-4)
182235	oval	for C shunts	copper	35	(2)
182310	hexagonal	for uninsulated DIN 46235, 46234, 46267/1 terminals for uninsulated DIN 46235, 46234, 46267/1 terminals	copper copper	10 120	(8) (4/0)	6 20
182316	hexagonal	for uninsulated DIN 46235, 46234, 46267/1 terminals for uninsulated DIN 46235, 46234, 46267/1 terminals	copper copper	16 95	(6) (3/0)	8 18
182325	hexagonal	for uninsulated DIN 46235, 46234, 46267/1 terminals for uninsulated DIN 46235, 46234, 46267/1 terminals for uninsulated terminals medium voltage (M.V.)	copper copper copper	25 70 25	(4) (2/0) (4)	10 16 10
182335	hexagonal	for uninsulated DIN 46235, 46234, 46267/1 terminals for uninsulated DIN 46235, 46234, 46267/1 terminals	copper copper	35 50	(2) (1/0)	12 14
182435	hexagonal	for class 6 uninsulated terminals for terminal lug and joint in aluminum, bimetallic uninsulated DIN 48201	copper aluminium	50 35	(1/0) (2)	13 13
182450	hexagonal	for bimetallic uninsulated terminals for terminal lug and joint in aluminum, bimetallic uninsulated DIN 48201	aluminium aluminium	16 ÷ 25 50	(6-4) (1/0)	15 15
182495	hexagonal	for terminal lug and joint in aluminum, bimetallic uninsulated DIN 48201	aluminium	95	(3/0)	21
182512		prerounding	copper and aluminium	120	(4/0)
182515		prerounding	copper and aluminium	150	(300)
182550		prerounding	copper and aluminium	50	(1/0)
182570		prerounding	copper and aluminium	70	(2/0)
182595		prerounding	copper and aluminium	95	(3/0)
182612	trapezoidal	for end-sleeve terminals	copper	120	(4/0)
182615	trapezoidal	for end-sleeve terminals	copper	150	(300)
182650	trapezoidal	for end-sleeve terminals	copper	50	(1/0)
182670	trapezoidal	for end-sleeve terminals	copper	70	(2/0)
182695	trapezoidal	for end-sleeve terminals	copper	95	(3/0)
