HEADS · FOR PUMPS

cid 31AC06B

Product Category	drilling heads for control units
Puncher dies	T series, Q series and R series
Maximum punching dimensions	• round punching: 72 mm • square punching: 68 mm x 68 mm • rectangular punching: 46 mm x 72 mm
Maximum punching thickness	• iron sheet (max 3 mm) • steel sheet (max 1.5 mm)
How to use	• insert the head into a pump multi-head tool • make the hole on the sheet with the drill • pass the guide pin through the pre-drilled hole • assembly the die and the punch on both sides of the sheet • perform the punching
cid	31AC06B

Item Code	Description	Length [mm]	Width [mm]	Thickness [mm]	Weight [kg]	Pack size LxWxH [mm]		Quantity per Wishlist

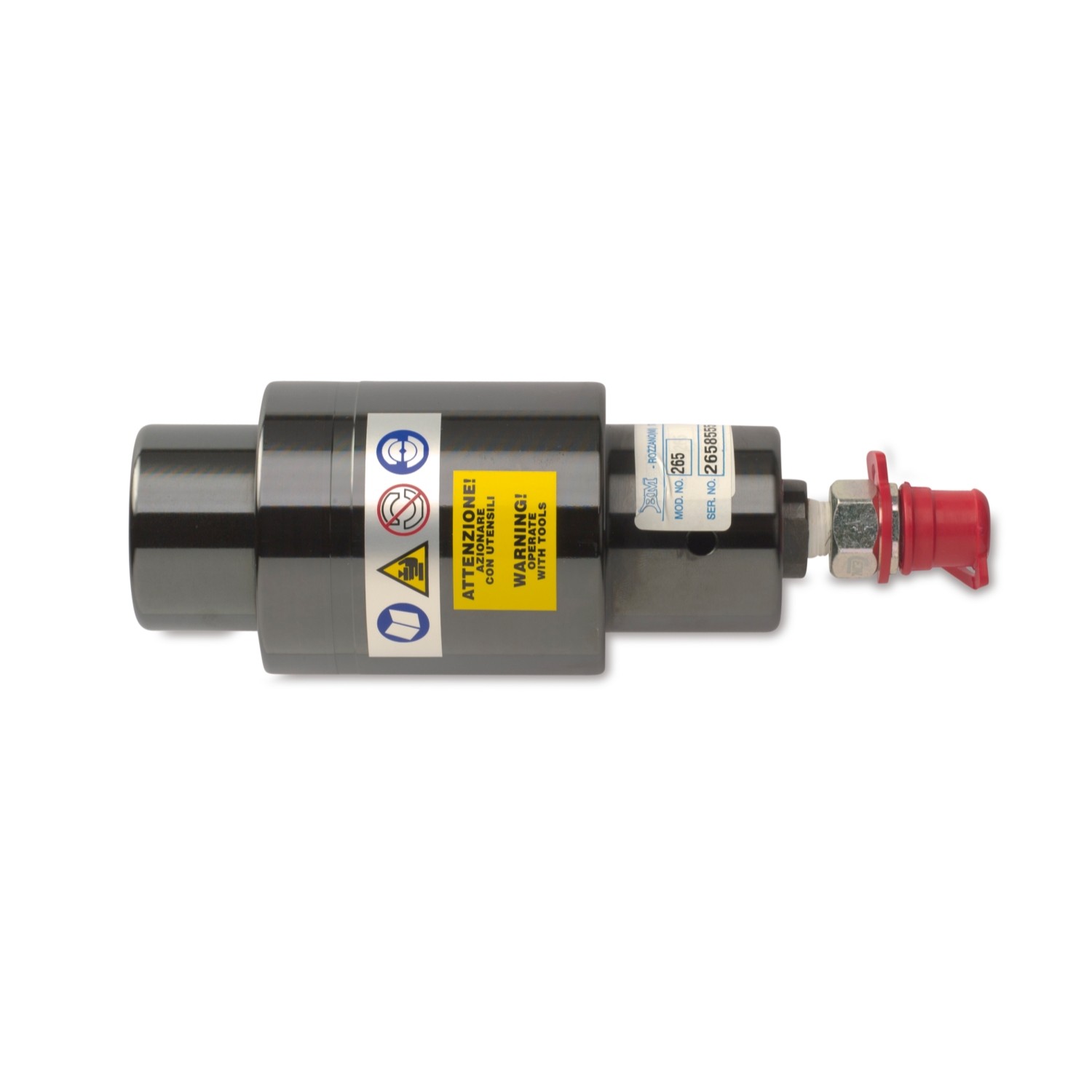

265	Hydraulic punching head for pump	210	80	80	3	250x140x100	SC
