HYDRAULIC · MANUAL

cid 31AC04A
Previous

HYDRAULIC · MANUAL · DUCT PUNCHER

Product Categorymechanical drillers
Puncher diesT series, Q series and R series
Maximum punching dimensions• round punching: 72 mm
• square punching: 68 mm x 68 mm
• rectangular punching: 46 mm x 72 mm
Maximum punching thickness• iron sheet (max 3mm)
• steel sheet (max 1.5mm)
How to use• make the hole on the sheet with the drill
• pass the guide pin through the pre-drilled hole
• assembly the die and the punch on both sides of the sheet
• perform the punching
cid31AC04A
PDF documents
Item
Code		 DescriptionLength
[mm]		Width
[mm]		Thickness
[mm]		Weight
[kg]		Pack size LxWxH
[mm]		 Quantity per
Wishlist

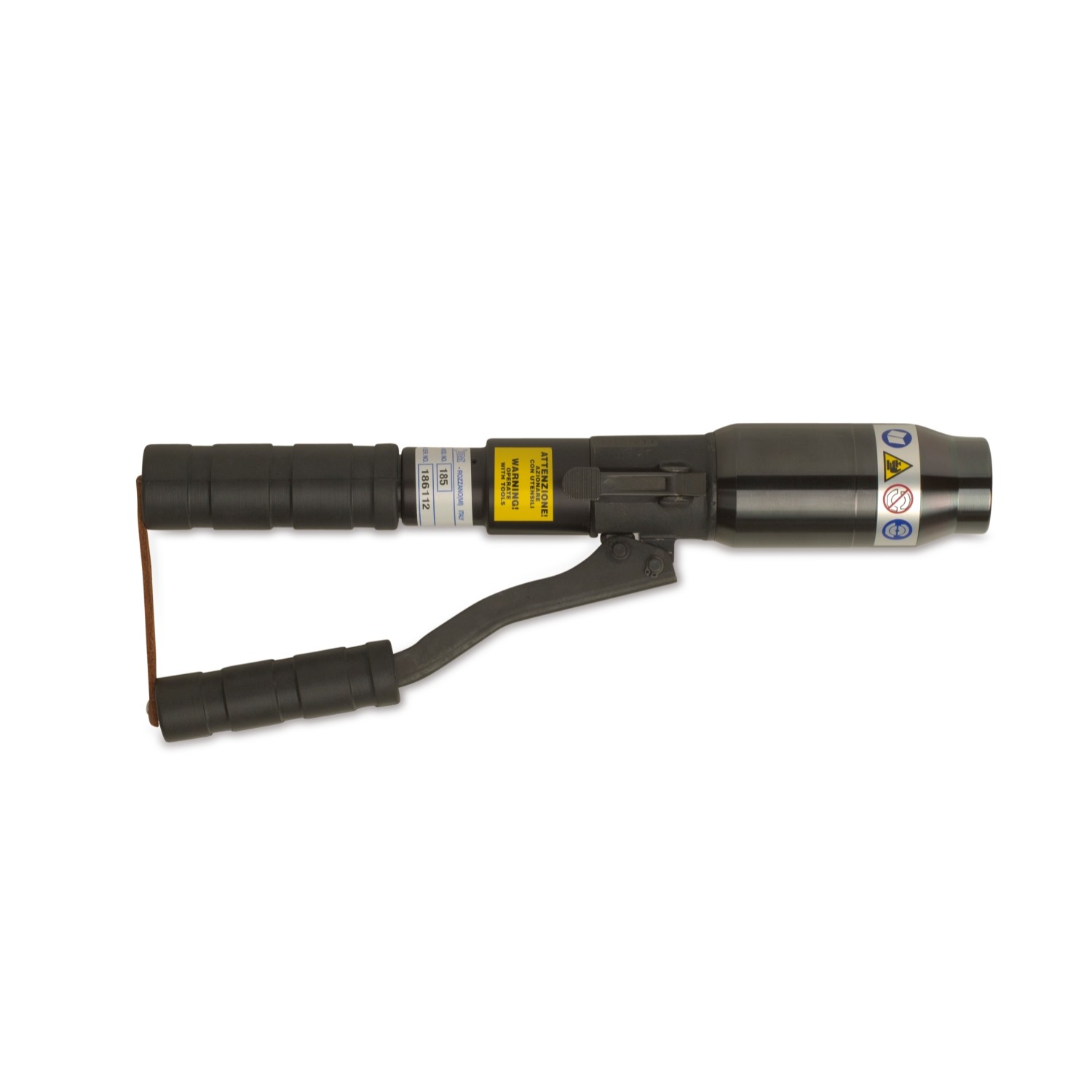

185 Hand hydraulic punching press complete with carrying case360120502,7450x300x100VA

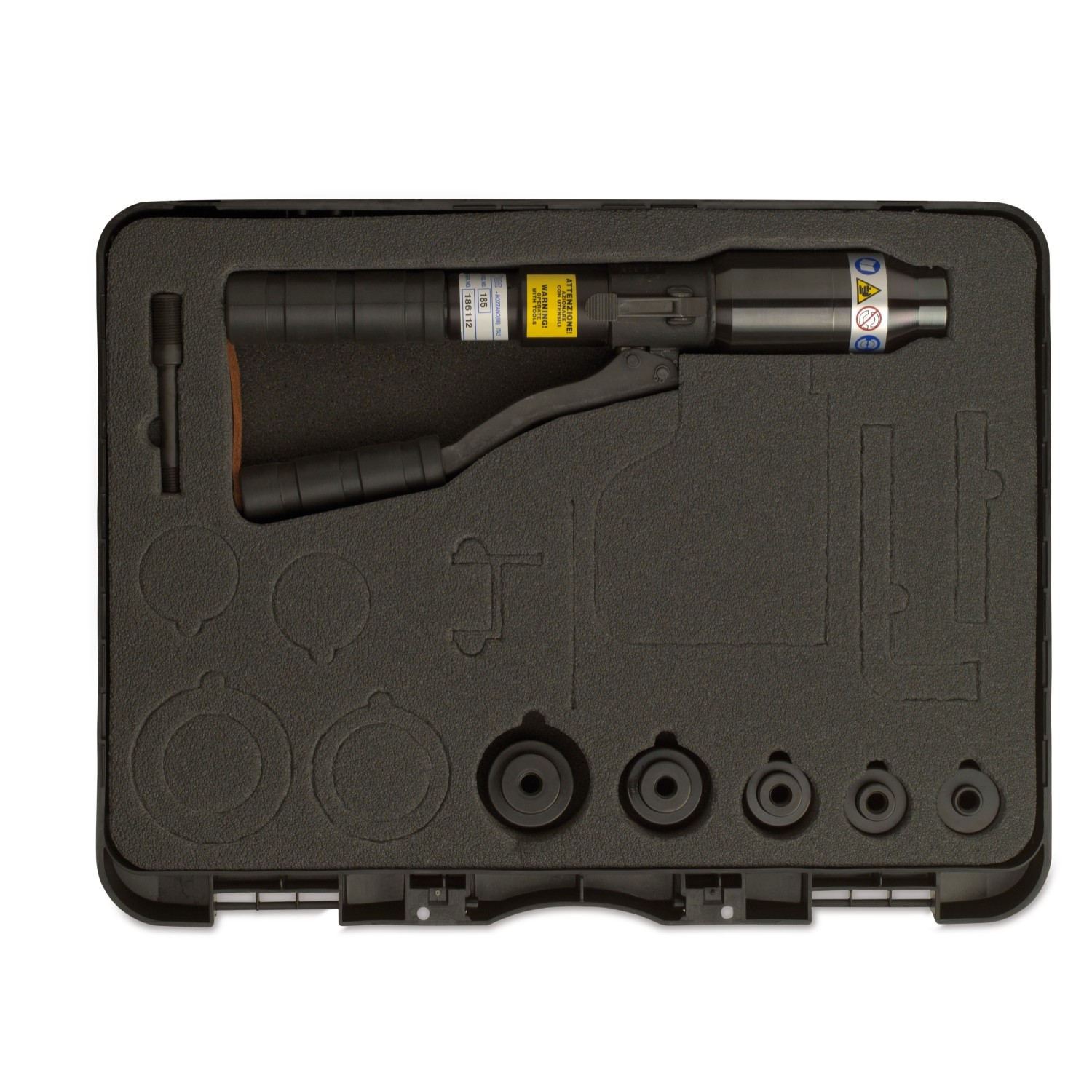

1856 Punching press kit complete with
• BM 185 manual hydraulic punching press with carrying case
• round punchers Ø 15.5 - Ø 19.5 - Ø 22.5 - Ø 26.5 - Ø 30.5
• guide pin Ø 11		360120502,7450x300x100VA
For mechanics, industrial maintenance and car repair professionals as well as for anybody whose hobby is much more than just a diversion.
