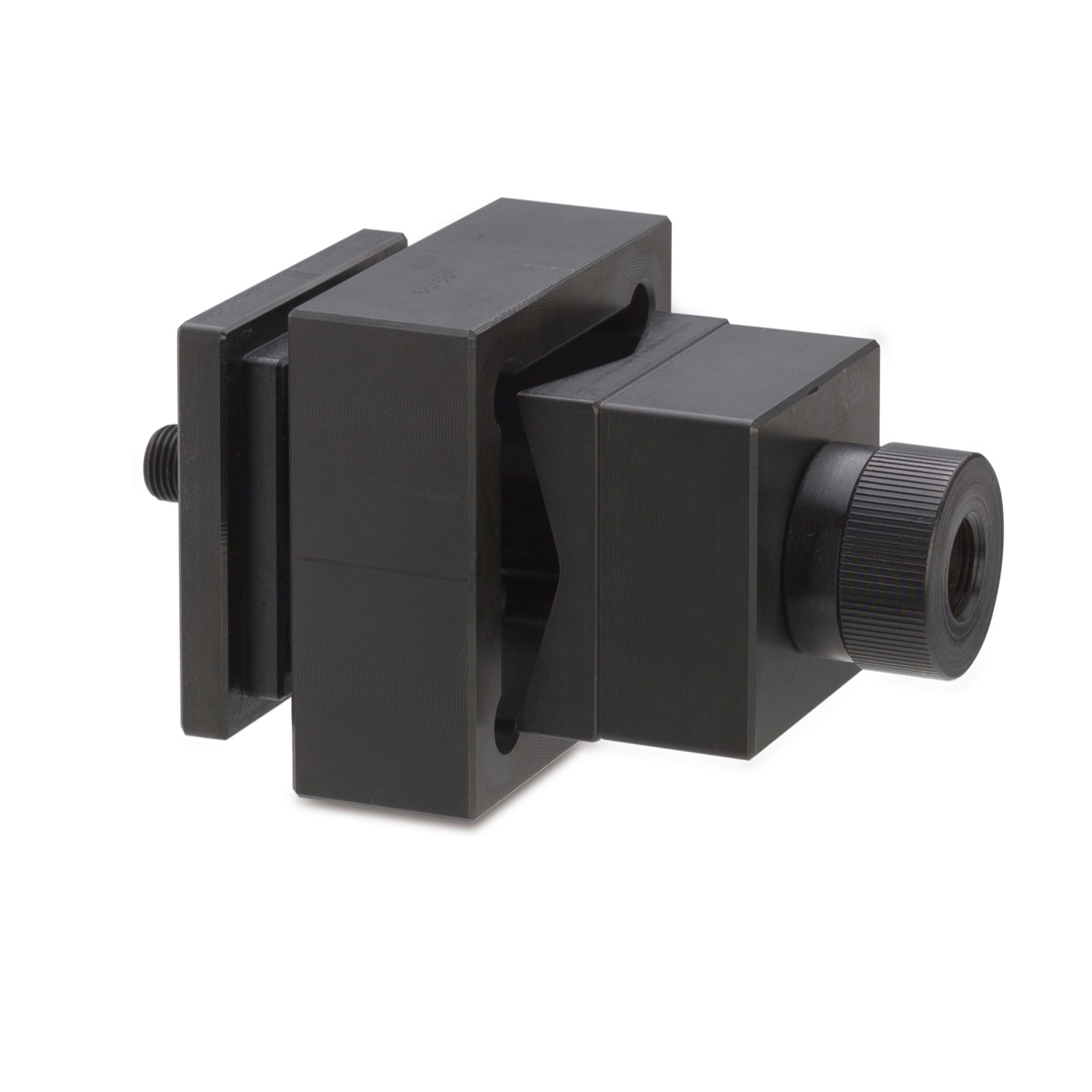

PUNCHERS · Q SERIES · SQUARE

cid 31AC05C

Product Category	punchers
Compatibility	• BM 185, BM 1856 (manual hydraulic punching tools) • BM 265 (punching head for pump) • BM 200F (punching head for BM 200 manual hydraulic multi-head)
Puncher and pin material	cemented steel
cid	31AC05C

Item Code	Side [mm]	Compatible pin	pin Ø [mm]	Pilot hole [mm]
Q20	20	310	8	17
Q24	24	310	8	17
Q30	30	311	12	19.5
Q40	40	312	14	19.5
Q46	46	312	14	19.5
Q50	50	313	20	28.5
Q57	57	313	20	28.5
Q68	68	313	20	28.5
Q92	92	313	20	28.5
Q104	104	314	22	28.5
Q138	138	314	22	28.5
Q143	143	314	22	28.5
Q175	175	314	22	28.5
