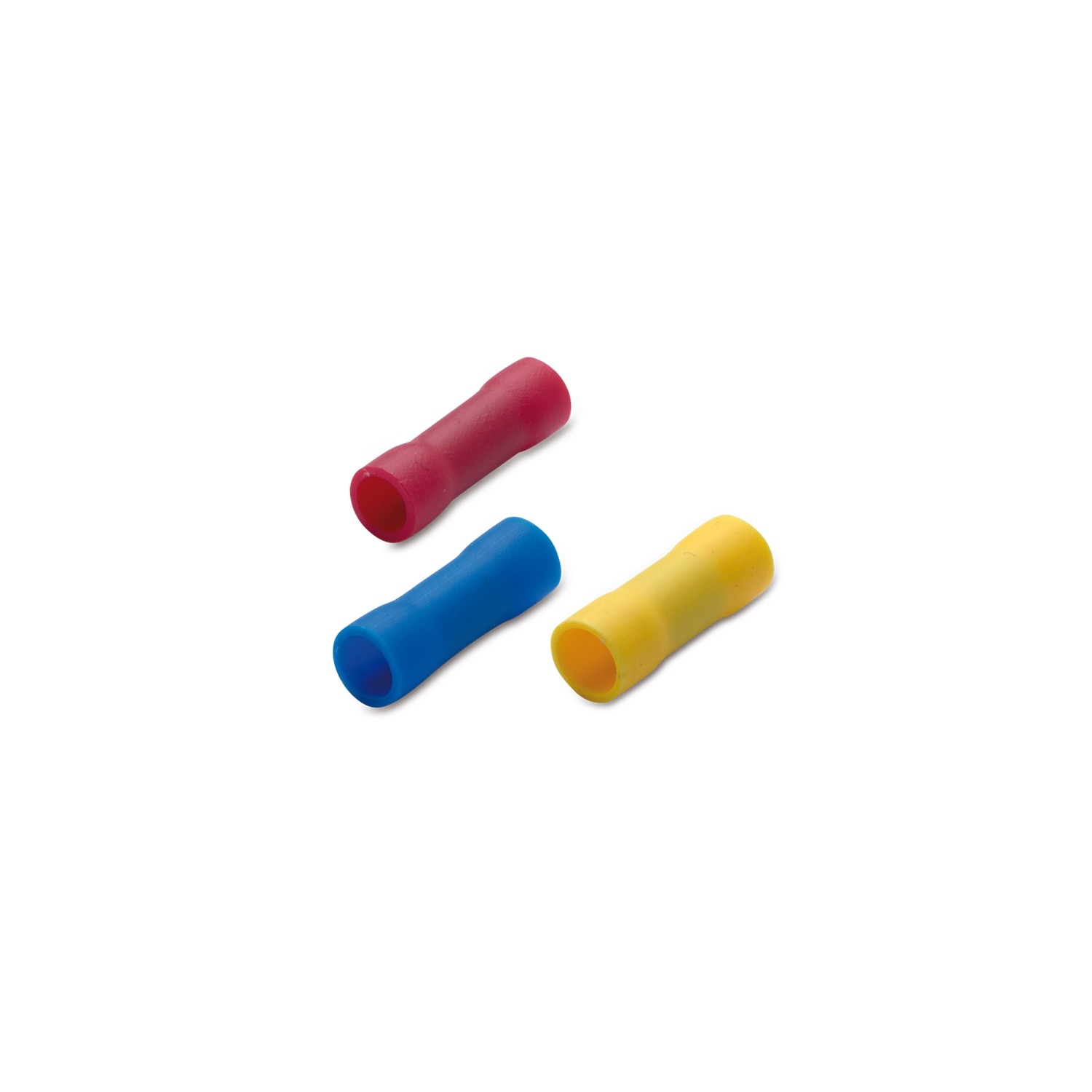

PVC INSULATED BUTT CONNECTORS

cid 11TF02A

Product Category	parallel connectors
Terminal material	tinned copper
Insulation material	polyvinylchloride (PVC)
insulation self-extinguishing grade	UL 94 V0
Operating temperature	75 °C max
Max rated voltage	300 V
cid	11TF02A

Images with
dimensions

Item Code	Color	Section [mm²]	Section [AWG/MCM]	L1 [mm]	L2 [mm]	D1 [mm]	D2 [mm]	
00162	Red	0.25 ÷ 1.5	(22 - 16)	18	8	4,2	1,8	100/1000
00262	Blue	1.5 ÷ 2.5	(16 - 14)	18	8	4,8	2,5	100/1000
00362	Yellow	4 ÷ 6	(12 - 10)	21,5	8,5	6,5	3,7	50/500
