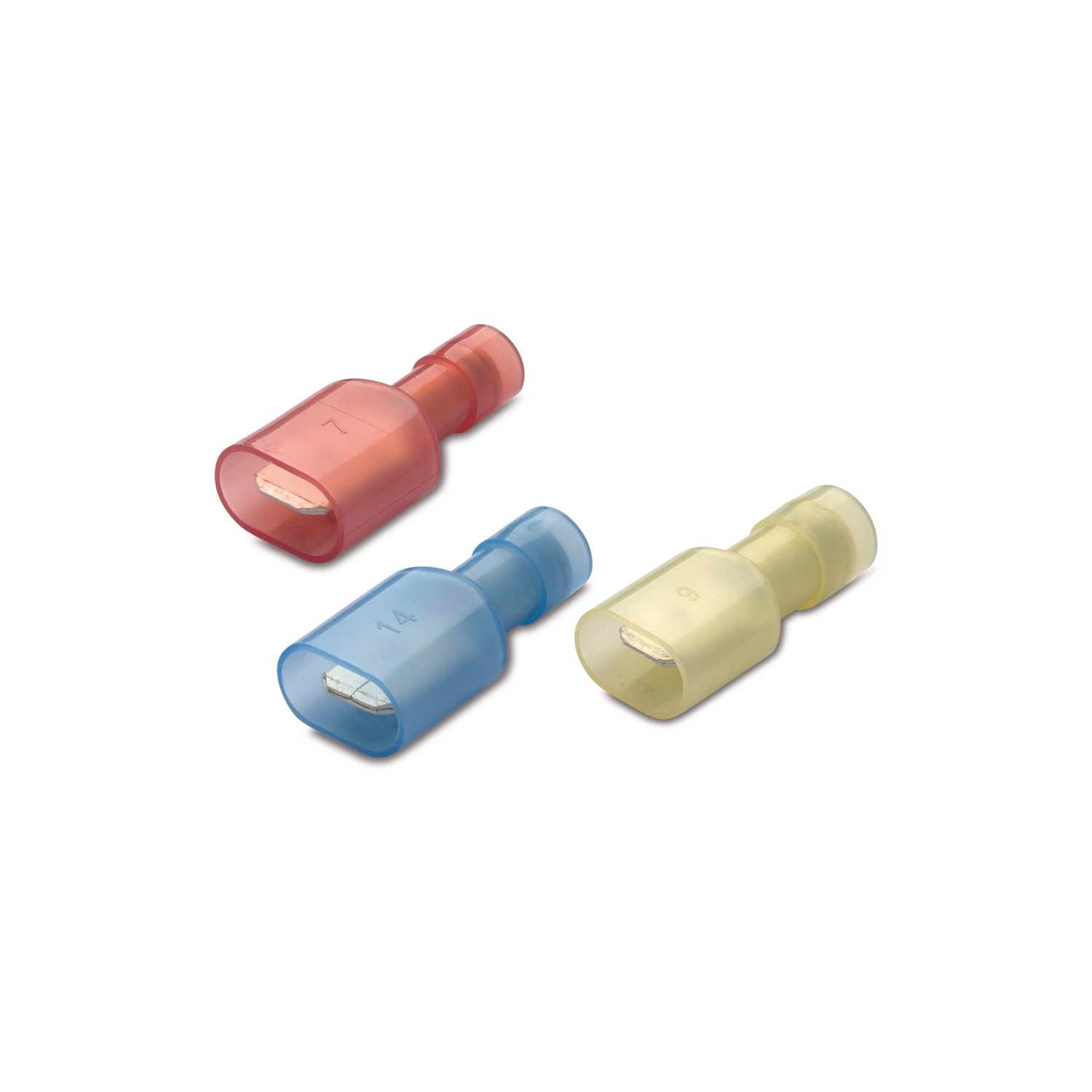

NYLON INSULATED AND ANTI-VIBRATING · TOTALLY INSULATED MALE

cid 11TD03G

Product Category	quick-connect terminals
Terminal material	tinned brass
End-sleeve material	copper
Insulation material	polyamide (PA 6.6)
Operating temperature	105 °C max
Insulation self-extinguishing grade	UL 94 V2
Rated voltage	300V max
How to assemble	double crimping
cid	11TD03G

Images with
dimensions

Item Code	Section [mm²]	Section [AWG/MCM]	CarTec 11 [mm]	CarTec 12 ["]	D1 [mm]	D2 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	W1 [mm]	Insulating color	
80180	0.25 ÷ 1.5	(22 - 16)	6.3 x 0.8	0.250x0.032	3,8	1,9	23	11	8	6,3	Red	100/1000
80280	1.5 ÷ 2.5	(16 - 14)	6.3 x 0.8	0.250x0.032	3,8	1,9	23	11	8	6,3	Blue	50/500
80380	4 ÷ 6	(12 - 10)	6.3 x 0.8	0.250x0.032	6	3,5	26	13	8	6,3	Yellow	50/500
