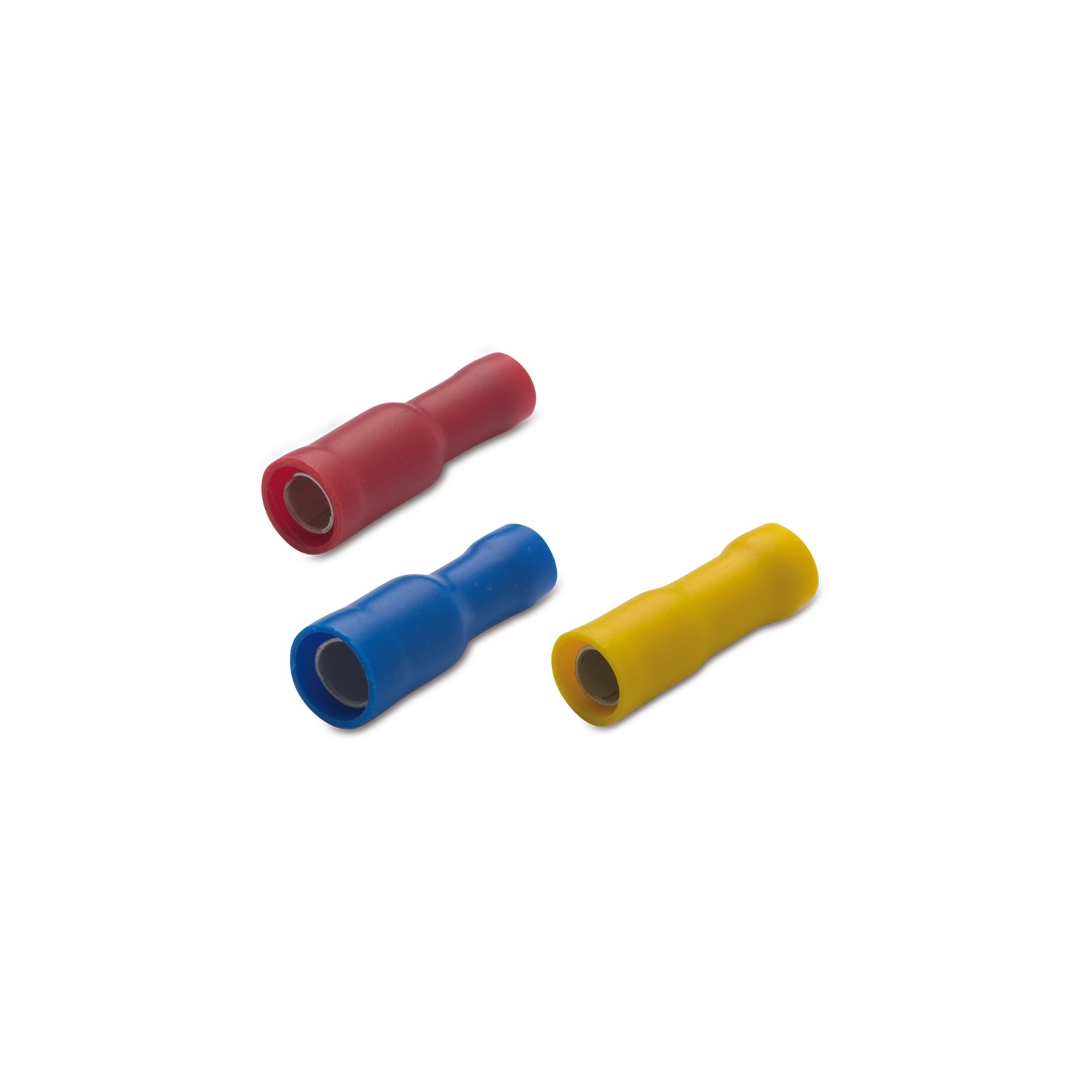

PVC AND ANTI-VIBRATING CYLINDER PLUG · FEMALE

cid 11TE01A

Product Category	cilynder plug
Terminal material	tinned brass
End-sleeve material	copper
Insulation material	polyvinylchloride (PVC)
Operating temperature	75 °C max
Insulation self-extinguishing grade	UL 94 V0
Rated voltage	300V max
How to assemble	double crimping
cid	11TE01A

Images with
dimensions

Item Code	Section [mm²]	Section [AWG/MCM]	D1 [mm]	D2 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	Insulating color	
00140*	0.25 ÷ 1.5	(22 - 16)	3,8	4	23,5	9,5	8,4	Red	100/1000
00240*	1.5 ÷ 2.5	(16 - 14)	4,3	5	23,5	9,5	8,7	Blue	50/500
00244*	1.5 ÷ 2.5	(16 - 14)	4,3	4	23,5	9,5	8,7	Blue	50/500
00340	4 ÷ 6	(12 - 10)	6,2	5	25	12	8,2	Yellow	50/500
