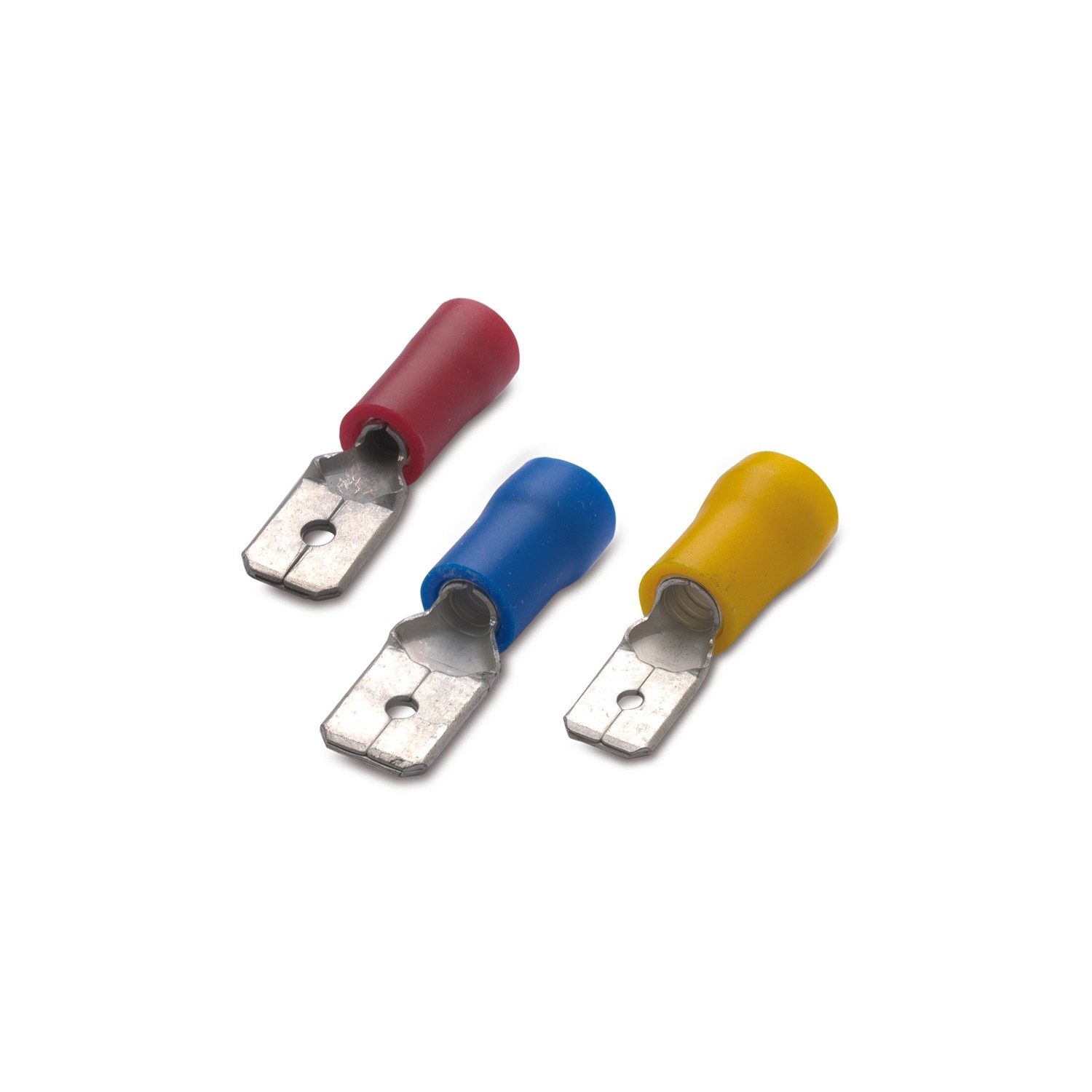

PVC INSULATED AND ANTI-VIBRATING · MALE

cid 11TD03C

Product Category	quick-connect terminals
Terminal material	tinned brass
End-sleeve material	copper
Insulation material	polyvinylchloride (PVC)
Operating temperature	75 °C max
Insulation self-extinguishing grade	UL 94 V0
Rated voltage	300V max
How to assemble	double crimping
cid	11TD03C

Images with
dimensions

Item Code	Section [mm²]	Section [AWG/MCM]	CarTec 11 [mm]	CarTec 12 ["]	D1 [mm]	D2 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	S1 [mm]	W1 [mm]	Insulating color	
00180	0.25 ÷ 1.5	(22 - 16)	6.3 x 0.8	0.250x0.032	3,8	1,9	21	10	8	0,8	6,3	Red	100/1000
00280	1.5 ÷ 2.5	(16 - 14)	6.3 x 0.8	0.250x0.032	4,3	2,4	21	10	8	0,8	6,3	Blue	100/1000
00380	4 ÷ 6	(12 - 10)	6.3 x 0.8	0.250x0.032	6	3,5	24,5	13,5	8	0,8	6,3	Yellow	50/500
