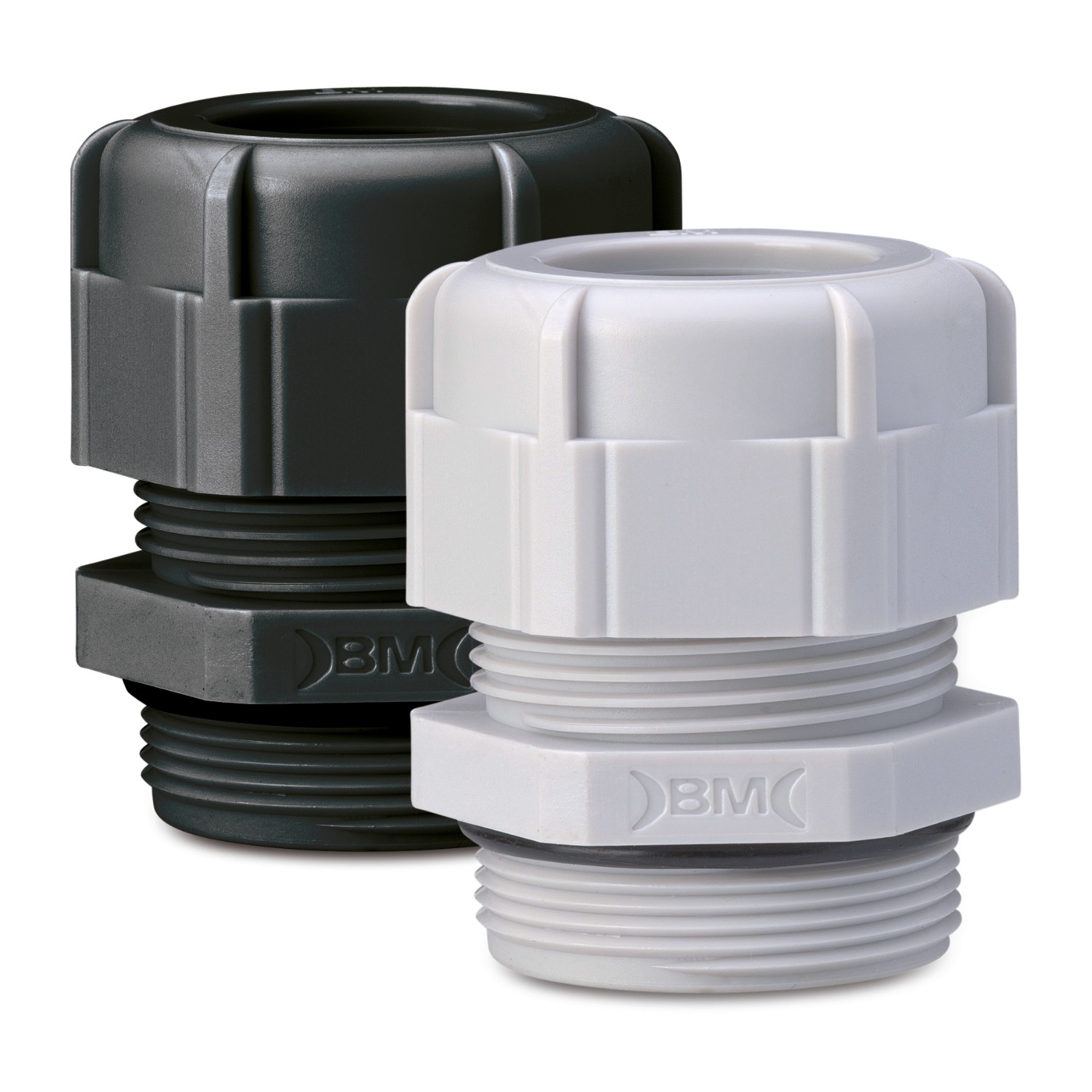

METRIC THREAD · IP68 · STANDARD

cid 22PA01A

Product Category	nylon cable glands
Material	polyamide (PA 6.6), self-extinguishing according to UL 94 V2 and IEC 695-2-1 (850 °C)
Operating temperature	from -20 °C to +90 °C
Inner gasket and washer	NBR (nitrile rubber), 70 Shore A
According to std.	EN 62444:2013
cid	22PA01A

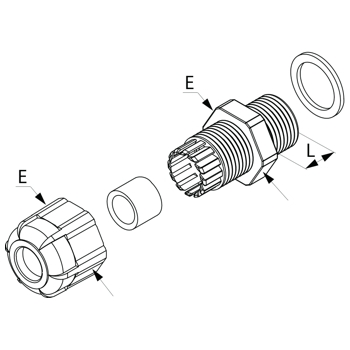

Images with
dimensions

Item Code	Color	Thread (EN 60423)	Cable diameter [mm]	L [mm]	E wrench [nut]	
4912	Grey RAL 7035	M 12 x 1.5	3 - 6,5	9	16	50/250
4912N	Black RAL 9005	M 12 x 1.5	3 - 6,5	9	16	50/250
4917	Grey RAL 7035	M 16 x 1.5	4 - 8	9	19	50/250
4917N	Black RAL 9005	M 16 x 1.5	4 - 8	9	19	50/250
4920	Grey RAL 7035	M 20 x 1.5	6 - 12	10	24	25/125
4920N	Black RAL 9005	M 20 x 1.5	6 - 12	10	24	25/125
4925	Grey RAL 7035	M 25 x 1.5	13 - 18	12	33	25/125
4925N	Black RAL 9005	M 25 x 1.5	13 - 18	12	33	25/125
4932	Grey RAL 7035	M 32 x 1.5	16 - 21	12	36	20/100
4932N	Black RAL 9005	M 32 x 1.5	16 - 21	12	36	20/100
4940	Grey RAL 7035	M 40 x 1.5	20 - 26	15	46	10/50
4940N	Black RAL 9005	M 40 x 1.5	20 - 26	15	46	10/50
4950	Grey RAL 7035	M 50 x 1.5	32 - 38	18	60	5/25
4950N	Black RAL 9005	M 50 x 1.5	32 - 38	18	60	5/25
4963	Grey RAL 7035	M 63 x 1.5	37 - 44	18	68	5/5
4963N	Black RAL 9005	M 63 x 1.5	37 - 44	18	68	5/5
