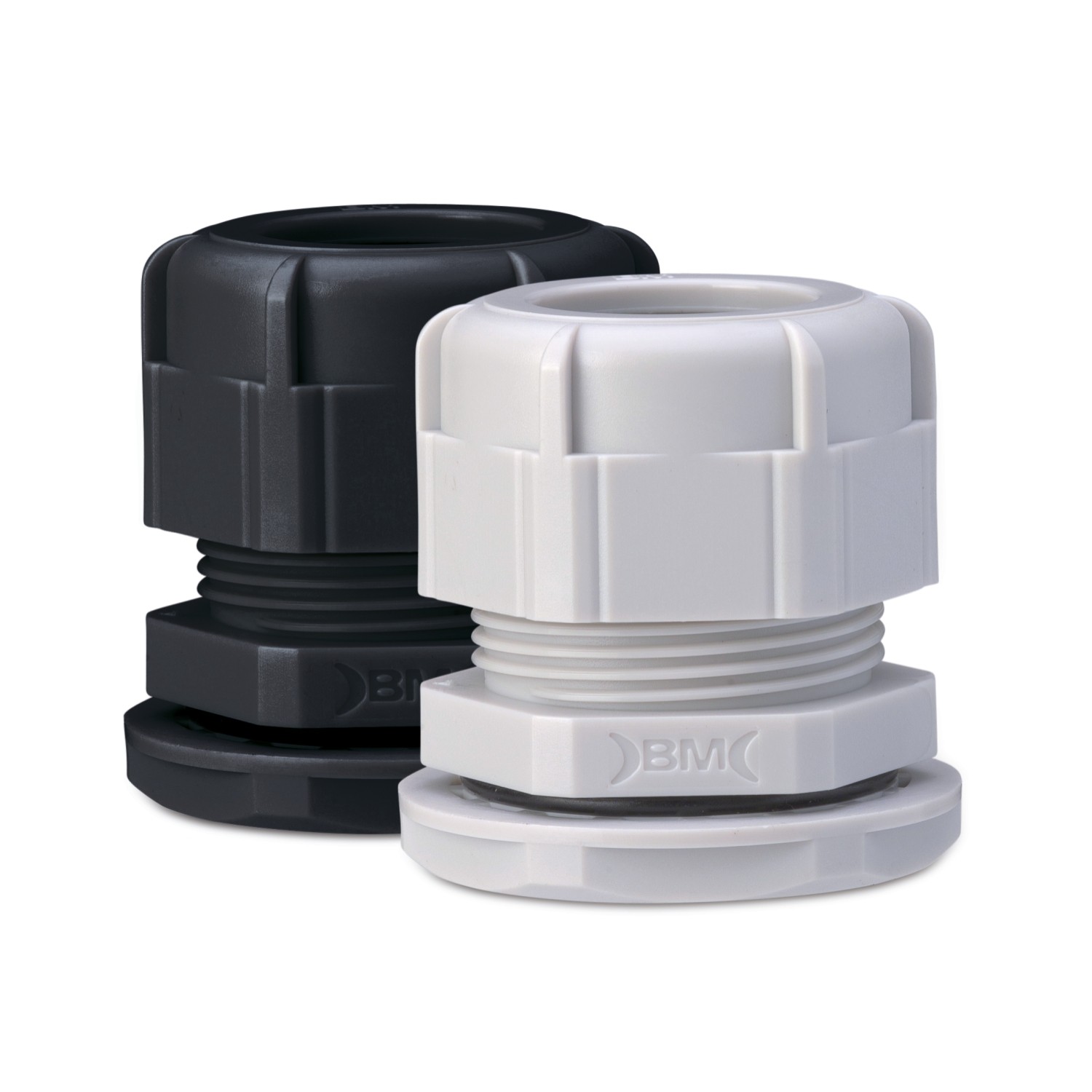

PG THREAD · IP68 · WITH LOCKNUT

cid 22PA03B

Product Category	nylon cable glands
Material	polyamide (PA 6.6), self-extinguishing according to UL 94 V2 and IEC 695-2-1 (850 °C)
Operating temperature	from -20 °C to +90 °C
Inner gasket and washer	NBR (nitrile rubber), 70 Shore A
According to std.	EN 62444:2013
cid	22PA03B

Images with
dimensions

Item Code	Color	PG thread size (DIN 40430)	Cable diameter [mm]	L [mm]	E wrench [nut]	E1 wrench [locknut]	
4707	Grey RAL 7035	PG 7	3 - 6,5	9	16	19	10/100
4707N	Black RAL 9005	PG 7	3 - 6,5	9	16	19	10/100
4709	Grey RAL 7035	PG 9	4 - 8	9	16	22	10/100
4709N	Black RAL 9005	PG 9	4 - 8	9	19	22	10/100
4711	Grey RAL 7035	PG 11	5 - 10	9	22	24	10/100
4711N	Black RAL 9005	PG 11	5 - 10	9	22	24	10/100
4713	Grey RAL 7035	PG 13.5	6 - 11	10	24	27	10/100
4713N	Black RAL 9005	PG 13.5	6 - 11	10	24	27	10/100
4716	Grey RAL 7035	PG 16	10 - 13	10	27	30	10/100
4716N	Black RAL 9005	PG 16	10 - 13	10	27	30	10/100
4721	Grey RAL 7035	PG 21	13 - 18	12	33	36	10/100
4721N	Black RAL 9005	PG 21	13 - 18	12	33	36	10/100
4729	Grey RAL 7035	PG 29	18 - 25	12	42	46	10/50
4729N	Black RAL 9005	PG 29	18 - 25	12	42	46	10/50
4736	Grey RAL 7035	PG 36	25 - 32	15	52	56	5/5
4736N	Black RAL 9005	PG 36	25 - 32	15	52	56	5/5
4742	Grey RAL 7035	PG 42	32 - 38	18	60	65	5/5
4742N	Black RAL 9005	PG 42	32 - 38	18	60	65	5/5
4748	Grey RAL 7035	PG 48	37 - 44	18	68	69	5/5
4748N	Black RAL 9005	PG 48	37 - 44	18	68	69	5/5
