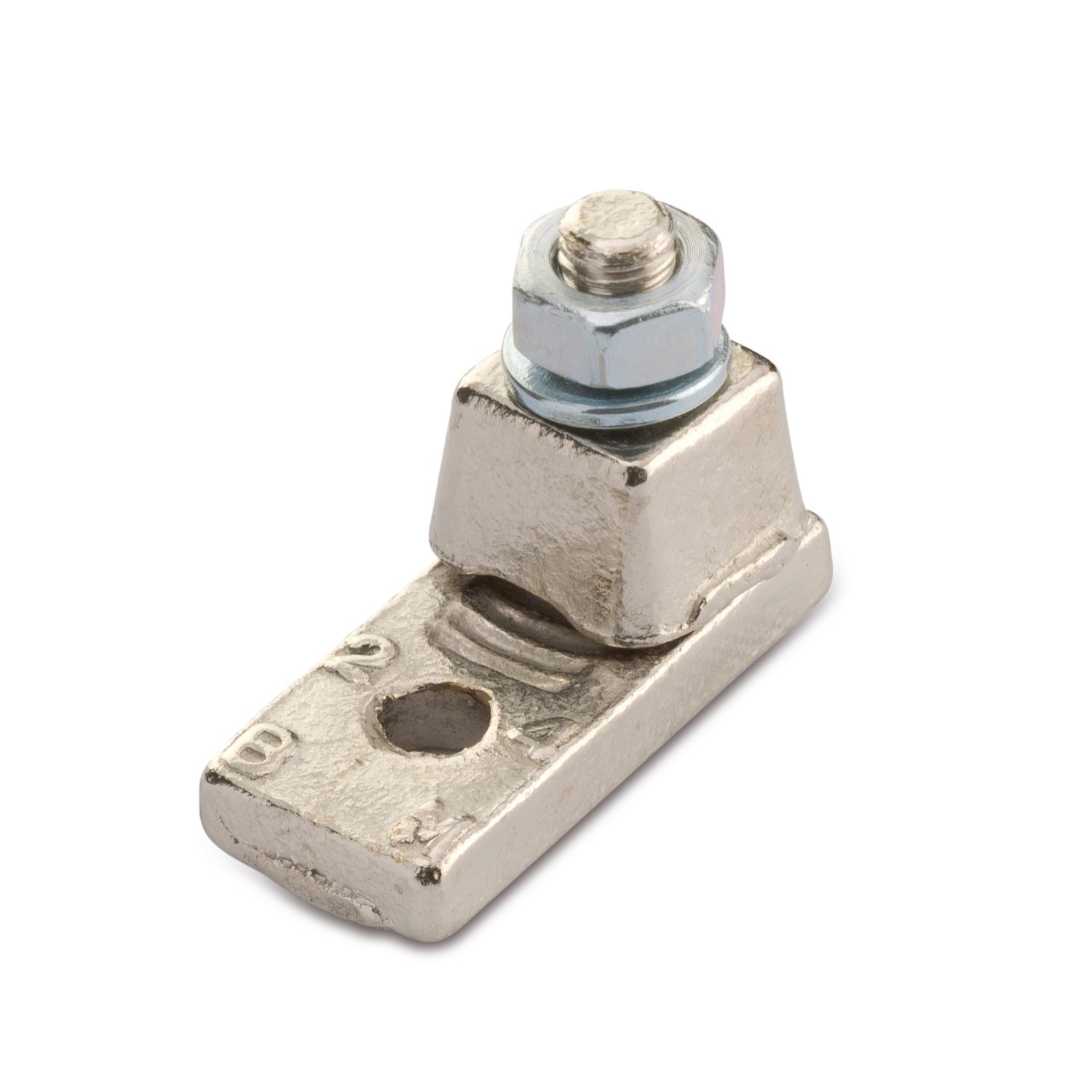

1-BOLT TERMINALS

cid 22CA02A

Images with
dimensions

Item Code	Section [mm²]	Cable diameter [mm]	D1 [mm]	D2 [mm]	W1 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	Screw	
5160	4 ÷ 10	2 ÷ 4	4,2	5,25	12	26,5	12	7	M5	100/100
5161	10 ÷ 25	4 ÷ 6	6,2	6	14	36	11	8	M6	100/100
5162	25 ÷ 35	6 ÷ 8,5	8,5	6	17	38	12,5	8	M7	100/100
5163	35 ÷ 50	8,5 ÷ 11	11,5	8,3	23	50	18	12	M10	50/50
5164	70 ÷ 95	11 ÷ 14	15	10,5	26,5	55	20,5	14,5	M12	25/25
5165	95 ÷ 120	14 ÷ 17	27,5	11,5	32	64	23	16	M14	25/25
5166	150 ÷ 185	17 ÷ 20,5	21	14	37,5	79	26	18	M16	20/20
5167	185 ÷ 240	20,5 ÷ 24	24	17	40	94	31,5	23	M16	10/20
