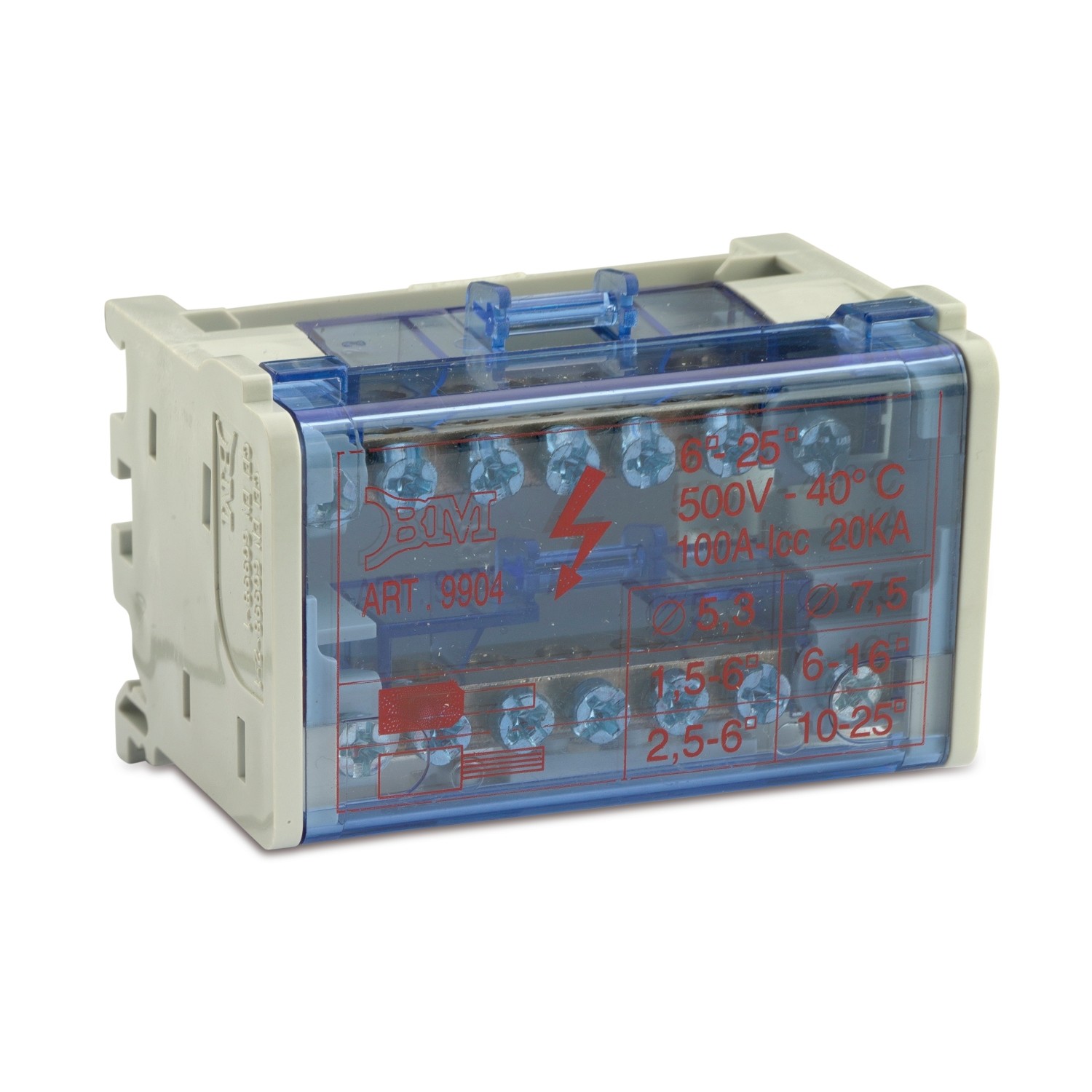

MODULAR · 2-WAY 100 A

cid 41MC01B

Product Category	modular terminal blooks
Insulating housing	polycarbonate (PC)
Connection bars in	brass
Screw in	galvanized steel
Insulation self-extinguishing	IEC 69522, UL 94 V0 IEC 69521 at/up to 960 °C
Rated insulation voltage	500 V
Tightening torque on the screw	2 Nm
Test voltage	3000 V
Type of mount	on EN 50022 rail, via screws
According to std.	EN 60947-1, EN 60998-1, EN 60998-2-1
cid	41MC01B

Images with
dimensions

Item Code	N. of 17.5 mm modules	Peak current	Inputs/ways	Conductor section With terminal [mm²]	Conductor section Without terminal [mm²]	L1 [mm]		Quantity per Wishlist
9904	4	Icc 20	5 2	1,5 - 6 6 - 16	2,5 - 6 10 - 25	70	1/5
