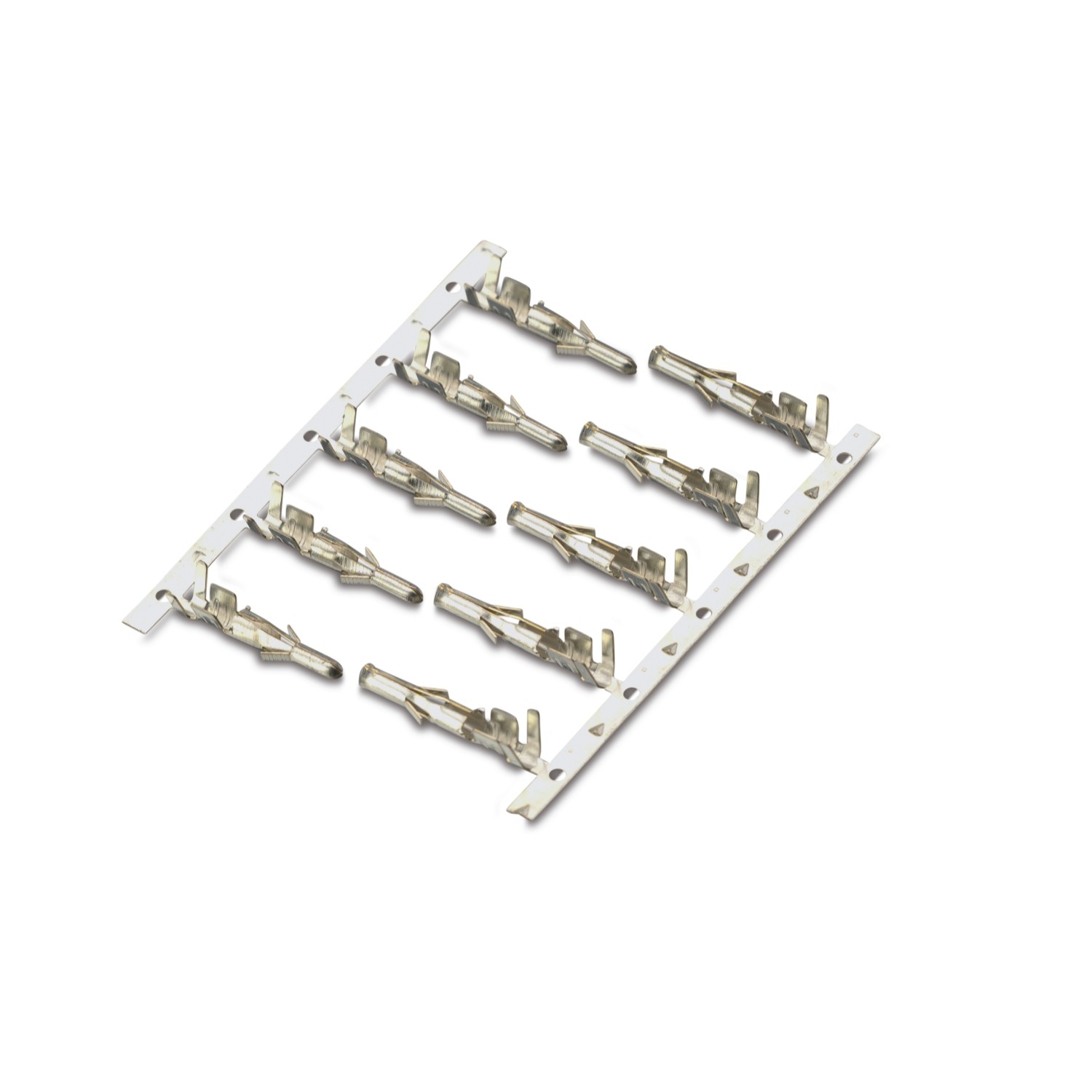

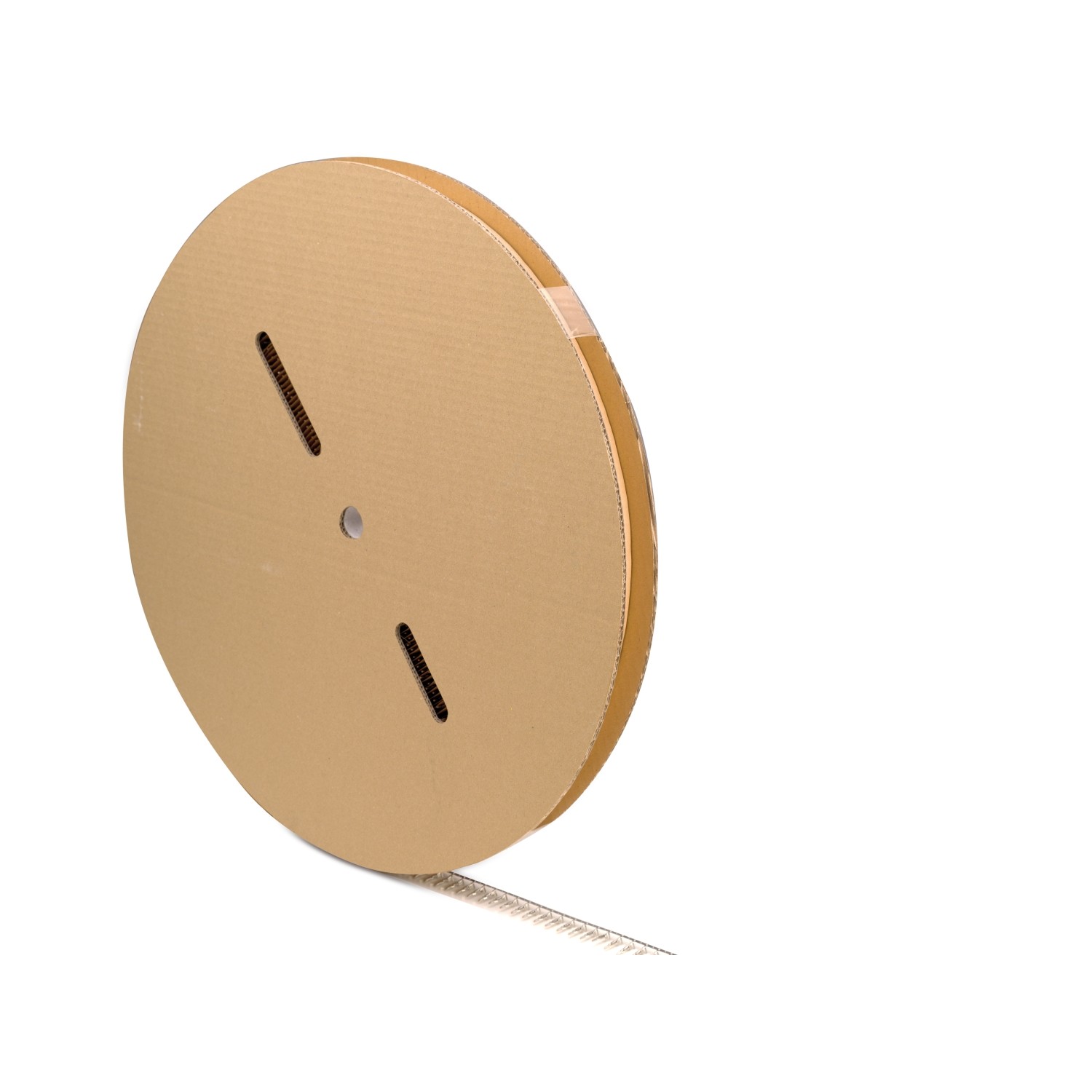

AUTOMATIC CRIMPING CONNECTORS· TERMINALS · M620 SERIES · IN A REEL

cid 41MD02A

Product Category	automatic crimping connectors
Insulating housing in	polyamide (PA 6.6) natural color
Test current	15 A
Dielectric strength	1500 AC-1 minute V
Terminal material	tinned brass
Insulation self-extinguishing	UL 94 V2
Rated voltage	300 AC/DC V
Max contact resistance	10 (20 dopo test ambientali) mΩ
cid	41MD02A

Images with
dimensions

Item Code	Section [mm²]	Section [AWG]	Ø insulant [mm]	Operating temperature	L1 [mm]	L2 [mm]	L3 [mm]	L4 [mm]	D1 [mm]	Tipo		Quantity per Wishlist
02230	0.5÷2.0		1.9 - 3.4	from -25 °C to 105 °C max	20,5	12,8	3,2	2,8	2	male	4000/4000
02240		(20-14)	1.9 - 3.4	from -25 °C to 105 °C max	20,5	12,8	3,2	2,8	1,9	female	4000/4000
