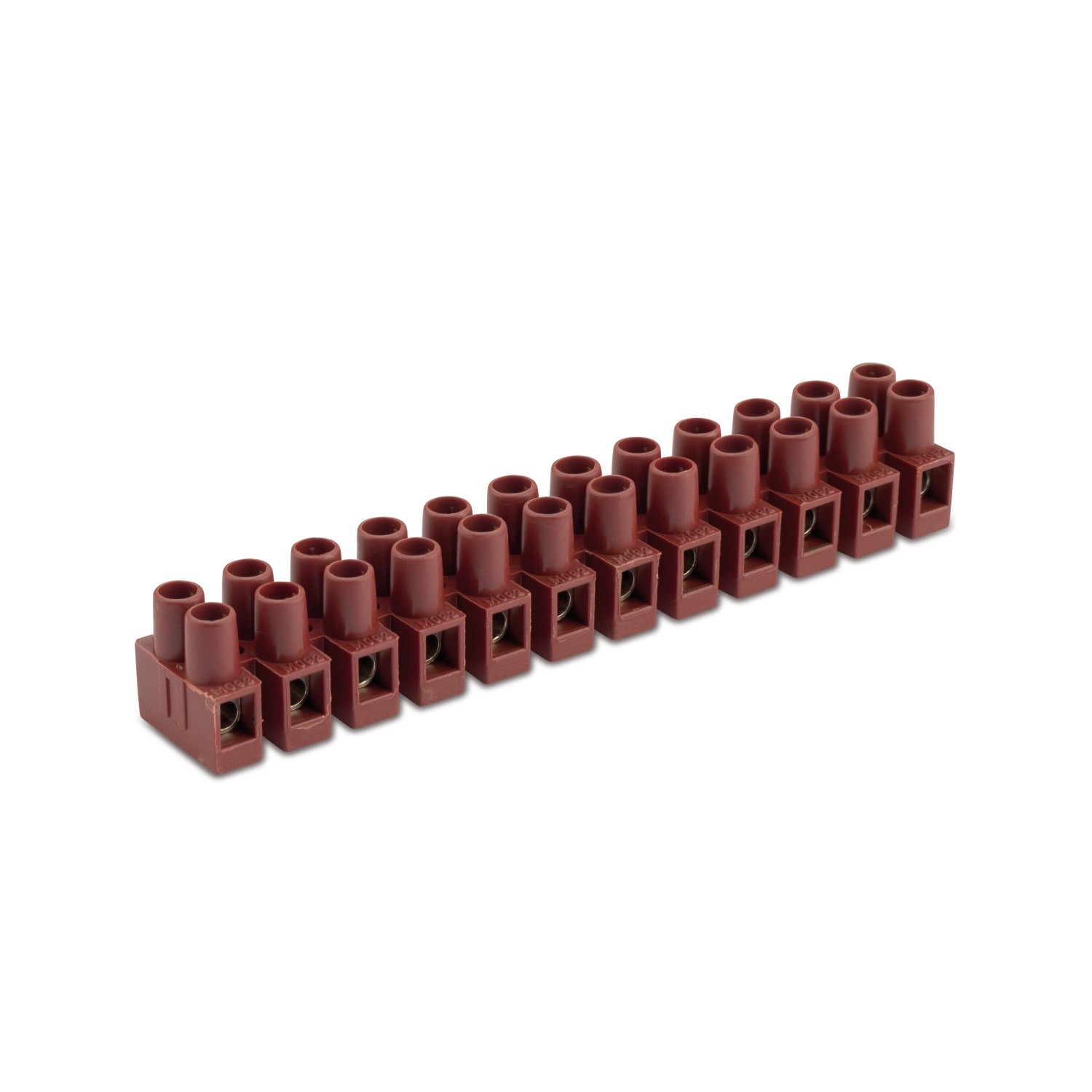

NYLON · FROM 1 TO 12 WAYS · M092 GF SERIES

cid 41MA03C

25% fiberglass

Product Category	multiway terminal blocks
Insulating housing	polyamide (PA 6.6) brown color and 25% fiberglass UL 94 V0
Conductive body	nickel-plated brass
Captive screw in	galvanized steel (M3)
Insulation self-extinguishing	EN 60669-1:1999+A1:2002+A2:2008, EN 60695-2-10 a 850 °C, EN 60695-2-11
Conductor type	rigid and flexible
Max short-time temperature	200 °C
Test voltage	2500 V
According to std.	EN 60998-1: 2004, EN 60998-2-1: 2004
cid	41MA03C

Image	Section [mm²]	Section [AWG]	Rated voltage [V]	Test current [A]	Max operating temperature [°C]	Torque [Nm]
	2,5	-	250	24	140	0,25
	-	20-16	600	10 (*)	110	0,5

* 25 A rated for Factory Wiring Only

Images with
dimensions

Item Code	Ways	Color	L1 [mm]	
M92GF	12	Brown	93,5 ± 1	50/50
92GF1	1	Brown	5,6 ± 1	Contact BM
92GF2	2	Brown	13,5 ± 1	Contact BM
92GF3	3	Brown	21,5 ± 1	Contact BM
92GF4	4	Brown	30 ± 1	Contact BM
92GF5	5	Brown	37,5 ± 1	Contact BM
92GF6	6	Brown	45,5 ± 1	Contact BM
92GF7	7	Brown	54 ± 1	Contact BM
92GF8	8	Brown	61,5 ± 1	Contact BM
92GF9	9	Brown	69,5 ± 1	Contact BM
92GF10	10	Brown	77,5 ± 1	Contact BM
92GF11	11	Brown	85,5 ± 1	Contact BM
