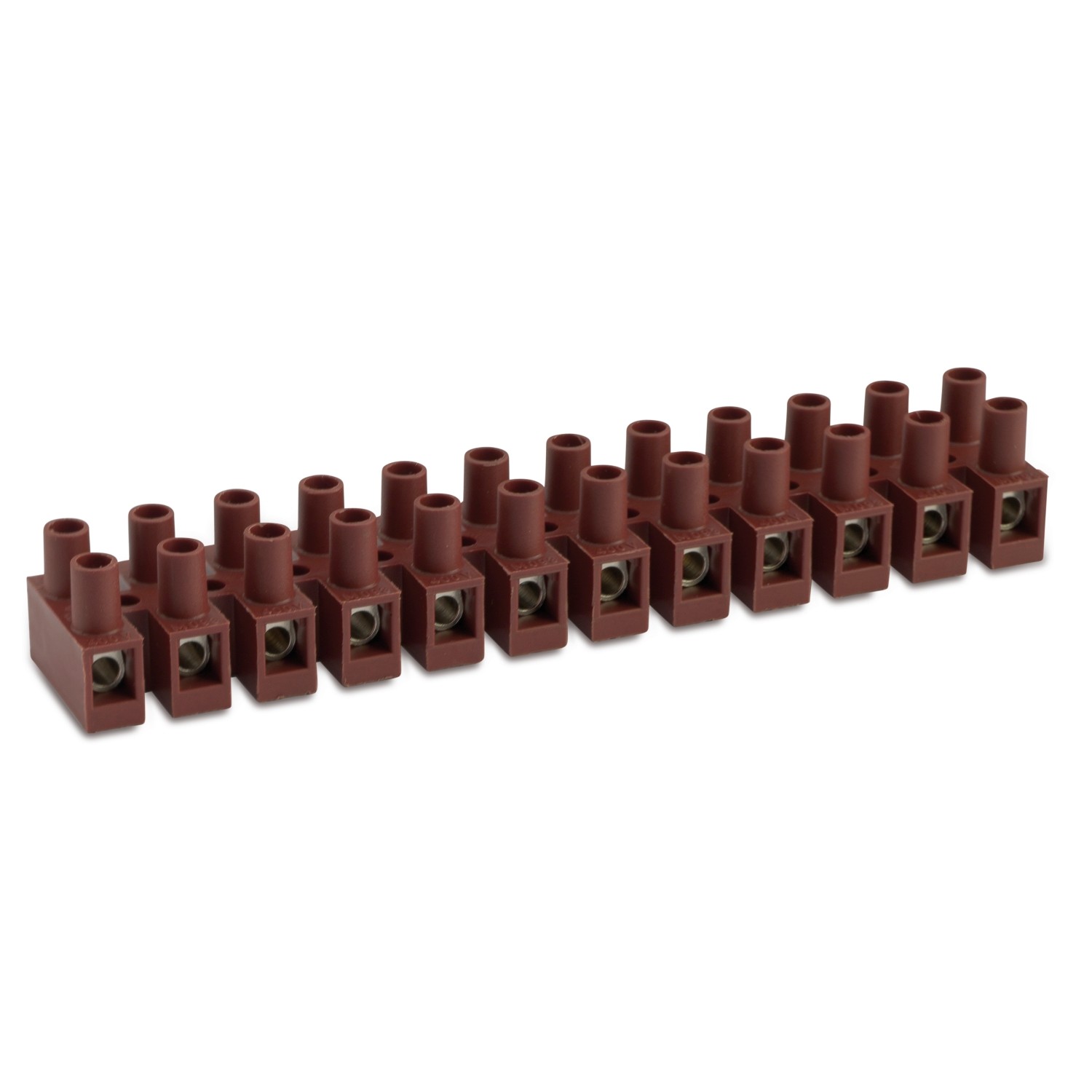

NYLON · FROM 1 TO 12 WAYS · M93 GF/CS SERIES

cid 41MA04D

25% fiberglass with wire protection

Product Category	multiway terminal blocks
Insulating housing	polyamide (PA 6.6) brown color and 25% fiberglass UL 94 V0
Conductive body	nickel-plated brass
Captive screw in	galvanized steel (M3)
wire protection	stainless steel
Insulation self-extinguishing	EN 60335-1: 2002+A2:2006 (par. 30.2.3), EN 60695-2-10 a 850 °C, EN 60695-2-11
Conductor type	rigid and flexible
Max short-time temperature	200 °C
Test voltage	2500 V
According to std.	EN 60998-1: 2004, EN 60998-2-1: 2004
cid	41MA04D

Image	Section [mm²]	Section [AWG]	Rated voltage [V]	Test current [A]	Max operating temperature [°C]	Torque [Nm]
	2.5	-	400	24	150	0,25
	-	18-12	600	20 (*)	110	0,5

* 25 A rated for Factory Wiring Only

Images with
dimensions

Item Code	Ways	Color	L1 [mm]	
93GFCS	12	Brown	117 ± 1	50/50
93FS1	1	Brown	6,7 ± 1	Contact BM
93FS2	2	Brown	16,7 ± 1	Contact BM
93FS3	3	Brown	26,6 ± 1	Contact BM
93FS4	4	Brown	36,6 ± 1	Contact BM
93FS5	5	Brown	46,6 ± 1	Contact BM
93FS6	6	Brown	56,6 ± 1	Contact BM
93FS7	7	Brown	67 ± 1	Contact BM
93FS8	8	Brown	77 ± 1	Contact BM
93FS9	9	Brown	87 ± 1	Contact BM
93FS10	10	Brown	97 ± 1	Contact BM
93FS11	11	Brown	107 ± 1	Contact BM
