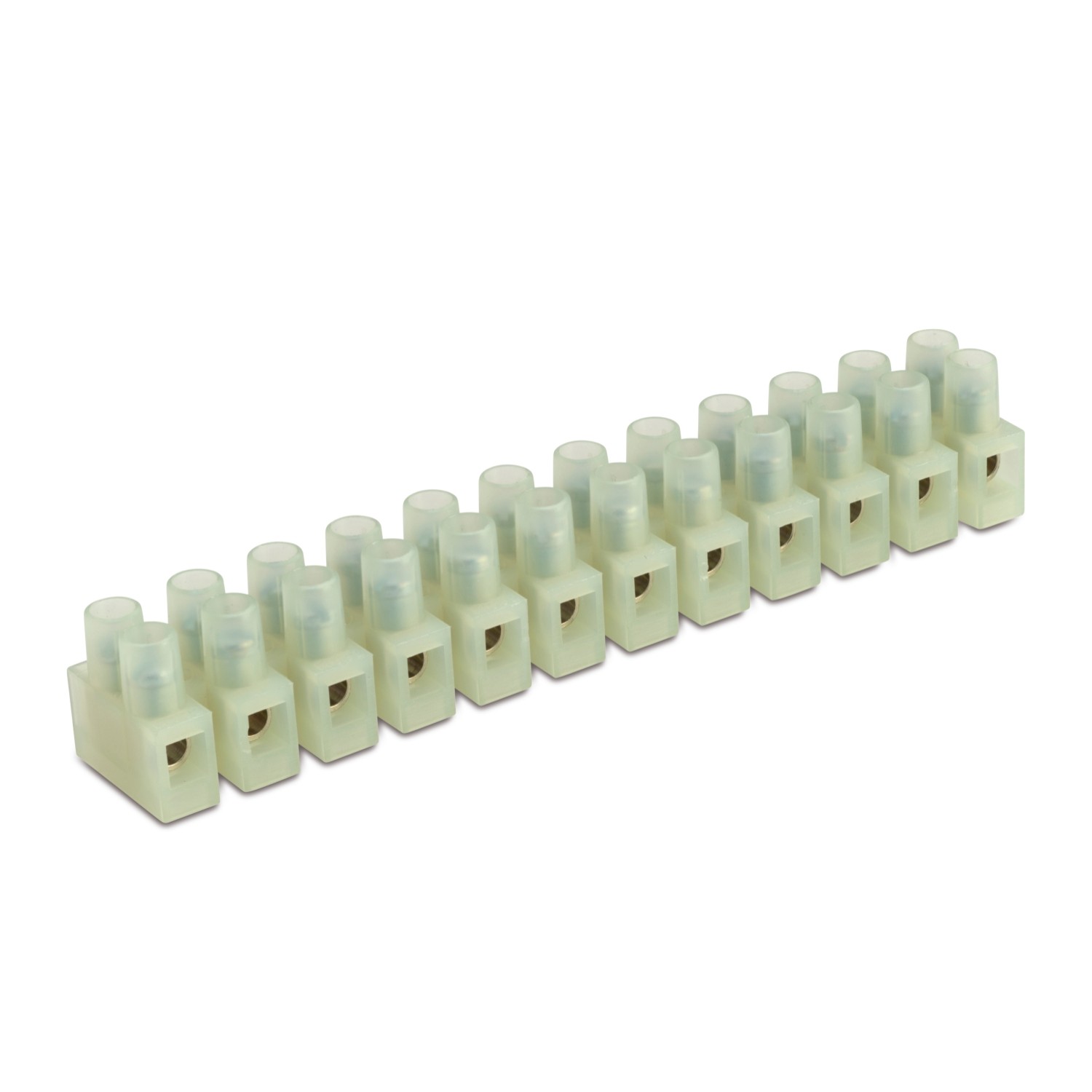

NYLON · FROM 1 TO 12 WAYS · M092 SERIES

cid 41MA03A

Product Category	multiway terminal blocks
Insulating housing	polyamide (PA 6.6) natural color UL 94 V2
Conductive body	nickel-plated brass
Captive screw in	galvanized steel (M3)
Insulation self-extinguishing	EN 60695-2-10 a 850 °C
Conductor type	rigid and flexible
Max short-time temperature	200 °C
Test voltage	2500 V
According to std.	EN 60998-1: 2004, EN 60998-2-1: 2004
cid	41MA03A

Image	Section [mm²]	Section [AWG]	Rated voltage [V]	Test current [A]	Max operating temperature [°C]	Torque [Nm]
	2,5	-	250/380	24	125	0,25
	-	20-16	600	10 (*)	105	0,5

* 25 A rated for Factory Wiring Only

Images with
dimensions

Item Code	Ways	Color	L1 [mm]	
M092	12	Natural	93,5 ± 1	50/700
92/1	1	Natural	5,6 ± 1	Contact BM
92/2	2	Natural	13,5 ± 1	Contact BM
92/3	3	Natural	21,5 ± 1	Contact BM
92/4	4	Natural	30 ± 1	Contact BM
92/5	5	Natural	37,5 ± 1	Contact BM
92/6	6	Natural	45,5 ± 1	Contact BM
92/7	7	Natural	54 ± 1	Contact BM
92/8	8	Natural	61,5 ± 1	Contact BM
92/9	9	Natural	69,5 ± 1	Contact BM
92/10	10	Natural	77,5 ± 1	Contact BM
92/11	11	Natural	85,5 ± 1	Contact BM
