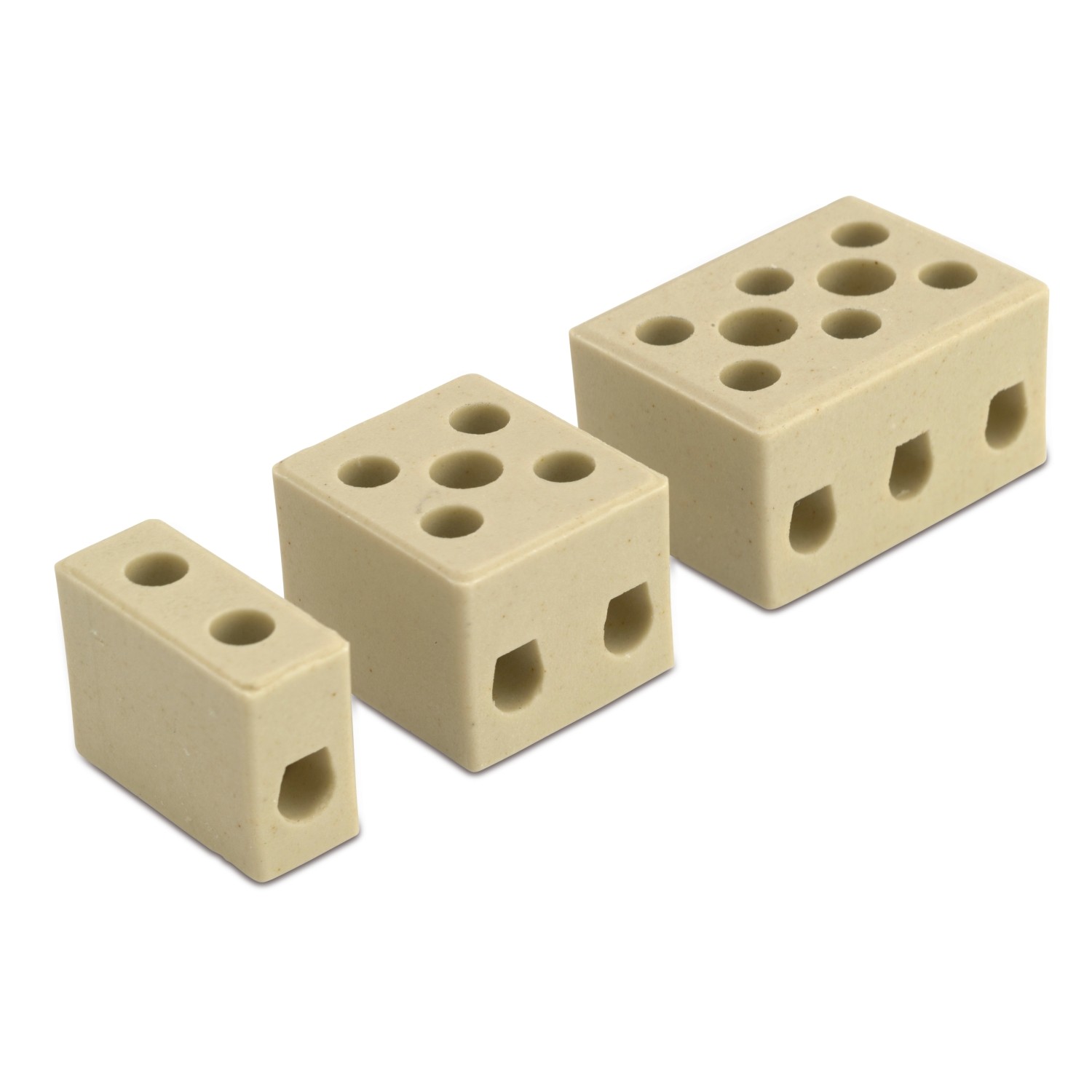

STEATITE · FROM 1 TO 3 WAYS FOR HIGH TEMPERATURE APPLICATIONS

Product was successfully added to your shopping cart.

STEATITE · FROM 1 TO 3 WAYS FOR HIGH TEMPERATURE APPLICATIONS

cid 41MA12A

Product Category	multiway terminal blocks
Insulating housing	steatite
Conductive body	brass
Captive screw in	galvanized steel
Conductor type	rigid and flexible
Mounting hole	through hole (no threaded)
Max operating temperature (metallic parts)	300 °C
Max operating temperature (insulating housing)	1000 °C
Protection grade	IP00
According to std.	EN 60998-1: 2004, EN 60998-2-1: 2004
cid	41MA12A

Images with
dimensions

Coded items

Item Code	Section [mm²]	Ways	Torque [Nm]	Screw	L1 [mm]	L2 [mm]	L3 [mm]	L4 [mm]	L5 [mm]	W1 [mm]	W2 [mm]	S1 [mm]	D1 [mm]	D2 [mm]		Quantity per Wishlist
9516	4	1	0,25	M3	10	11,5	11,5	11,5	11,5	25	10	18,5	3,1	4,5	117/117
9517	4	2	0,25	M3	22	11,5	11,5	11,5	11,5	25	10	18,5	3,1	4,5	54/54
9518	4	3	0,25	M3	34	11,5	11,5	11,5	11,5	25	10	18,5	3,1	4,5	36/36
9519	6	1	0,4	M3.5	11	12,5	11,5	11,5	11,5	26	10	20,5	4,2	4,5	117/117
9520	6	2	0,4	M3.5	24	12,5	11,5	11,5	11,5	26	10	20,5	4,2	4,5	54/54
9521	6	3	0,4	M3.5	37	12,5	11,5	11,5	11,5	26	10	20,5	4,2	4,5	36/36
9522	16	1	0,7	M4	15	14,5	11,5	11,5	11,5	32,5	13	23	6	4,5	54/54
9523	16	2	0,7	M4	30	14,5	11,5	11,5	11,5	32,5	13	23	6	4,5	27/27
9524	16	3	0,7	M4	45	14,5	11,5	11,5	11,5	32,5	13	23	6	4,5	18/18
