ONE-WAY · 5 INPUTS

cid 41MB04A
Previous

ONE-WAY · 4 INPUTS

Previous

ONE-WAY · 6 INPUTS

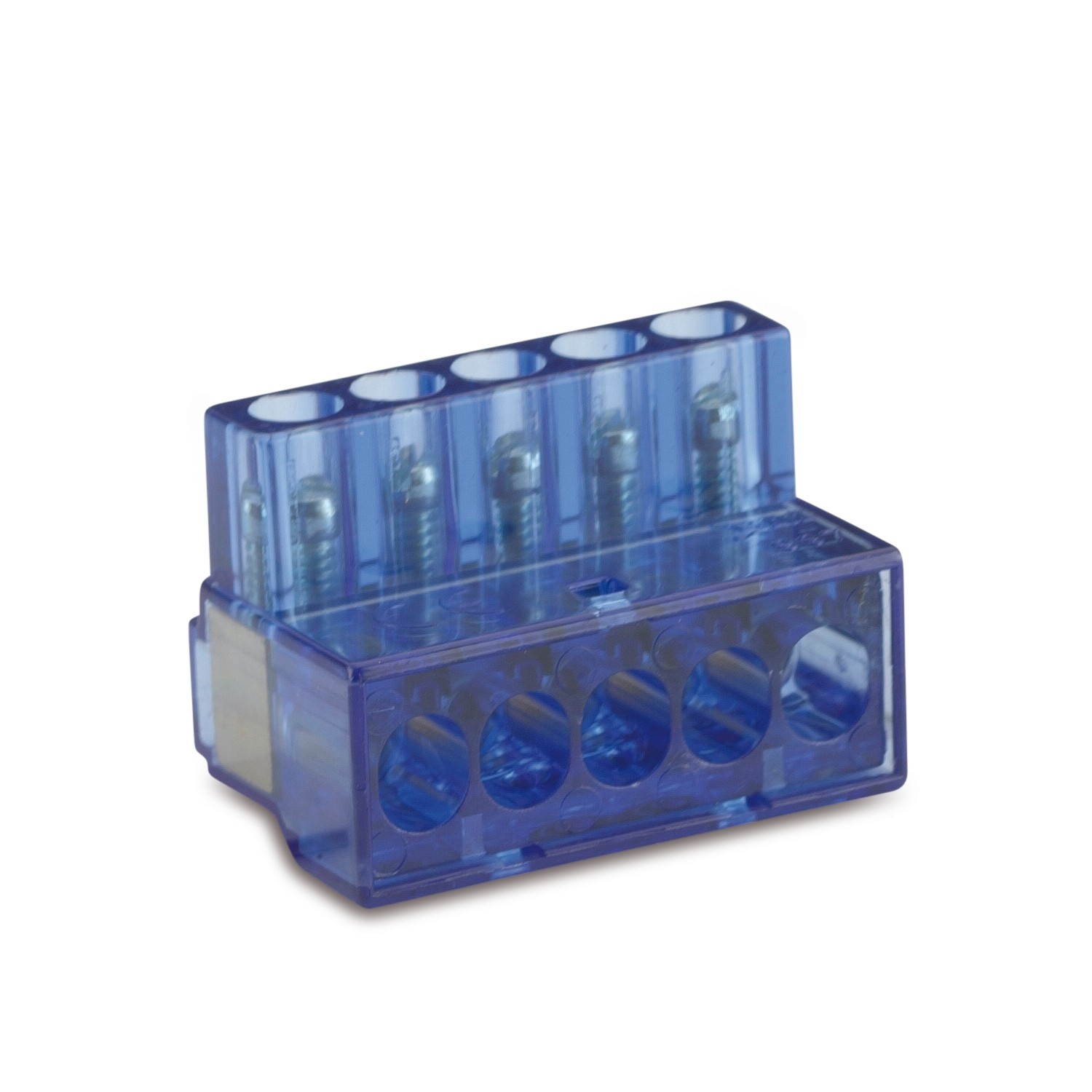

Unipolar terminal block with multiple inputs that can be fixed
on DIN 46277/1 and DIN 46277/3 rail
Product Categoryone-way terminal blocks
Insulating housingtransparent polycarbonate (PC) UL 94 V0
Conductive bodybrass
Captive screw ingalvanized steel
Insulation self-extinguishingEN 60335-1: 2002+A2:2006 (par. 30.2.3), EN 60695-2-10 a 850 °C, EN 60695-2-11
Conductor typerigid and flexible
Max operating temperature85 °C
According to std.EN 60998-1: 2004, EN 60998-2-1: 2004
cid41MB04A
PDF documents
Images with
dimensions
Item
Code		 Conductor section
[mm²]		wire protectionRated voltage
[V]		ScrewInputsStripping length
[mm]		 Quantity per
Wishlist
997 1 ÷ 6stainless steel450M451050/50
