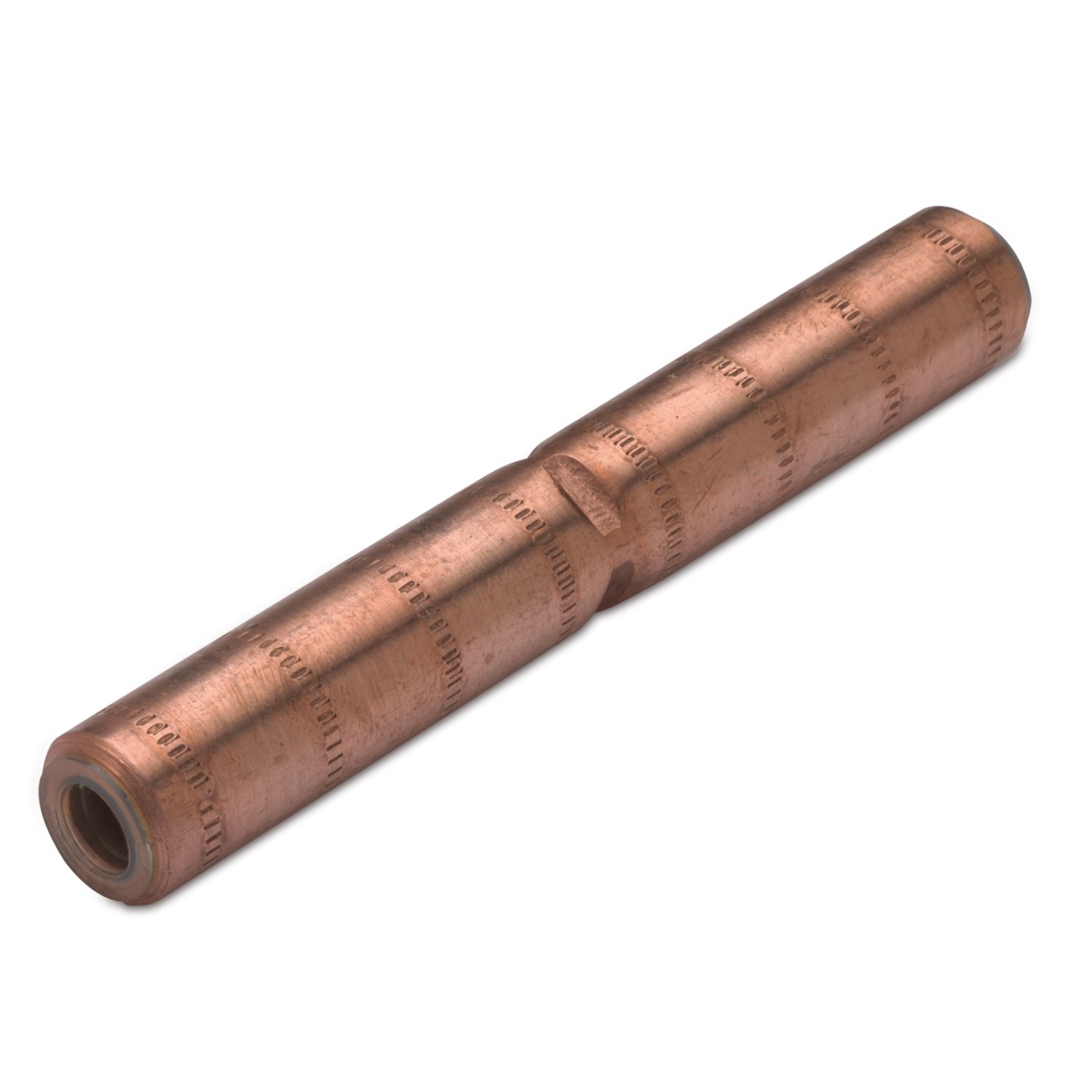

FULL TENSILE JOINTS FOR COPPER CONDUCTORS AND AERIAL LINES

cid 11TG04A

Product Category	joint
Terminal material	electrolytic copper
Characteristic	high mechanical resistance to traction
Application	connection of medium voltage aerial lines
cid	11TG04A

Images with
dimensions

Item Code	Section [mm²]	Section [AWG/MCM]	Wires [# Wires]	conductor external Ø [mm]	L1 [mm]	
75010	10	(8)	7 x 1.35	4.05	62	25/25
75016	16	(6)	1 x 4.5	4.5	78	10/10
75017	16	(6)	7 x 1.35	5.1	78	10/10
75025	25	(4)	7 x 2.14	6.42	91	10/10
75035	35	(2)	7 x 2.52	7.56	100	10/10
75050	50	(1/0)	7 x 3, 19 x 1.80	9	125	10/10
75070	63 ÷ 70	( - 2/0)	19 x 2, 19 x 2.14	10.5 - 10.70	125	10/10
75095	95	(3/0)	19 x 2.52	12.6	189	10/10
