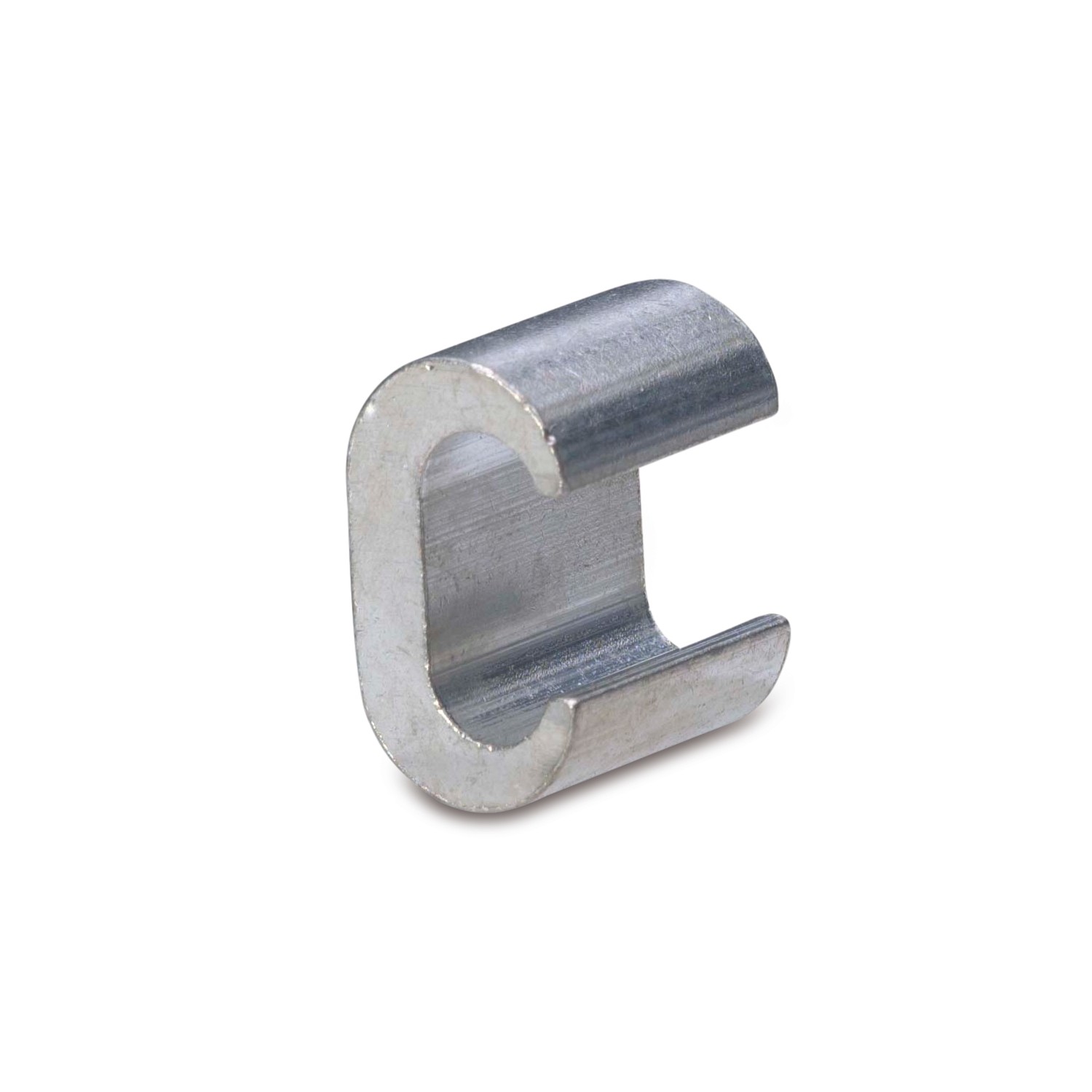

C SHUNT

cid 11TH01B

Product Category	C shunts
Terminal material	copper
Operating temperature	from -50 °C to +150 °C
Application	connectors for ground connections
cid	11TH01B

Images with
dimensions

Item Code	Section [mm²]	Section [AWG/MCM]	L1 [mm]	S1 [mm]	Straight T shunt Primary [mm²]	Straight T shunt Derivative [mm²]	Cross shunt Section [mm²]	
014001	10 ÷ 10	(8 - 8)	12	12,6	10	10 - 1.5		100/100
014011	16 ÷ 16	(6 - 6)	17,5	19,4	16	16 - 2.5		100/100
014021	25 ÷ 25	(4 - 4)	17,5	21,4	25	25 - 16		100/100
014031	35 ÷ 35	(2 - 2)	21,5	26,6	40 - 35	40 - 25	35 - 35	100/100
014041	50 ÷ 50	(1/0 - 1/0)	26,5	33	50	50 - 35		25/25
014051	70 ÷ 70	(2/0 - 2/0)	27	34	70 - 50	70 - 35	50 - 50	25/25
014061	95 ÷ 95	(3/0 - 3/0)	30	41	100 - 80	100 - 63		25/25
014071	120 ÷ 120	(4/0 - 4/0)	30	45	125 - 110	125 - 25		25/25
014081	25 ÷ 10	(4 - 8)	17	19,8	25 - 16	10 - 1.5		100/100
014091	35 ÷ 16	(2 - 6)	21,5	24,6	40 - 10	16 - 1.5	25 - 25	100/100
014101	50 ÷ 25	(1/0 - 4)	26,5	32,9	50	25 - 4		25/25
014111	70 ÷ 35	(2/0 - 2)	27	33	70 - 63	40 - 4		25/25
014121	95 ÷ 35	(3/0 - 2)	30	40,5	95 - 63	40 - 4		25/25
014131	95 ÷ 70	(3/0 - 2/0)	30	41	100 - 80	70 - 50	63 - 63, 70 - 70	25/25
014141	150 ÷ 120	(300 - 4/0)	31	45	160 - 150	125 - 25	95 - 95, 120 - 120	25/25
014151	185 ÷ 95	(400 - 3/0)	31	45	185	100 - 16	125 - 125	25/25
014161	6 ÷ 6	(10 - 10)	9	9,8	6 - 2.5	6 - 1.5		100/100
014171	150 ÷ 150	(300 - 300)	30	45,3	150	150 - 63		25/25
014181	185 ÷ 185	(400 - 400)	22,6	68	185 - 120	185 - 120		15/15
014211	240 ÷ 120	(500 - 4/0)	22,6	68	240 - 150	120 - 95		15/15
