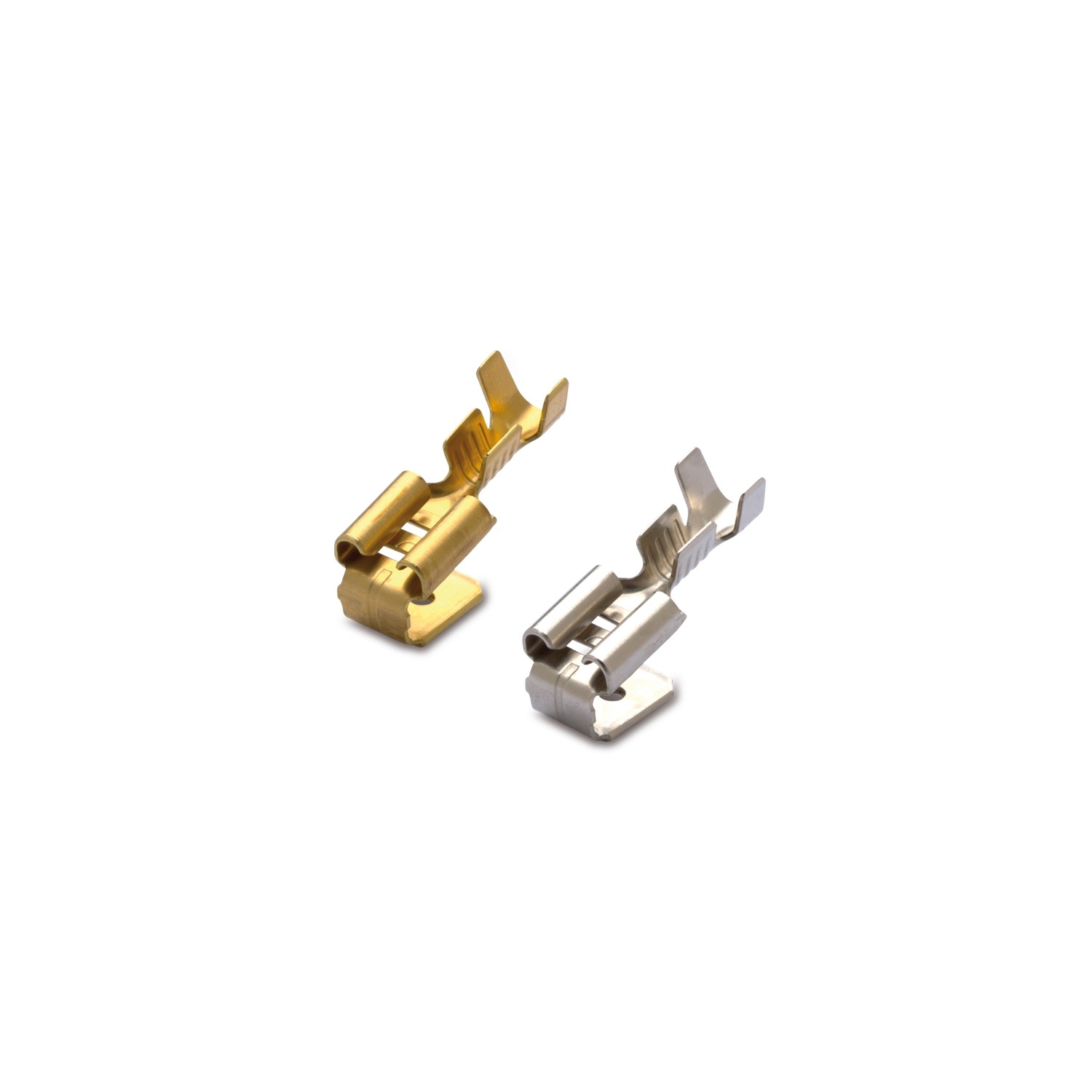

UNINSULATED · PIGGY-BACKS

cid 11TD01F

Images with
dimensions

Item Code	Material	Execution	Section [mm²]	Section [AWG/MCM]	CarTec 11 [mm]	CarTec 12 ["]	L1 [mm]	L2 [mm]	L3 [mm]	S1 [mm]	W1 [mm]	W2 [mm]	
01198	passivated brass	loose	0.5 ÷ 1	(20 - 18)	6.3 x 0.8	0.250x0.032	19,6	7,6	8	0,8	6,6	6,3	100/500
01199	tinned brass	loose	0.5 ÷ 1	(20 - 18)	6.3 x 0.8	0.250x0.032	19,6	7,6	8	0,8	6,6	6,3	100/500
01298	passivated brass	loose	1 ÷ 2.5	(18 - 14)	6.3 x 0.8	0.250x0.032	19,6	7,6	8	0,8	6,6	6,3	100/1000
01299	tinned brass	loose	1 ÷ 2.5	(18 - 14)	6.3 x 0.8	0.250x0.032	19,6	7,6	8	0,8	6,6	6,3	100/1000
02198	passivated brass	reel	0.5 ÷ 1	(20 - 18)	6.3 x 0.8	0.250x0.032	19,6	7,6	8	0,8	6,6	6,3	1000/1000
02199	tinned brass	reel	0.5 ÷ 1	(20 - 18)	6.3 x 0.8	0.250x0.032	19,6	7,6	8	0,8	6,6	6,3	1000/1000
02298	passivated brass	reel	1 ÷ 2.5	(18 - 14)	6.3 x 0.8	0.250x0.032	19,6	7,6	8	0,8	6,6	6,3	1000/1000
02299	tinned brass	reel	1 ÷ 2.5	(18 - 14)	6.3 x 0.8	0.250x0.032	19,6	7,6	8	0,8	6,6	6,3	1000/1000
