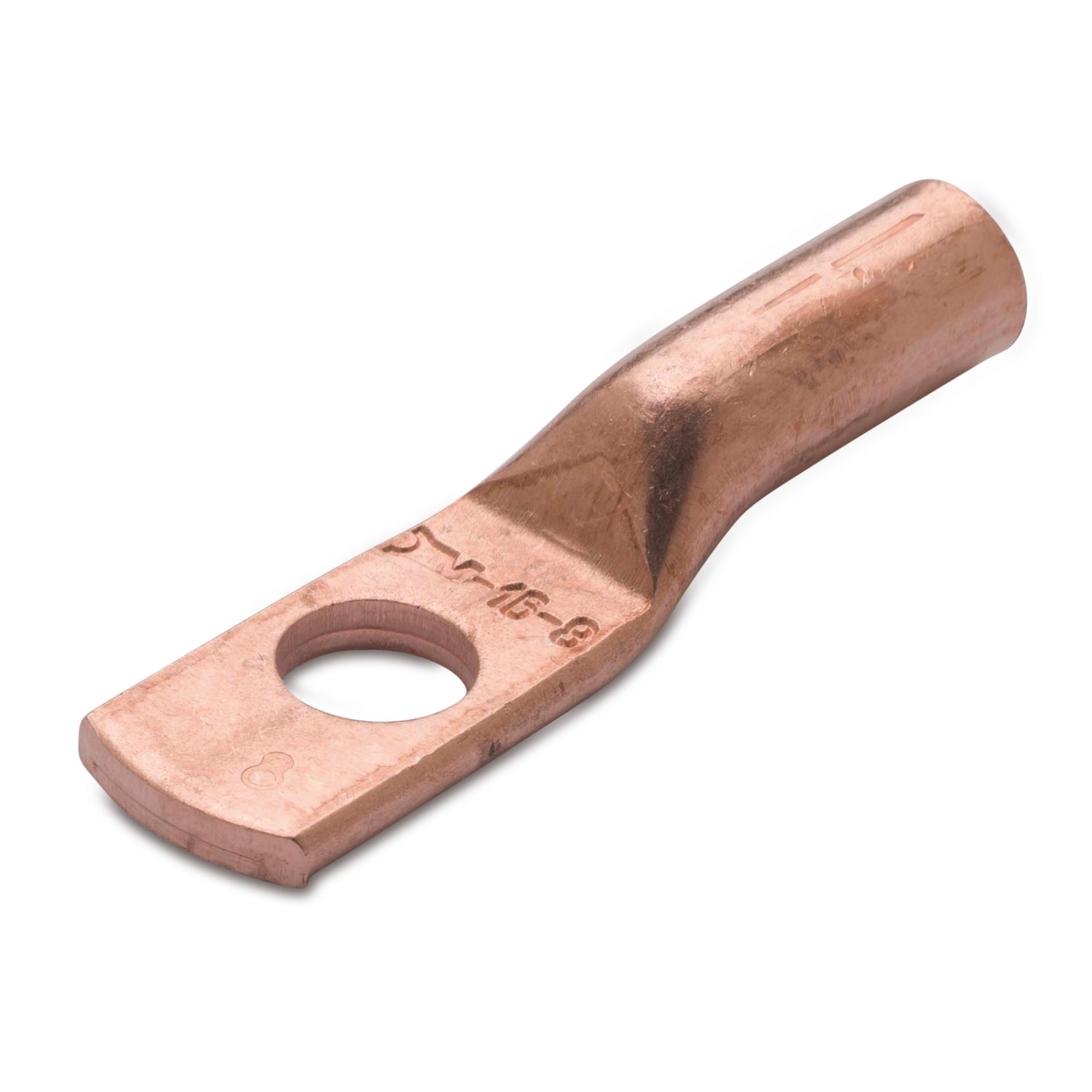

UNINSULATED COMPLIANT WITH DIN 46235 (L.V.) NOT TINNED COPPER

cid 11TA04H

UNINSULATED COMPLIANT WITH DIN 46235 (L.V.)

UNINSULATED WITH FORK (L.V.)

Product Category	terminal lungs
Terminal material	tinned copper
Operating temperature	from -50 °C to +150 °C
Dimensions	compliant to DIN 46235
According to std.	DIN 46235
Inspection hole	No
cid	11TA04H

Images with
dimensions

Coded items

Item Code	Section [mm²]	Section [AWG/MCM]	For screw Ø screw [mm]	For screw Stud size	Indent	W1 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	L4 [mm]	D1 [mm]	D2 [mm]	D3 [mm]	
804251	10	(8)	5	#10	6	9	36	10	6	9	6	4,5	5,3	100/100
804311	10	(8)	6	#12	6	9	36	10	8	10,5	6	4,5	6,4	100/100
805311	16	(6)	6	#12	8	13	49	20	8	10,5	8,5	5,5	6,4	100/100
805371	16	(6)	8	5/16"	8	13	49	20	10	13	8,5	5,5	8,4	100/100
805431	16	(6)	10	3/8"	8	17	53	20	12	15	8,5	5,5	10,5	100/100
806311	25	(4)	6	#12	10	14	48,5	20	8	10,5	10	7	6,4	100/100
806371	25	(4)	8	5/16"	10	16	51	20	10	13	10	7	8,4	100/100
806431	25	(4)	10	3/8"	10	17	53	20	12	15	10	7	10,5	100/100
806491	25	(4)	12	1/2"	10	19	54	20	13	16	10	7	13	100/100
807371	35	(2)	8	5/16"	12	17	55	20	10	13	12,5	8,5	8,4	100/100
807431	35	(2)	10	3/8"	12	19	57	20	12	15	12,5	8,5	10,5	100/100
807491	35	(2)	12	1/2"	12	21	58	20	13	16	12,5	8,5	13	100/100
808371	50	(1/0)	8	5/16"	14	20	65	28	10	13	14	10	8,4	50/50
808431	50	(1/0)	10	3/8"	14	22	67	28	12	15	14	10	10,5	50/50
808491	50	(1/0)	12	1/2"	14	24	68	28	13	16	14	10	13	50/50
808611	50	(1/0)	16	5/8"	14	28	71	28	16	19	14	10	17	50/50
809371	70	(2/0)	8	5/16"	16	24	68	28	10	13	16	11,5	8,4	50/50
809431	70	(2/0)	10	3/8"	16	24	70	28	12	15	16	11,5	10,5	50/50
809491	70	(2/0)	12	1/2"	16	24	71	28	13	16	16	11,5	13	50/50
809611	70	(2/0)	16	5/8"	16	30	74	28	16	19	16	11,5	17	50/50
831431	95	(3/0)	10	3/8"	18	28	80	35	12	15	19	13,8	10,5	25/25
831491	95	(3/0)	12	1/2"	18	28	81	35	13	16	19	13,8	13	25/25
831611	95	(3/0)	16	5/8"	18	32	84	35	16	19	19	13,8	17	25/25
832431	120	(4/0)	10	3/8"	20	32	85	35	12	15	21	15,5	10,5	25/25
832491	120	(4/0)	12	1/2"	20	32	86	35	13	16	21	15,5	13	25/25
832611	120	(4/0)	16	5/8"	20	32	89	35	16	19	21	15,5	17	25/25
832671	120	(4/0)	20	3/4"	20	38	92	35	20	22	21	15,5	21	25/25
833431	150	(300)	10	3/8"	22	34	93	35	12	15	23,5	17	10,5	25/25
833491	150	(300)	12	1/2"	22	34	94	35	13	16	23,5	17	13	25/25
833611	150	(300)	16	5/8"	22	34	97	35	16	19	23,5	17	17	25/25
833671	150	(300)	20	3/4"	22	40	100	35	20	22	23,5	17	21	25/25
834431	185	(400)	10	3/8"	25	37	97	40	12	15	25,5	19	10,5	10/10
834491	185	(400)	12	1/2"	25	37	98	40	13	16	25,5	19	13	10/10
834611	185	(400)	16	5/8"	25	37	101	40	16	19	25,5	19	17	10/10
834671	185	(400)	20	3/4"	25	40	104	40	20	22	25,5	19	21	10/10
835491	240	(500)	12	1/2"	28	42	107	40	13	16	29	21,5	13	10/10
835611	240	(500)	16	5/8"	28	42	108	40	16	19	29	21,5	17	10/10
835671	240	(500)	20	3/4"	28	45	111	40	20	22	29	21,5	21	10/10
