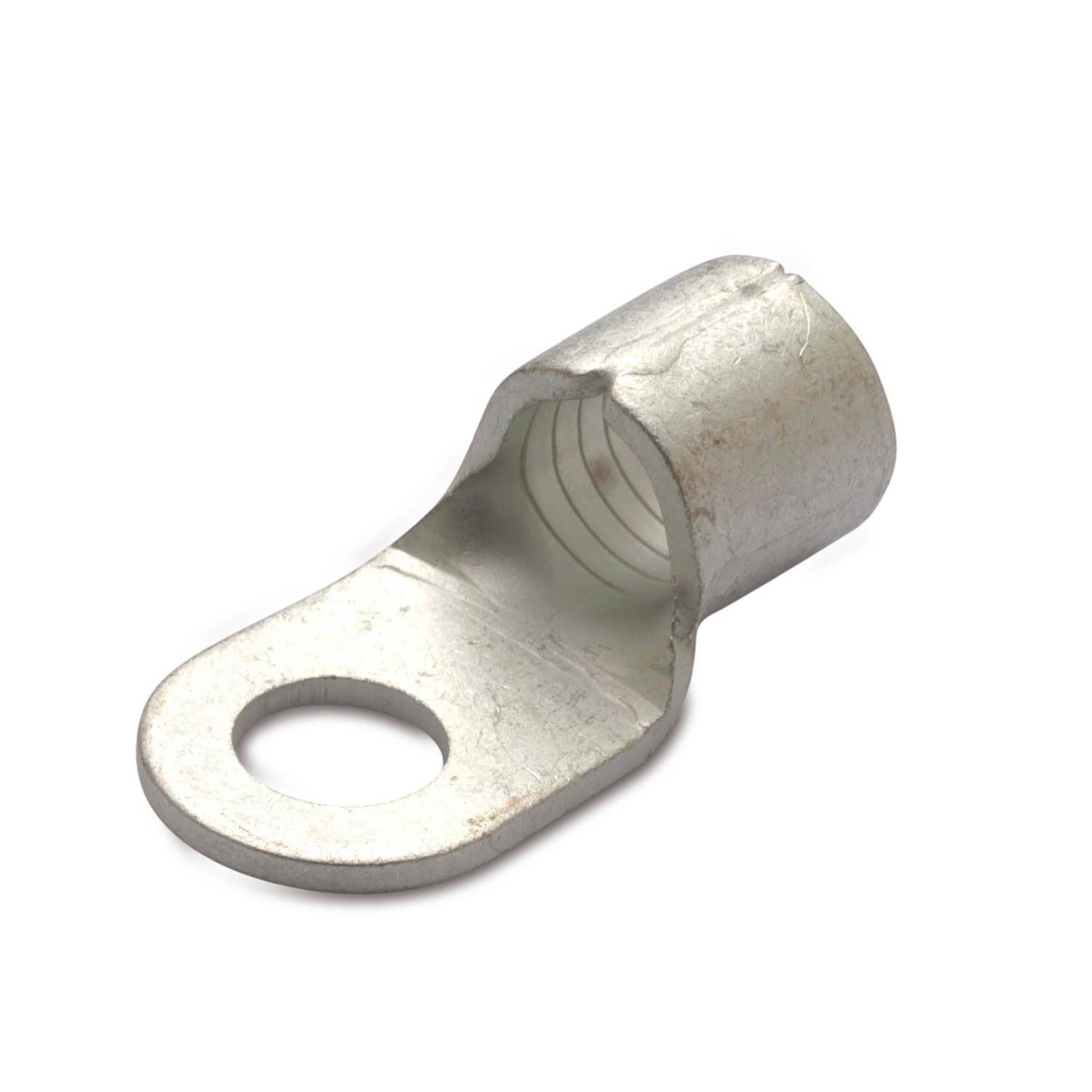

UNINSULATED WITH RING (SILVER ALLOY BRAZED DIN 46234) (L.V.)

cid 11TA02A

UNINSULATED FROM SHEET · PIN

NOT INSULATED FROM TUBE

Product Category	terminal lungs
Terminal material	tinned copper
Seam	brazed silver alloy
Operating temperature	from -50 °C to +150 °C
According to std.	DIN 46234
Inspection hole	No
cid	11TA02A

Images with
dimensions

Coded items

Item Code	Section [mm²]	Section [AWG/MCM]	For screw Ø screw [mm]	For screw Stud size	Indent	W1 [mm]	L1 [mm]	L2 [mm]	D1 [mm]	D2 [mm]	
02425	10	(8)	5	#10	6	10	16	8	4,5	5,3	100/500
02431	10	(8)	6	#12	6	11	17	8	4,5	6,4	100/500
02437	10	(8)	8	5/16"	6	14	20	8	4,5	8,4	100/500
02443	10	(8)	10	3/8"	6	18	21	8	4,5	10,5	100/500
02449	10	(8)	12	1/2"	6	22	23	8	4,5	13	100/500
02525	16	(6)	5	#10	8	11	20	10	5,8	5,3	100/500
02531	16	(6)	6	#12	8	11	20	10	5,8	6,4	100/500
02537	16	(6)	8	5/16"	8	14	22	10	5,8	8,4	100/500
02543	16	(6)	10	3/8"	8	18	24	10	5,8	10,5	100/500
02549	16	(6)	12	1/2"	8	22	26	10	5,8	13	100/500
02561	16	(6)	16	5/8"	8	32	36	10	5,8	17	100/500
02631	25	(4)	6	#12	10	12	25	11	7,5	6,4	100/200
02637	25	(4)	8	5/16"	10	16	25	11	7,5	8,4	100/200
02643	25	(4)	10	3/8"	10	18	26	11	7,5	10,5	100/200
02649	25	(4)	12	1/2"	10	22	31	11	7,5	13	100/200
02655	25	(4)	14	9/16"	10	30	37	11	7,5	15	100/200
02661	25	(4)	16	5/8"	10	28	35	11	7,5	17	100/200
02731	35	(2)	6	#12	12	15	26	12	9	6,5	100/200
02737	35	(2)	8	5/16"	12	16	26	12	9	8,4	100/200
02743	35	(2)	10	3/8"	12	18	27	12	9	10,5	100/200
02749	35	(2)	12	1/2"	12	22	31	12	9	13	100/200
02755	35	(2)	14	9/16"	12	28	36	12	9	15	100/200
02761	35	(2)	16	5/8"	12	28	36	12	9	17	100/200
02837	50	(1/0)	8	5/16"	14	18	34	16	11	8,4	100/100
02843	50	(1/0)	10	3/8"	14	18	34	16	11	10,5	100/100
02849	50	(1/0)	12	1/2"	14	22	36	16	11	13	100/100
02855	50	(1/0)	14	9/16"	14	28	40	16	11	15	100/100
02861	50	(1/0)	16	5/8"	14	28	40	16	11	17	100/100
02937	70	(2/0)	8	5/16"	16	22	38	18	13	8,4	50/50
02943	70	(2/0)	10	3/8"	16	22	38	18	13	10,5	50/50
02949	70	(2/0)	12	1/2"	16	22	38	18	13	13	50/50
02955	70	(2/0)	14	9/16"	16	28	42	18	13	15	50/50
04137	95	(3/0)	8	5/16"	18	24	42	20	15	8,4	50/50
04143	95	(3/0)	10	3/8"	18	24	42	20	15	10,5	50/50
04149	95	(3/0)	12	1/2"	18	24	42	20	15	13	50/50
04155	95	(3/0)	14	9/16"	18	28	44	20	15	15	50/50
04161	95	(3/0)	16	5/8"	18	28	44	20	15	17	50/50
04243	120	(4/0)	10	3/8"	20	24	44	22	16,5	10,5	25/25
04249	120	(4/0)	12	1/2"	20	24	44	22	16,5	13	25/25
04255	120	(4/0)	14	9/16"	20	28	48	22	16,5	15	25/25
04261	120	(4/0)	16	5/8"	20	28	48	22	16,5	17	25/25
04267	120	(4/0)	20	3/4"	20	32	53	22	16,5	21	25/25
04343	150	(300)	10	3/8"	22	30	50	24	19	10,5	25/25
04349	150	(300)	12	1/2"	22	30	50	24	19	13	25/25
04355	150	(300)	14	9/16"	22	30	50	24	19	15	10/10
04361	150	(300)	16	5/8"	22	30	50	24	19	17	25/25
04367	150	(300)	20	3/4"	22	36	63	24	19	21	10/10
