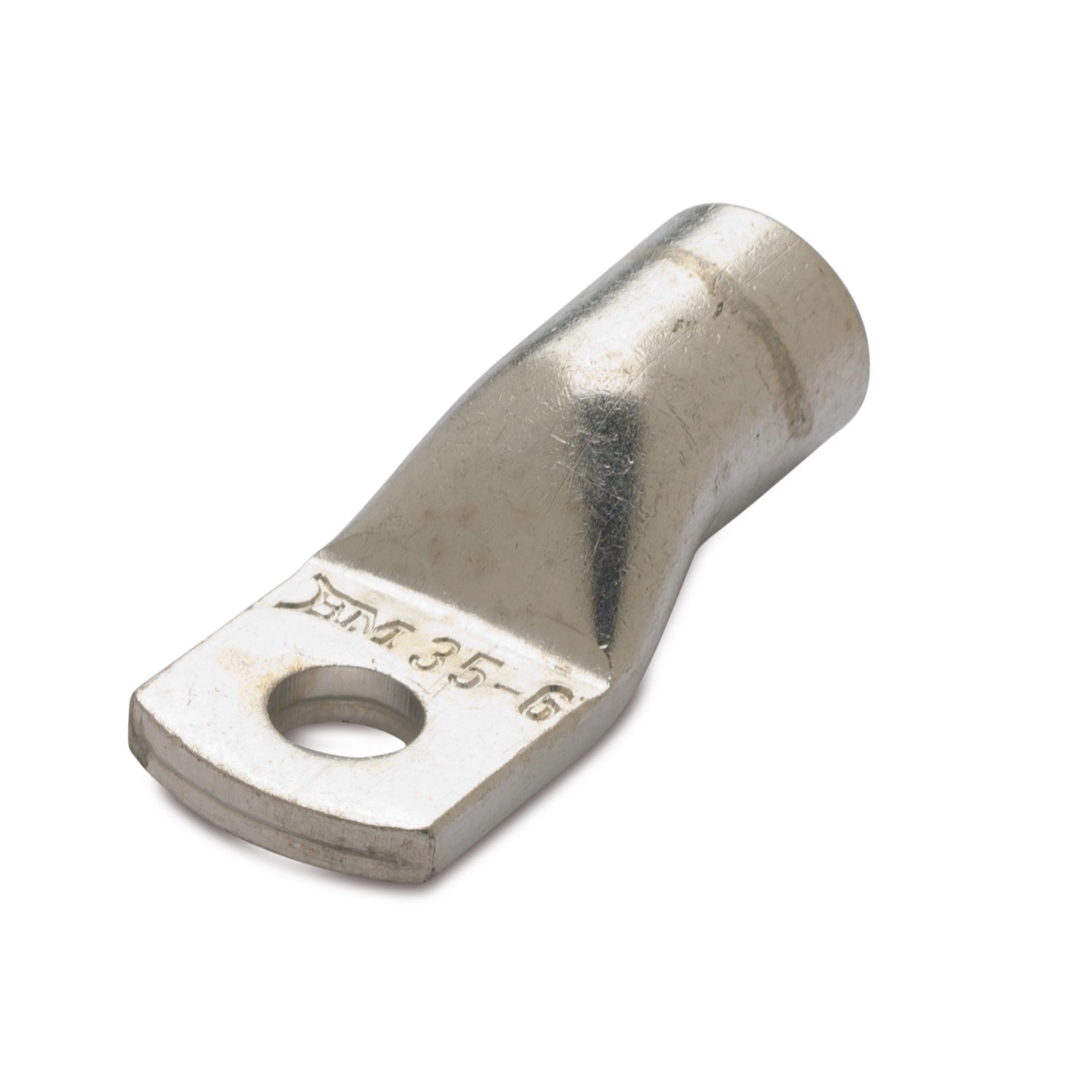

UNINSULATED WITH SMALL PLATE (L.V.)

cid 11TA04F

Product Category	terminal lungs
Terminal material	tinned copper
Operating temperature	from -50 °C to +150 °C
Applications	the reduced width of the palm allows connection to equipment with lugs of dimensions not suitable for standard terminals.
Inspection hole	No
cid	11TA04F

Images with
dimensions

Item Code	Section [mm²]	Section [AWG/MCM]	For screw Ø screw [mm]	For screw Stud size	Indent	W1 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	L4 [mm]	D1 [mm]	D2 [mm]	D3 [mm]	
017313	35	(2)	6	#12	11	15	39	16	8	7	11,5	8,5	6,5	25/25
018313	50	(1/0)	6	#12	12	15	41	18	8	7	13	10	6,5	25/25
018373	50	(1/0)	8	5/16"	12	18,5	51	18	13,5	9,5	13	10	10,5	25/25
018433	50	(1/0)	10	3/8"	12	18,5	51	18	13,5	9,5	13	10	10,5	25/25
019313 ●	70	(2/0)	6	#12	14	17	46	20	9,5	6,5	15	12	6,5	25/25
019433 ●	70	(2/0)	10	3/8"	14	19	52	21	13	10	15	12	10,5	25/25
031373 ●	95	(3/0)	8	5/16"	16	19	54	24	12	8	17	13,8	8,5	25/25
031433 ●	95	(3/0)	10	3/8"	16	19	58	22	13	10	17	13,8	10,5	25/25
032373	120	(4/0)	8	5/16"	18	19	61	22	12	9	19,5	15,5	8,5	25/25
032433	120	(4/0)	10	3/8"	18	19	61	22	12	9	19,5	15,5	10,5	25/25
033373	150	(300)	8	5/16"	20	19	70	30	17	9	21	17	8,4	25/25
033433	150	(300)	10	3/8"	20	19	70	30	17	9	21	17	10,5	25/25
034493	185	(400)	12	1/2"	22	31	82	32	17	14	24	19	13	25/25
035493	240	(500)	12	1/2"	25	31,5	90	39	17	14	27	21,5	13	25/25
