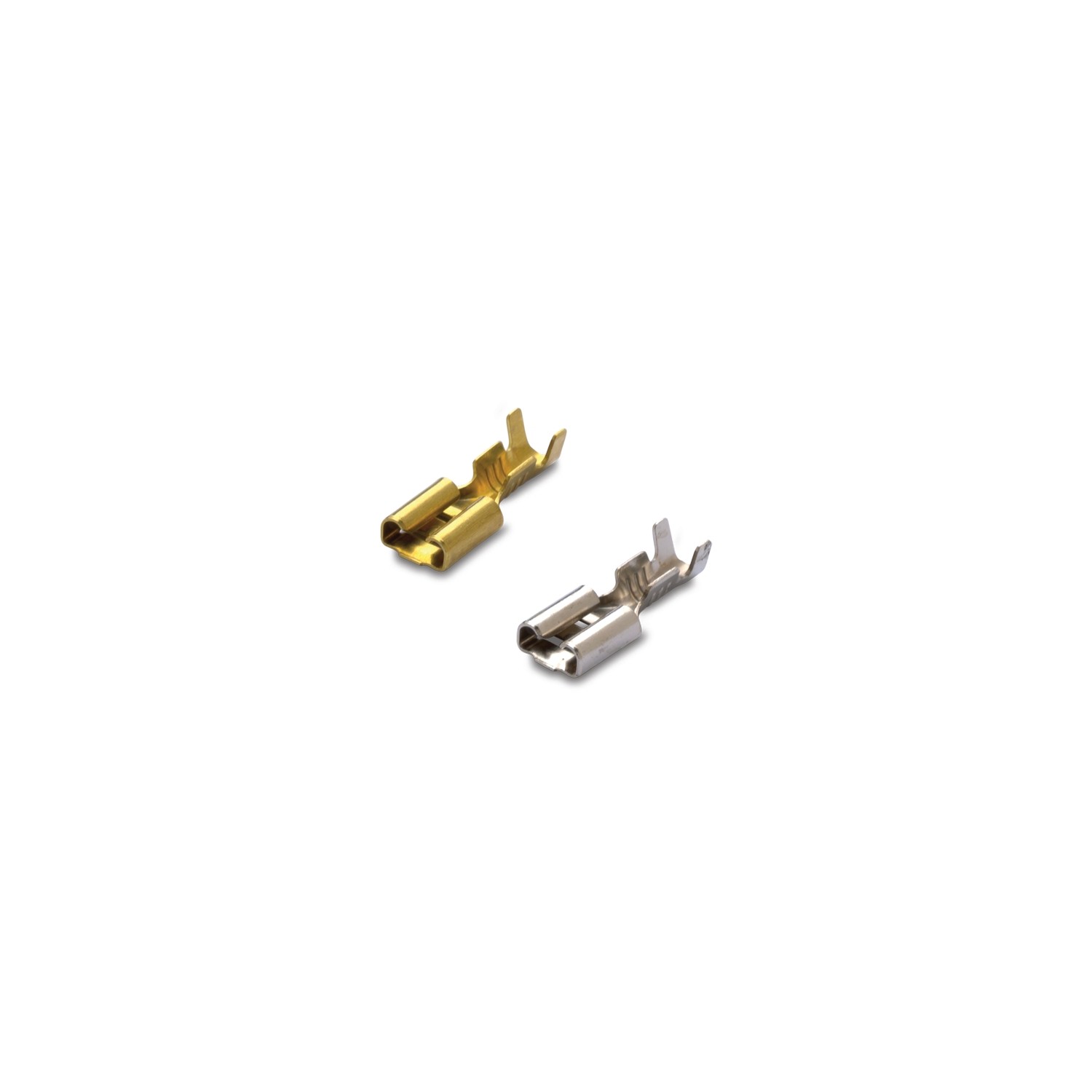

UNINSULATED · FEMALE

cid 11TD01A

Product Category	quick-connect terminals
Terminal material	tinned/passivated brass
According to std.	EN 61210: 2010-11
cid	11TD01A

Images with
dimensions

Coded items

Item Code	Material	Execution	Section [mm²]	Section [AWG/MCM]	CarTec 11 [mm]	CarTec 12 ["]	L1 [mm]	L2 [mm]	S1 [mm]	W1 [mm]		Quantity per Wishlist

Item Code	Material	Execution	Section [mm²]	Section [AWG/MCM]	CarTec 11 [mm]	CarTec 12 ["]	L1 [mm]	L2 [mm]	S1 [mm]	W1 [mm]	
01145	passivated brass	loose	0.5 ÷ 1	(20 - 18)	4.8 x 0.5	0.187x0.020	15,6	6,4	0,5	5,8	200/1000
01146	tinned brass	loose	0.5 ÷ 1	(20 - 18)	4.8 x 0.5	0.187x0.020	15,6	6,4	0,5	5,8	200/1000
01148	passivated brass	loose	0.5 ÷ 1	(20 - 18)	4.8 x 0.8	0.187x0.032	15,6	6,4	0,8	5,8	200/1000
01149	tinned brass	loose	0.5 ÷ 1	(20 - 18)	4.8 x 0.8	0.187x0.032	15,6	6,4	0,8	5,8	200/1000
01190	passivated brass	loose	0.5 ÷ 1	(20 - 18)	6.3 x 0.8	0.250x0.032	19,2	7,6	0,8	7,6	200/1000
01191	tinned brass	loose	0.5 ÷ 1	(20 - 18)	6.3 x 0.8	0.250x0.032	19,2	7,6	0,8	7,6	200/1000
01290	passivated brass	loose	1 ÷ 2.5	(18 - 14)	6.3 x 0.8	0.250x0.032	19,2	7,6	0,8	7,6	100/1000
01291	tinned brass	loose	1 ÷ 2.5	(18 - 14)	6.3 x 0.8	0.250x0.032	19,2	7,6	0,8	7,6	100/1000
01390	passivated brass	loose	0.5 ÷ 1	(20 - 18)	2.8 x 0.8	0.110x0.032	14,5	6,2	0,8	3,7	200/1000
01391	tinned brass	loose	0.5 ÷ 1	(20 - 18)	2.8 x 0.8	0.110x0.032	14,5	6,2	0,8	3,7	200/1000
01395	passivated brass	loose	0.5 ÷ 1	(20 - 18)	2.8 x 0.5	0.110x0.020	14,5	6,2	0,5	3,7	200/1000
01396	tinned brass	loose	0.5 ÷ 1	(20 - 18)	2.8 x 0.5	0.110x0.020	14,5	6,2	0,5	3,7	200/1000
02145	passivated brass	reel	0.5 ÷ 1	(20 - 18)	4.8 x 0.5	0.187x0.020	15,6	6,4	0,5	5,8	8000/8000
02146	tinned brass	reel	0.5 ÷ 1	(20 - 18)	4.8 x 0.5	0.187x0.020	15,6	6,4	0,5	5,8	8000/8000
02148	passivated brass	reel	0.5 ÷ 1	(20 - 18)	4.8 x 0.8	0.187x0.032	15,6	6,4	0,8	5,8	8000/8000
02149	tinned brass	reel	0.5 ÷ 1	(20 - 18)	4.8 x 0.8	0.187x0.032	15,6	6,4	0,8	5,8	8000/8000
02190	passivated brass	reel	0.5 ÷ 1	(20 - 18)	6.3 x 0.8	0.250x0.032	19,2	7,6	0,8	7,6	7000/7000
02191	tinned brass	reel	0.5 ÷ 1	(20 - 18)	6.3 x 0.8	0.250x0.032	19,2	7,6	0,8	7,6	7000/7000
02290	passivated brass	reel	1 ÷ 2.5	(18 - 14)	6.3 x 0.8	0.250x0.032	19,2	7,6	0,8	7,6	6500/6500
02291	tinned brass	reel	1 ÷ 2.5	(18 - 14)	6.3 x 0.8	0.250x0.032	19,2	7,6	0,8	7,6	6500/6500
02390	passivated brass	reel	0.5 ÷ 1	(20 - 18)	2.8 x 0.8	0.110x0.032	14,5	6,2	0,8	3,7	15000/15000
02391	tinned brass	reel	0.5 ÷ 1	(20 - 18)	2.8 x 0.8	0.110x0.032	14,5	6,2	0,8	3,7	15000/15000
02395	passivated brass	reel	0.5 ÷ 1	(20 - 18)	2.8 x 0.5	0.110x0.020	14,5	6,2	0,5	3,7	15000/15000
02396	tinned brass	reel	0.5 ÷ 1	(20 - 18)	2.8 x 0.5	0.110x0.020	14,5	6,2	0,5	3,7	15000/15000
