IP65 ACCESSORIES FOR SPIRAL CONDUITS · SWIVEL FITTING · METRIC THREAD · RGM/RGMN

cid 75RD01A

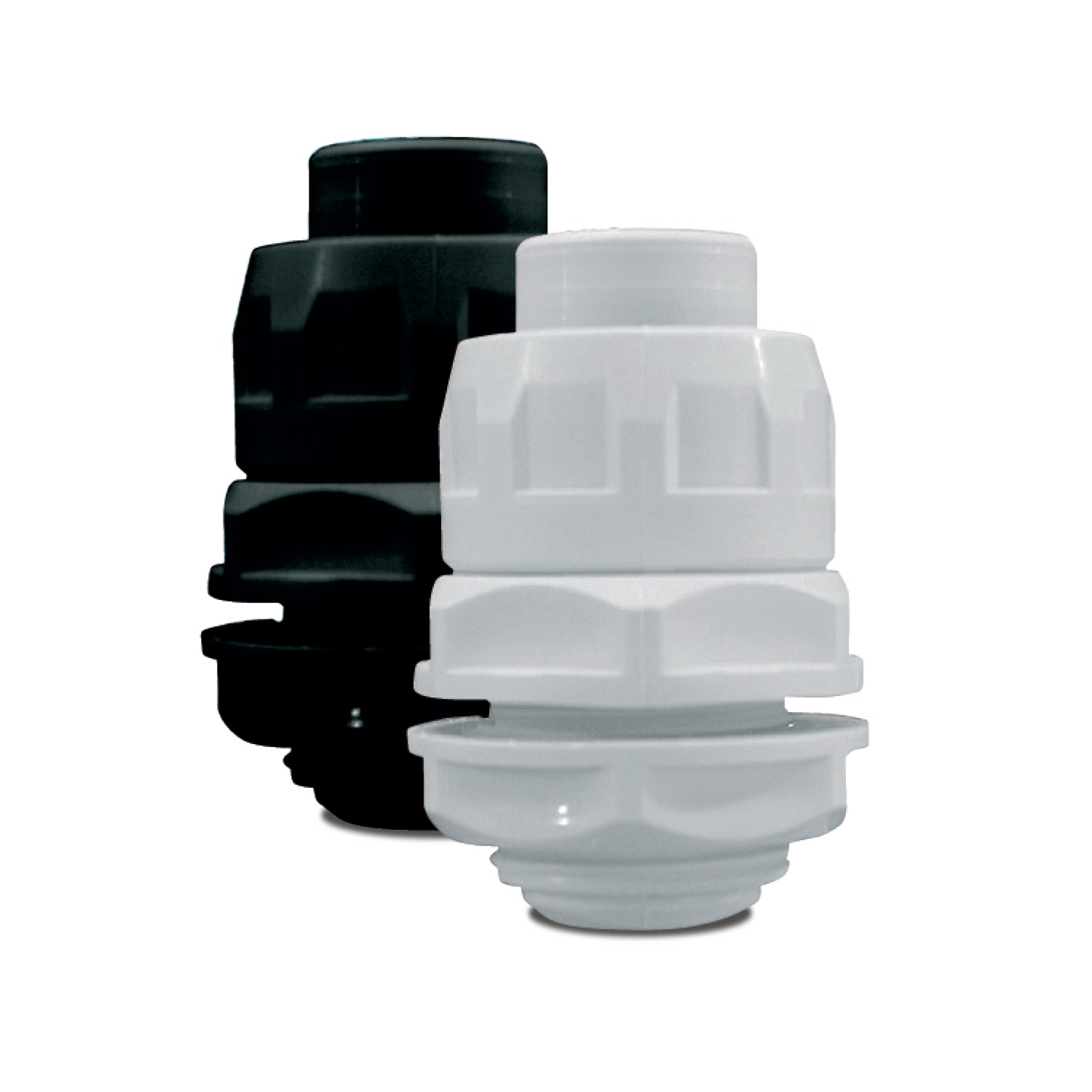

Swivel straight fitting for spiral conduits.
Supplied with metric thread fixing nut.

Product Category	conduit fixings accessories for spiral conduits
Material	fireproof polypropylene
Pitch	metric
Resistance to shock	class 3 (>2 kg from 10 cm at -5 °C)
Min. temperature	class 2 (-5 °C)
Max. temperature	class 1 (+60°C)
Resistance to fire	self-extinguishing
Glow wire test	pass at 850 °C
Protection grade	IP65
Standard	EN 61386-1, EN 61386-23
cid	75RD01A

Item Code	Color	Sheathing diameter [mm]	Metric thread [EN 60423]	
TP5RGM10	Grey RAL 7035	10	M 12 x 1.5	10/150
TP5RGM12	Grey RAL 7035	12	M 16 x 1.5	10/150
TP5RGM16	Grey RAL 7035	16	M 20 x 1.5	10/100
TP5RGM20	Grey RAL 7035	20	M 25 x 1.5	10/70
TP5RGM25	Grey RAL 7035	25	M 32 x 1.5	10/40
TP5RGM32	Grey RAL 7035	32	M 40 x 1.5	5/25
TP5RGM40	Grey RAL 7035	40	M 50 x 1.5	5/20
TP5RGM50	Grey RAL 7035	50	M 63 x 1.5	5/15
TP5RGMN10	Black RAL 9005	10	M 12 x 1.5	10/150
TP5RGMN12	Black RAL 9005	12	M 16 x 1.5	10/150
TP5RGMN16	Black RAL 9005	16	M 20 x 1.5	10/100
TP5RGMN20	Black RAL 9005	20	M 25 x 1.5	10/70
TP5RGMN25	Black RAL 9005	25	M 32 x 1.5	10/40
TP5RGMN32	Black RAL 9005	32	M 40 x 1.5	5/25
TP5RGMN40	Black RAL 9005	40	M 50 x 1.5	5/20
TP5RGMN50	Black RAL 9005	50	M 63 x 1.5	5/15
