IP65 ACCESSORIES FOR SPIRAL CONDUITS · SWIVEL FITTING · PG THREAD · RGP/RGPN

cid 75RD02A

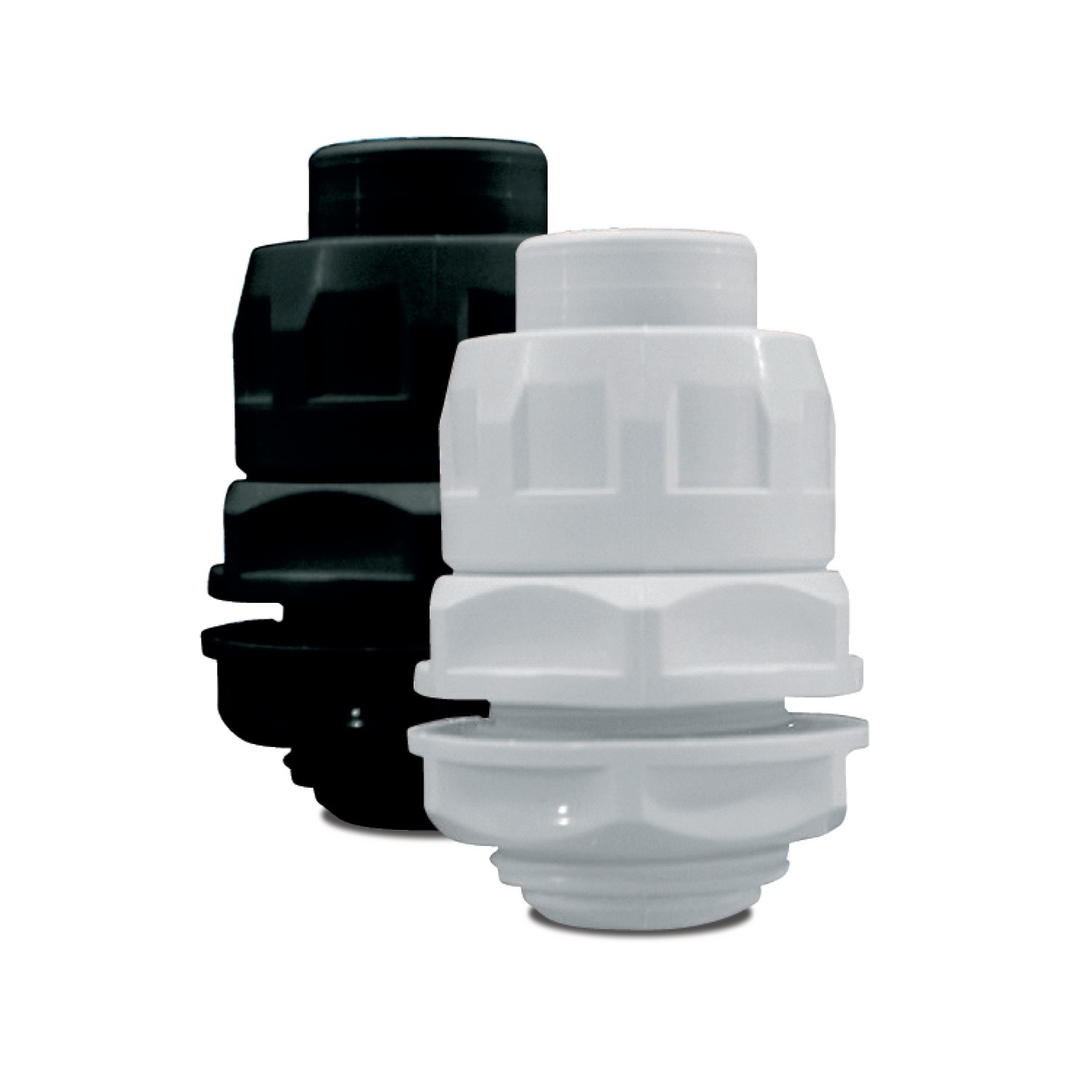

Swivel straight fitting for spiral conduits.
Supplied with PG thread fixing nut.

Product Category	conduit fixings accessories for spiral conduits
Material	fireproof polypropylene
Pitch	PG
Resistance to shock	class 3 (>2 kg from 10 cm at -5 °C)
Min. temperature	class 2 (-5 °C)
Max. temperature	class 1 (+60°C)
Resistance to fire	self-extinguishing
Glow wire test	pass at 850 °C
Protection grade	IP65
Standard	EN 61386-1, EN 61386-23
cid	75RD02A

Item Code	Color	Sheathing diameter [mm]	PG thread [DIN 40430]	
TP5RGP10	Grey RAL 7035	10	PG 9	10/160
TP5RGP12	Grey RAL 7035	12	PG 11	10/160
TP5RGP12/13	Grey RAL 7035	12	PG 13.5	10/160
TP5RGP14	Grey RAL 7035	14	PG 13.5	10/100
TP5RGP16	Grey RAL 7035	16	PG 11	10/100
TP5RGP16/13	Grey RAL 7035	16	PG 13.5	10/100
TP5RGP16/16	Grey RAL 7035	16	PG 16	10/100
TP5RGP20	Grey RAL 7035	20	PG 21	10/70
TP5RGP22	Grey RAL 7035	22	PG 21	10/60
TP5RGP25	Grey RAL 7035	25	PG 29	10/50
TP5RGP28	Grey RAL 7035	28	PG 29	10/40
TP5RGP32	Grey RAL 7035	32	PG 36	5/20
TP5RGP35	Grey RAL 7035	35	PG 36	5/20
TP5RGPN10	Black RAL 9005	10	PG 9	10/160
TP5RGPN12	Black RAL 9005	12	PG 11	10/160
TP5RGPN12/13	Black RAL 9005	12	PG 13.5	10/160
TP5RGPN14	Black RAL 9005	14	PG 13.5	10/100
TP5RGPN16	Black RAL 9005	16	PG 11	10/100
TP5RGPN16/13	Black RAL 9005	16	PG 13.5	10/100
TP5RGPN16/16	Black RAL 9005	16	PG 16	10/100
TP5RGPN20	Black RAL 9005	20	PG 21	10/70
TP5RGPN22	Black RAL 9005	22	PG 21	10/60
TP5RGPN25	Black RAL 9005	25	PG 29	10/50
TP5RGPN28	Black RAL 9005	28	PG 29	10/40
TP5RGPN32	Black RAL 9005	32	PG 36	5/20
TP5RGPN35	Black RAL 9005	35	PG 36	5/20
