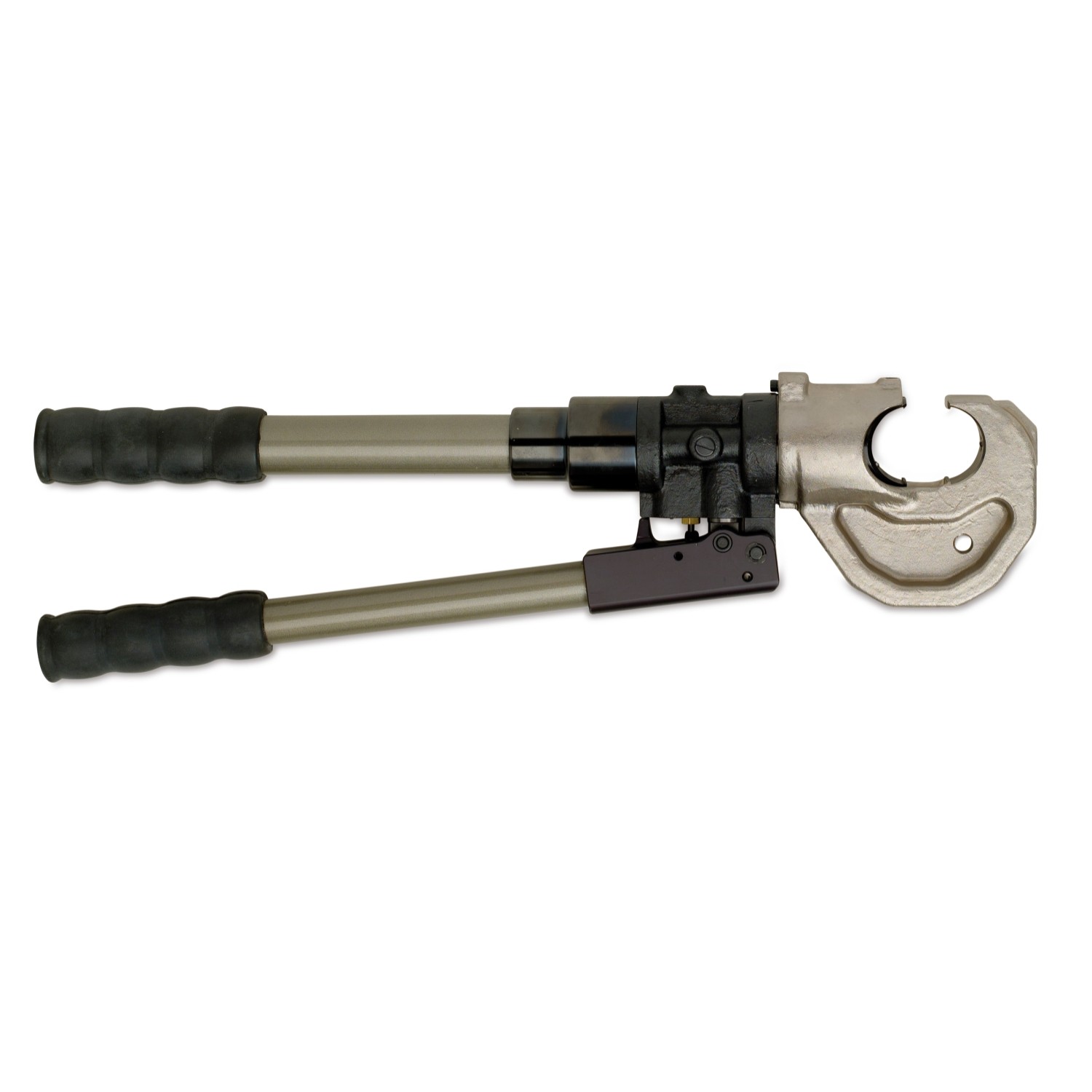

• ”C” opening (max opening 23 mm) for easy joint crimping (the maximum conductor section depends on cable insulation thickness)
• 180° swivel head for easy crimping in narrow places
• two piston advancement speeds: one for quickly matching die and terminal, the other for crimping
• automatic end-of-work release device to guarantee crimping quality
• release device activated by a rotation of the handle to open the tool at the end of operation and in case of a wrong maneuver
| Product Category | hydraulic crimping tool |
| Crimping force at die level | 125 kN |
| Dies | 84 series |
| Field of use | terminals
• uninsulated from 10 to 400 mm² (300 mm² for DIN)
• uninsulated class 5 from 10 to 185 mm²
• medium voltage from 25 to 400 mm²
• aluminum from 16 to 240 mm²
• bimetallic from 16 to 240 mm²
• bimetallic DIN from 16 to 240 mm²
• insulated from 10 to 240 mm²
• C shunt from 10 to 150 mm²
• end-sleeve from 50 to 150 mm² |
| Hydraulic oil | 150 cc Shell T12 |
| cid | 31AA11C |
