HYDRAULIC · MANUAL · 80 kN

cid 31AA11B

HYDRAULIC · MANUAL · 50 kN

HYDRAULIC · MANUAL · 125 kN

• pivot opening
• 180° swivel head for easy crimping in narrow places
• two piston advancement speeds: one for quickly matching die and terminal, the other for crimping
• automatic end-of-work release device to guarantee the crimping quality
• release device activated by a rotation of the handle to open the tool at the end of operation and in case of a wrong maneuver

Product Category	hydraulic crimping tool
Crimping force at die level	80 kN
Dies	83 series
Field of use	terminals • uninsulated and DIN from 10 to 240 mm² (180 mm² for DIN) • uninsulated class 5 from 10 to 185 mm² • medium voltage from 25 to 240 mm² • aluminum from 16 to 185 mm² • bimetallic from 16 to 150 mm² • bimetallic DIN from 16 to 185 mm² • insulated from 10 to 95 mm² • C shunt from 10 to 95 mm² • end-sleeve from 50 to 150 mm²
Hydraulic oil	150 cc Shell T15
cid	31AA11B

Coded items

Item Code	Description	Length [mm]	Width [mm]	Thickness [mm]	Weight [kg]	Pack size LxWxH [mm]		Quantity per Wishlist

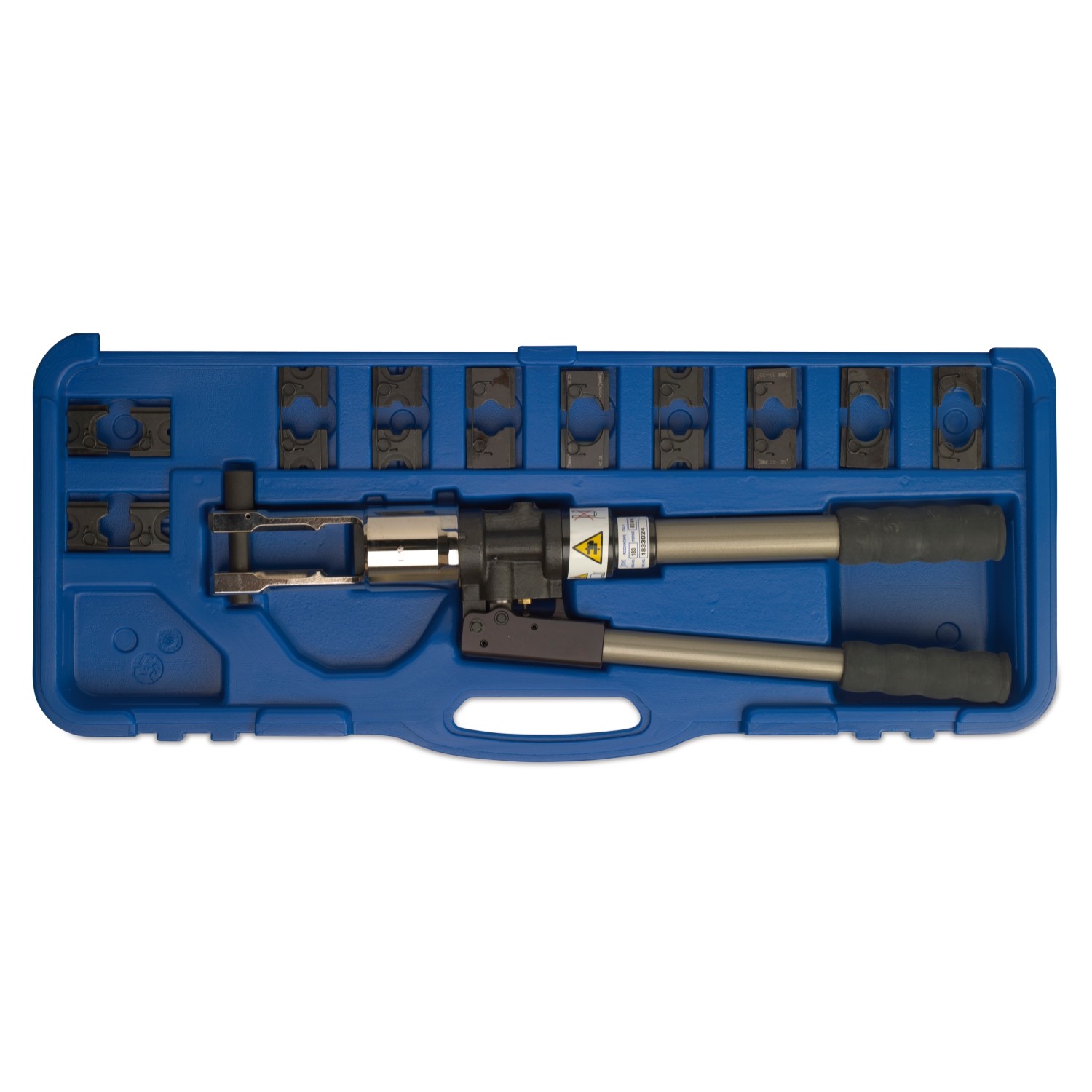

183	kit including • 80 kN press • die set for uninsulated terminals from 10 to 240 mm² • die set for C shunts from 16 to 95 mm² • carrying case	590	130	70	5,4	780x320x130	VA

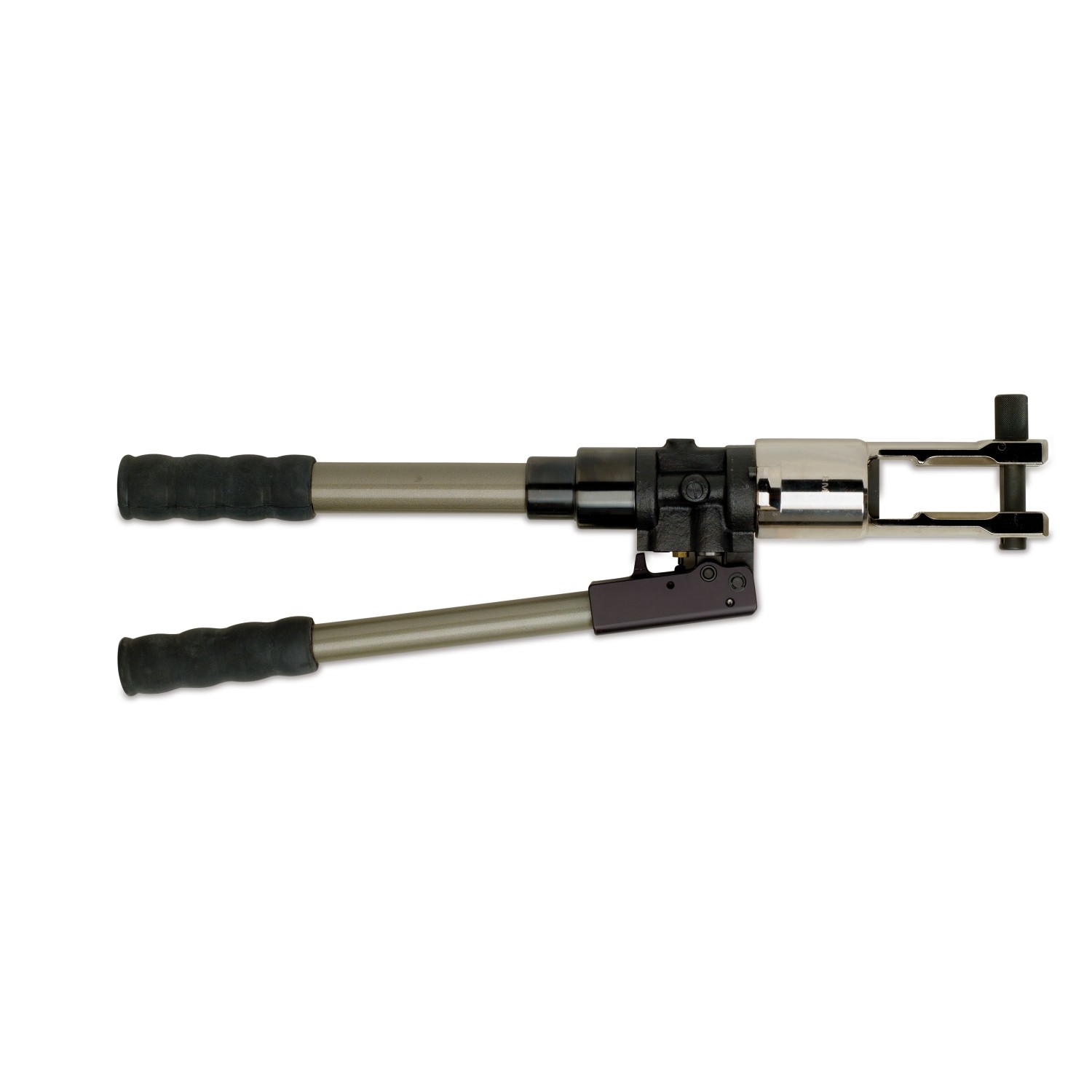

183P	80 kN hand hydraulic press with carrying case	590	130	70	5,4	780x320x130	VA

For mechanics, industrial maintenance and car repair professionals as well as for anybody whose hobby is much more than just a diversion.
