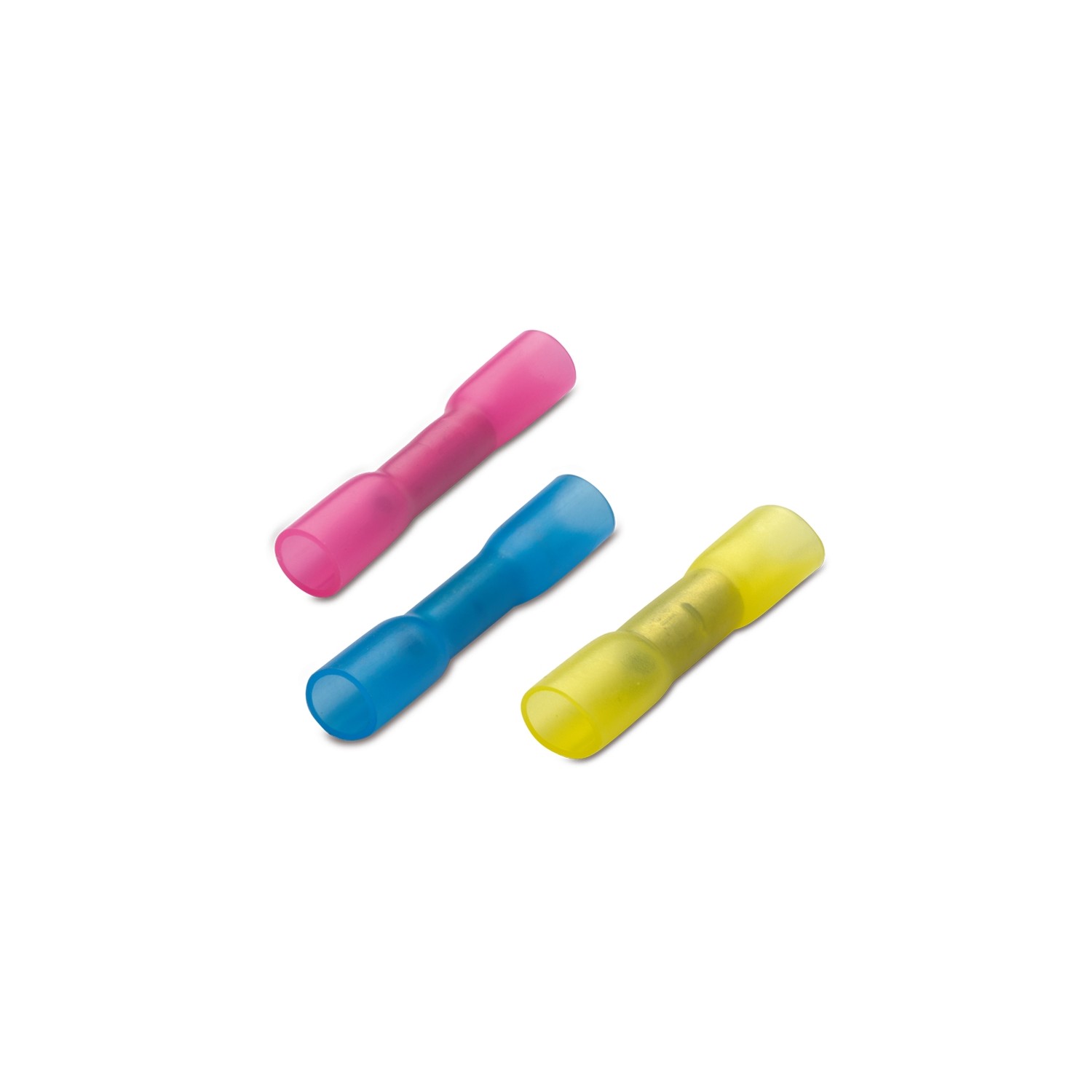

BUTT CONNECTORS WITH HEAT SHRINKING INSULATION

cid 11TF02D

Product Category	butt connectors
Terminal material	tinned copper
Insulation material	thermo-shrinkable with sealing adhesive
Dielectric strength	12kV/mm – IEC 243
Operating temperature	from -55 °C to +105 °C
Shrinking temp	150 °C
Tipo	with central flush for a right insertion of the conductor.
How to assemble	use heat air gun 1108
cid	11TF02D

Images with
dimensions

Item Code	Color	Section [mm²]	Section [AWG/MCM]	L1 [mm]	L2 [mm]	D1 [mm]	D2 [mm]	
90160	Red	0.5 ÷ 1.5	(20 - 16)	35	15	4,5	1,8	100/1000
90260	Blue	1.5 ÷ 2.5	(16 - 14)	37	15	5,5	2,5	100/1000
90360	Yellow	4 ÷ 6	(12 - 10)	41	15	6,5	3,7	50/500
