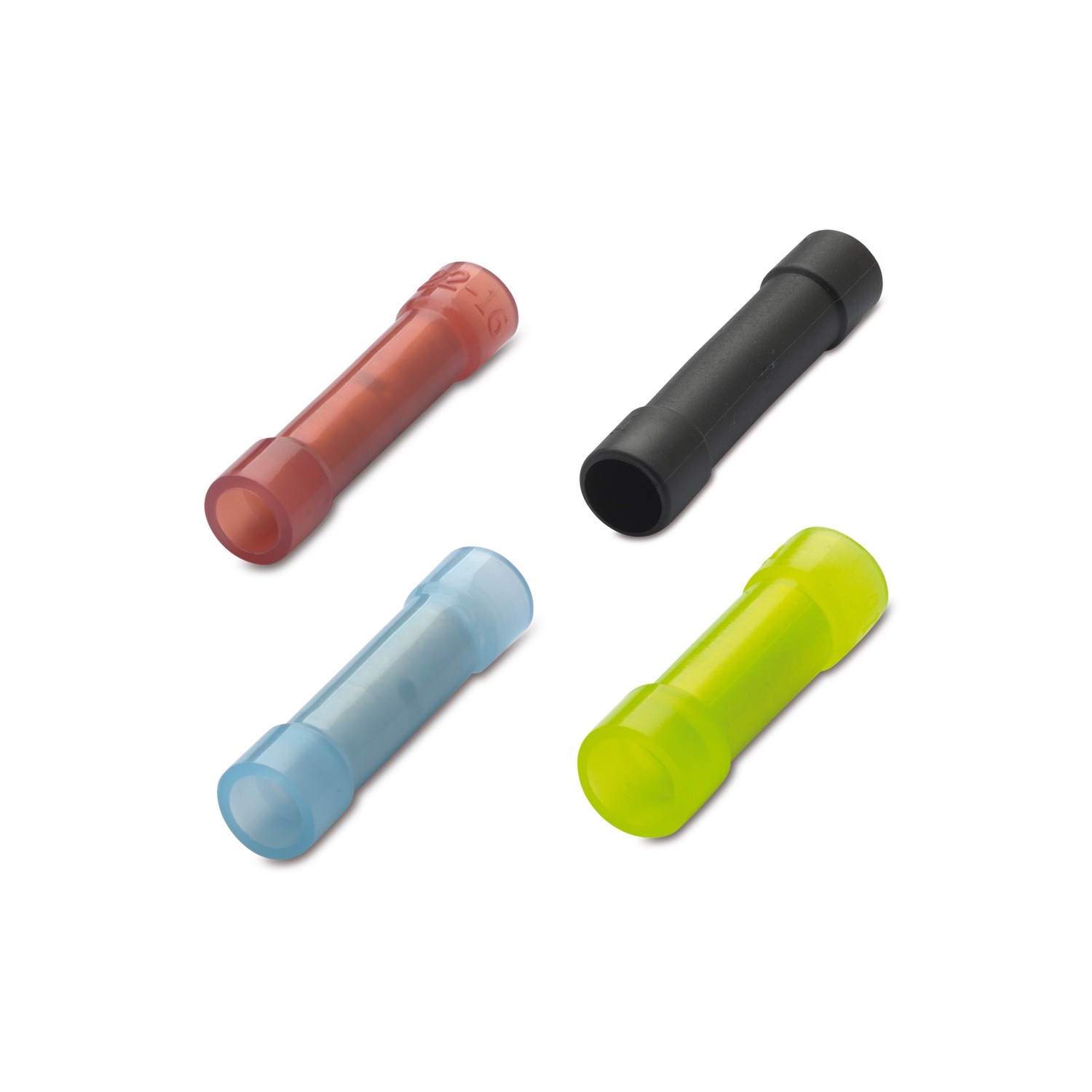

NYLON INSULATED BUTT CONNECTORS

cid 11TF02C

Product Category	butt connectors
Terminal material	tinned copper
Insulation material	polyamide (PA6.6)
insulation self-extinguishing grade	UL 94 V2
Operating temperature	105 °C max
Max rated voltage	300 V
Tipo	with central flush for a right insertion of the conductor.
cid	11TF02C

Images with
dimensions

Item Code	Color	Section [mm²]	Section [AWG/MCM]	L1 [mm]	L2 [mm]	D1 [mm]	D2 [mm]	
80160*	Red	0.25 ÷ 1.5	(22 - 16)	26	15	4,2	1,8	100/100
80260*	Blue	1.5 ÷ 2.5	(16 - 14)	26	15	4,8	2,5	100/100
80360*	Yellow	4 ÷ 6	(12 - 10)	27	15	6,5	3,7	50/500
80460	Black	10	(8)	43	26	8,2	4,8	100/100
80560	Black	16	(6)	46	29	9	6	100/100
80660	Black	25	(4)	46	29	11,5	7	100/100
