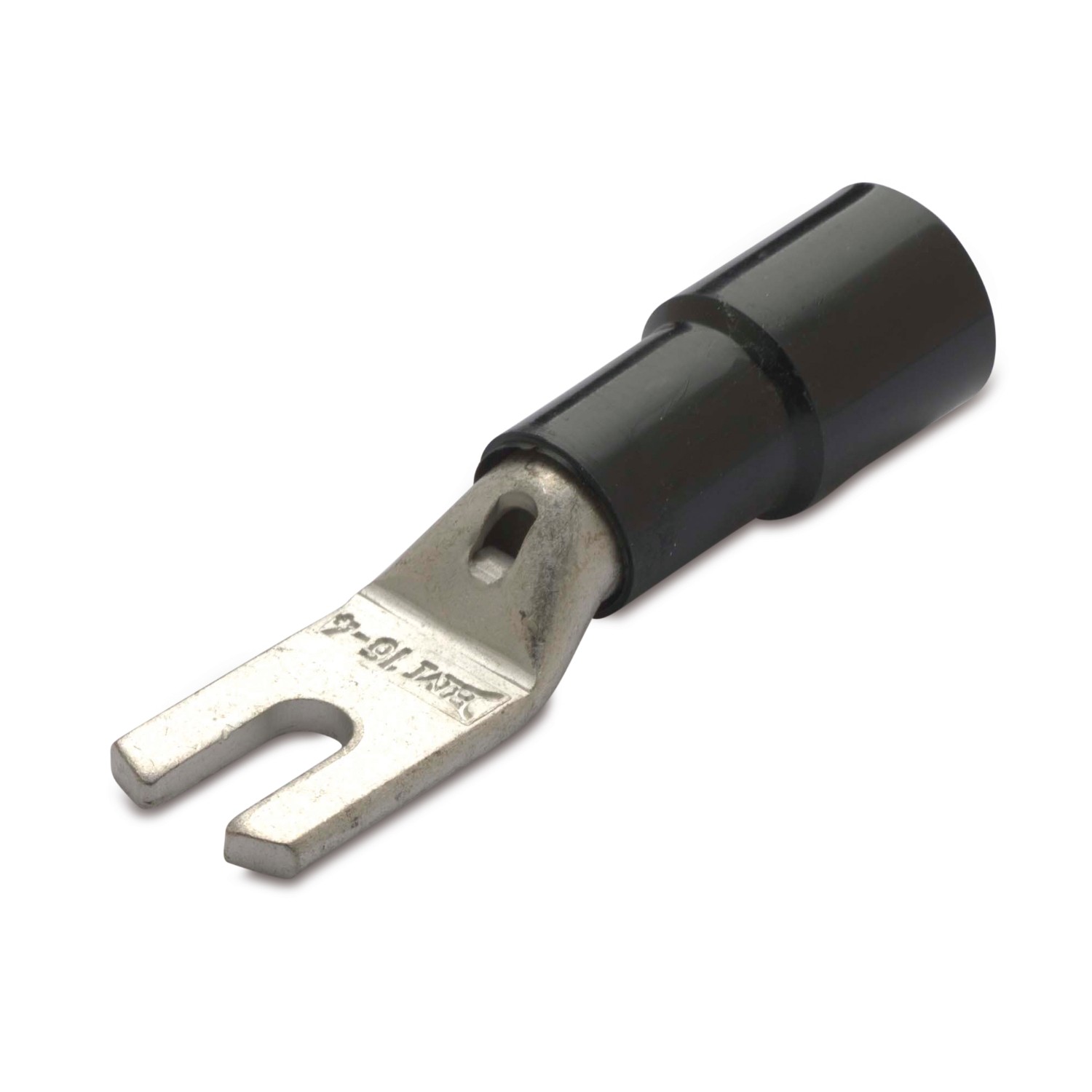

INSULATED BLACK NYLON TERMINALS WITH FORK (L.V.)

cid 11TB04D

Product Category	terminal lungs
Terminal material	tinned copper
Insulation material	polyamide (PA 6.6)
insulation self-extinguishing grade	UL 94 V0
Operating temperature	125 °C max
Inspection hole	No
cid	11TB04D

Images with
dimensions

Item Code	Color	Section [mm²]	Section [AWG/MCM]	For screw Ø screw [mm]	For screw Stud size	W1 [mm]	W2 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	L4 [mm]	D1 [mm]	D2 [mm]	
004201	Black	10	(8)	4	#8	10	4,3	42	9,5	8	7	8,2	5	100/100
004261	Black	10	(8)	5	#10	10	5,3	42	9,5	8	7	8,2	5	100/100
005231	Black	16	(6)	4	#8	11,5	4,3	47	11	9,5	8	9	6	100/100
005261	Black	16	(6)	5	#10	11,5	5,3	47	11	9,5	8	9	6	100/100
