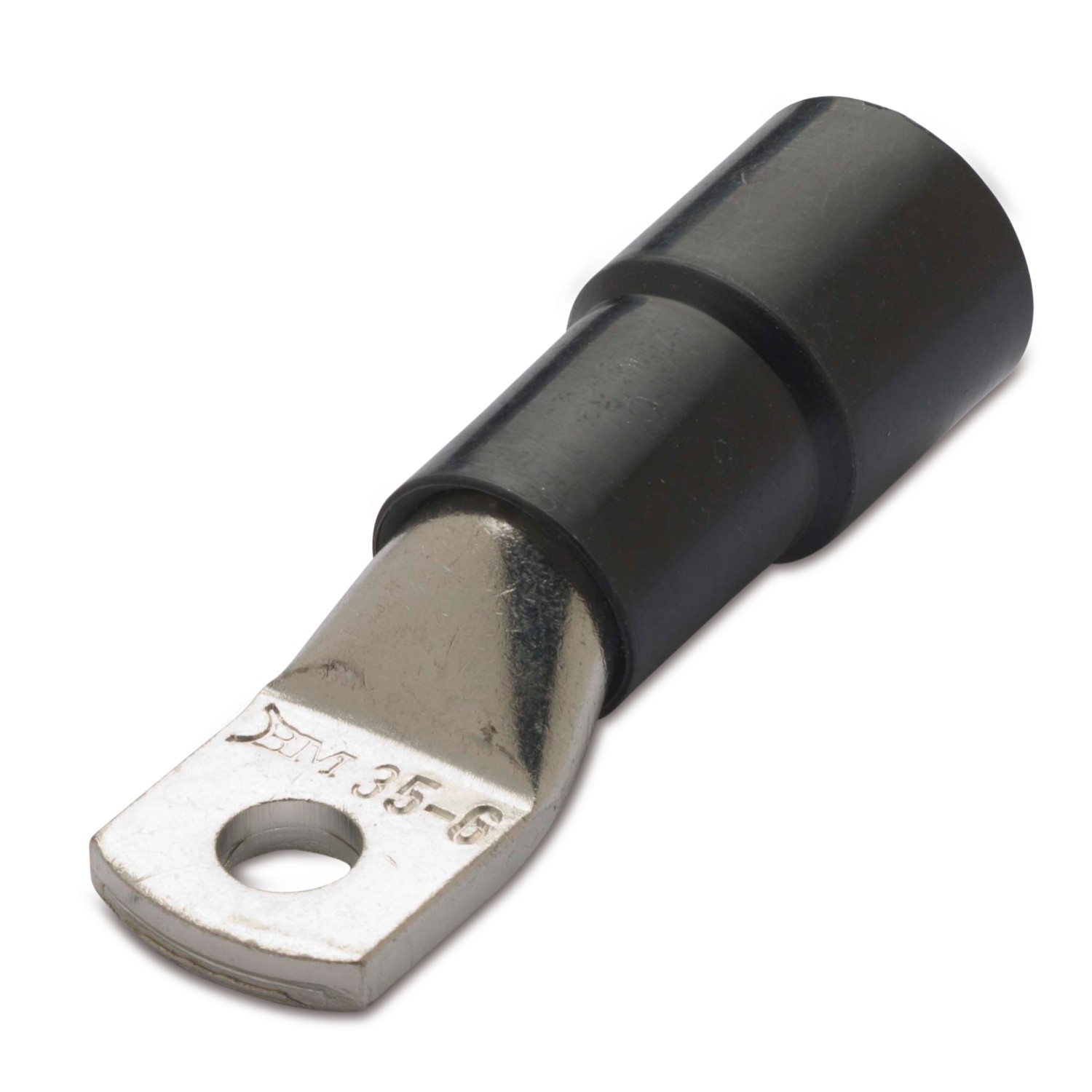

INSULATED WITH BLACK NYLON AND WITH SMALL PLATE (L.V.)

cid 11TB04C

INSULATED WITH BLACK NYLON · FOR CLASS 6 CONDUCTORS (L.V.)

INSULATED BLACK NYLON TERMINALS WITH FORK (L.V.)

Product Category	terminal lungs
Terminal material	tinned copper
Insulation material	polyamide (PA 6.6)
insulation self-extinguishing grade	UL 94 V0
Operating temperature	125 °C max
Applications	the reduced width of the palm allows connection to equipment with lugs of dimensions not suitable for standard terminals.
Inspection hole	No
cid	11TB04C

Images with
dimensions

Coded items

Item Code	Color	Section [mm²]	Section [AWG/MCM]	For screw Ø screw [mm]	For screw Stud size	W1 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	L4 [mm]	D1 [mm]	D2 [mm]	D3 [mm]		Quantity per Wishlist
917313	Black	35	(2)	6	#12	15	55	16	8	7	14	8,5	6,5	25/25
918313	Black	50	(1/0)	6	#12	15	58	18	8	7	15,5	10	6,5	25/25
918433	Black	50	(1/0)	10	3/8"	18,5	68	18	13,5	9,5	15,5	10	10,5	25/25
919313	Black	70	(2/0)	6	#12	17	67,5	20	9,5	6,5	18	12	6,5	25/25
919433	Black	70	(2/0)	10	3/8"	19	73,5	21	13	10	18	12	10,5	25/25
931373	Black	95	(3/0)	8	5/16"	19	76,5	24	12	8	19,5	13,8	8,5	25/25
931433	Black	95	(3/0)	10	3/8"	19	80,5	22	13	10	19,5	13,8	10,5	25/25
932373	Black	120	(4/0)	8	5/16"	19	83	22	12	9	21	15,5	8,5	25/25
932433	Black	120	(4/0)	10	3/8"	19	83	22	12	9	21	15,5	10,5	25/25
933373	Black	150	(300)	8	5/16"	19	93,5	30	17	9	23	17	8,4	25/25
933433	Black	150	(300)	10	3/8"	19	93,5	30	17	9	23	17	10,5	25/25
934493	Black	185	(400)	12	1/2"	31	110	32	17	14	26	19	13	25/25
935493	Black	240	(500)	12	1/2"	31,5	119	39	17	14	30	21,5	13	25/25
