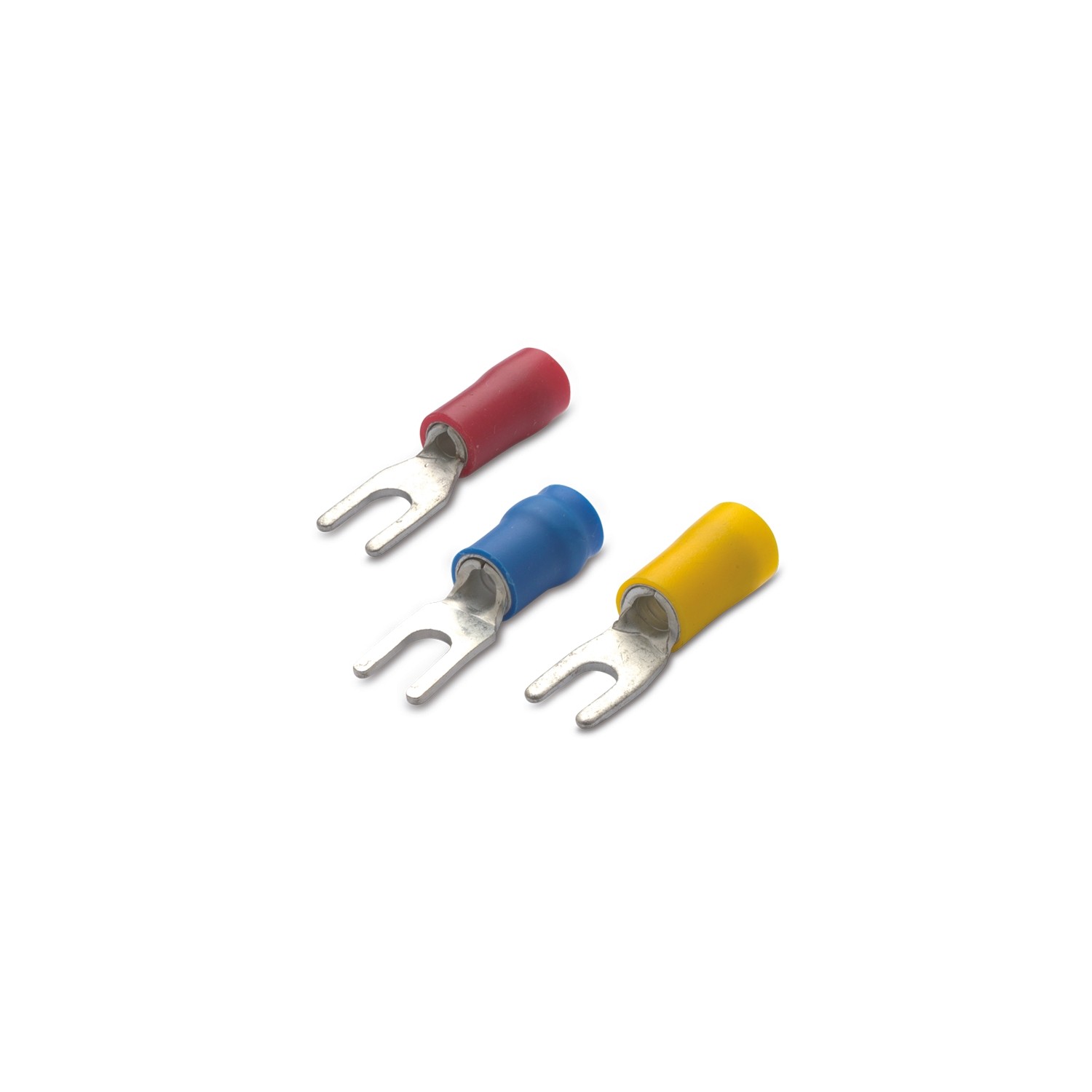

PVC INSULATED AND ANTI-VIBRATING FROM SHEET · FORK

cid 11TB02B

PVC INSULATED AND ANTI-VIBRATING FROM SHEET · RING

PVC INSULATED AND ANTI-VIBRATING FROM SHEET · ROUND PIN

Product Category	terminal lungs
Terminal material	tinned copper
End-sleeve material	copper
Insulation material	polyvinylchloride (PVC)
insulation self-extinguishing grade	UL 94 V0
Rated voltage	300 V max
Operating temperature	75 °C max
Inspection hole	No
Assembling	double crimping
cid	11TB02B

file n° E 137735

Images with
dimensions

Coded items

Item Code	Color	Section [mm²]	Section [AWG/MCM]	For screw Ø screw [mm]	For screw Stud size	W1 [mm]	W2 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	D1 [mm]	D2 [mm]		Quantity per Wishlist
90108	Red	0.25 ÷ 1.5	(22 - 16)	3	#4	5,7	3,2	21,2	10	6,5	4,4	1,7	100/1000
90114	Red	0.25 ÷ 1.5	(22 - 16)	3.5	#6	6,4	3,7	21,2	10	6,5	4,4	1,7	100/1000
90120	Red	0.25 ÷ 1.5	(22 - 16)	4	#8	6,4	4,3	21,2	10	6,5	4,4	1,7	100/1000
90126	Red	0.25 ÷ 1.5	(22 - 16)	5	#10	8,1	5,3	21,2	10	6,5	4,4	1,7	100/1000
90132	Red	0.25 ÷ 1.5	(22 - 16)	6	#12	11	6,4	25,5	10	8,6	4,4	1,7	100/1000
90208	Blue	1.5 ÷ 2.5	(16 - 14)	3	#4	5,7	3,2	21,2	10	6,5	5	2,3	100/1000
90220	Blue	1.5 ÷ 2.5	(16 - 14)	4	#8	6,4	4,3	21,2	10	6,5	5	2,3	100/1000
90226	Blue	1.5 ÷ 2.5	(16 - 14)	5	#10	8,1	5,3	21,2	10	6,5	5	2,3	100/1000
90232	Blue	1.5 ÷ 2.5	(16 - 14)	6	#12	11	6,4	25,5	10	8,6	5	2,3	100/1000
90314	Yellow	4 ÷ 6	(12 - 10)	3.5	#6	7,2	3,7	25,7	14	7,2	6,7	3,6	50/500
90320	Yellow	4 ÷ 6	(12 - 10)	4	#8	9	4,3	25,7	14	7,2	6,7	3,6	50/500
90326	Yellow	4 ÷ 6	(12 - 10)	5	#10	9	5,3	25,7	14	7,2	6,7	3,6	50/500
90332	Yellow	4 ÷ 6	(12 - 10)	6	#12	12	6,4	31,5	14	10,5	6,7	3,6	50/500
