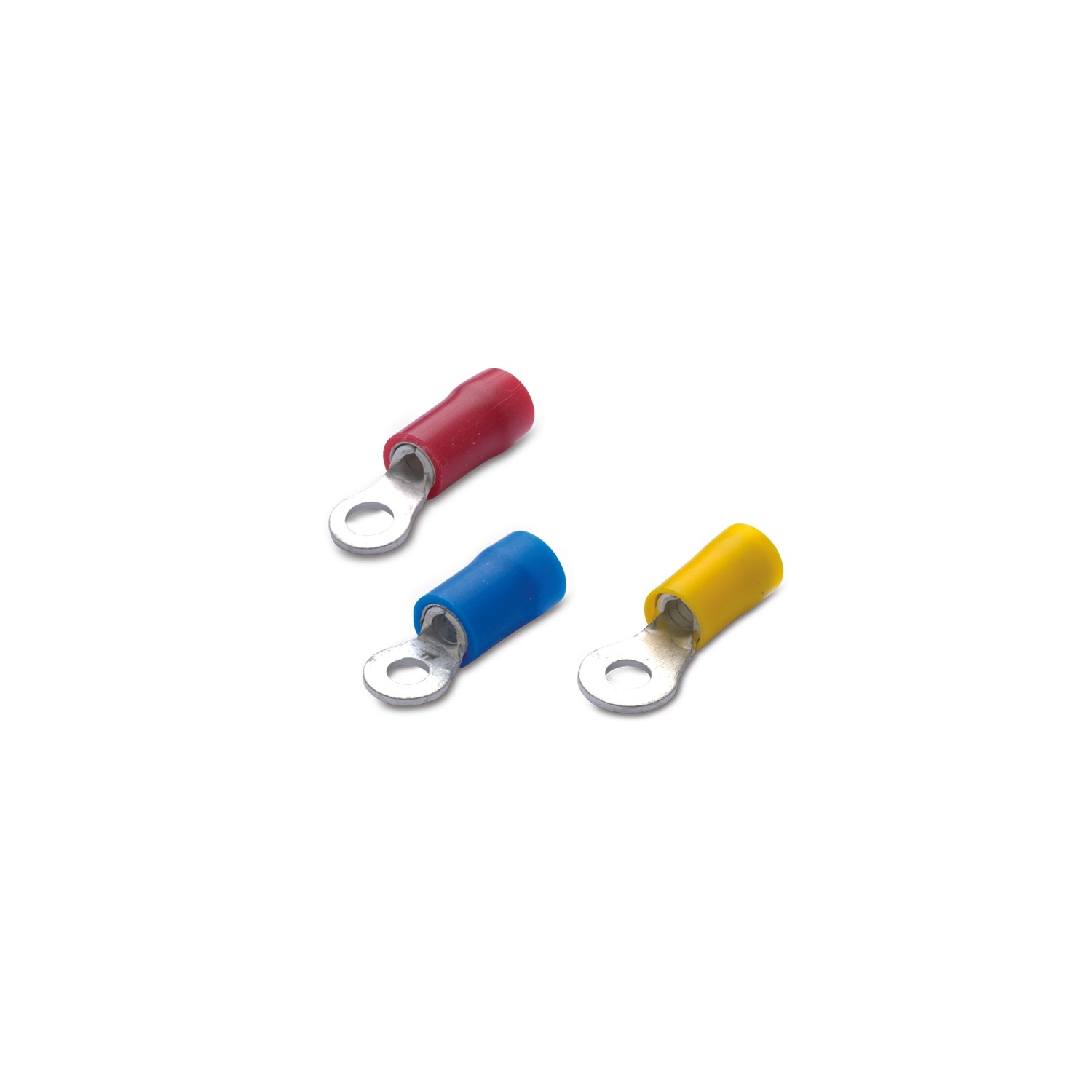

Insulated terminal lugs in PVC
PVC INSULATED AND ANTI-VIBRATING FROM SHEET · RING

Product was successfully added to your shopping cart.

PVC INSULATED AND ANTI-VIBRATING FROM SHEET · RING

cid 11TB02A

PVC INSULATED FROM SHEET · BLADE PIN

PVC INSULATED AND ANTI-VIBRATING FROM SHEET · FORK

Product Category	terminal lungs
Terminal material	tinned copper
End-sleeve material	copper
Insulation material	polyvinylchloride (PVC)
insulation self-extinguishing grade	UL 94 V0
Rated voltage	300 V max
Operating temperature	75 °C max
Inspection hole	No
Assembling	double crimping
cid	11TB02A

file n° E 137735

Images with
dimensions

Coded items

Item Code	Color	Section [mm²]	Section [AWG/MCM]	For screw Ø screw [mm]	For screw Stud size	W1 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	D1 [mm]	D2 [mm]	D3 [mm]		Quantity per Wishlist
90107	Red	0.25 ÷ 1.5	(22 - 16)	3	#4	5,5	17,5	10	4,75	4,4	1,7	3,2	100/1000
90113	Red	0.25 ÷ 1.5	(22 - 16)	3.5	#6	5,5	17,5	10	4,75	4,4	1,7	3,7	100/1000
90119	Red	0.25 ÷ 1.5	(22 - 16)	4	#8	8	21	10	7	4,4	1,7	4,3	100/1000
90125	Red	0.25 ÷ 1.5	(22 - 16)	5	#10	8	21	10	7	4,4	1,7	5,3	100/1000
90131	Red	0.25 ÷ 1.5	(22 - 16)	6	#12	11,6	25,5	10	9,7	4,4	1,7	6,4	100/1000
90137	Red	0.25 ÷ 1.5	(22 - 16)	8	5/16"	11,6	25,5	10	9,7	4,4	1,7	8,4	100/1000
90143	Red	0.25 ÷ 1.5	(22 - 16)	10	3/8"	13,6	27,3	10	10,5	4,4	1,7	10,5	100/1000
90207	Blue	1.5 ÷ 2.5	(16 - 14)	3	#4	8,5	22	10	7,75	5	2,3	3,2	100/1000
90213	Blue	1.5 ÷ 2.5	(16 - 14)	3.5	#6	8,5	22	10	7,75	5	2,3	3,7	100/1000
90219	Blue	1.5 ÷ 2.5	(16 - 14)	4	#8	8,5	22	10	7,75	5	2,3	4,3	100/1000
90225	Blue	1.5 ÷ 2.5	(16 - 14)	5	#10	9,5	22	10	7,25	5	2,3	5,3	100/1000
90231	Blue	1.5 ÷ 2.5	(16 - 14)	6	#12	12	27	10	11	5	2,3	6,4	100/1000
90237	Blue	1.5 ÷ 2.5	(16 - 14)	8	5/16"	12	27	10	11	5	2,3	8,4	100/1000
90243	Blue	1.5 ÷ 2.5	(16 - 14)	10	3/8"	13,6	29,3	10	12,5	5	2,3	10,5	100/1000
90319	Yellow	4 ÷ 6	(12 - 10)	4	#8	9,5	27	14	8,25	6,7	3,6	4,3	50/500
90325	Yellow	4 ÷ 6	(12 - 10)	5	#10	9,5	27	14	8,25	6,7	3,6	5,3	50/500
90331	Yellow	4 ÷ 6	(12 - 10)	6	#12	12	30,5	14	10,5	6,7	3,6	6,4	50/500
90337	Yellow	4 ÷ 6	(12 - 10)	8	5/16"	15	35	14	13,5	6,7	3,6	8,4	50/500
90343	Yellow	4 ÷ 6	(12 - 10)	10	3/8"	15	35	14	13,5	6,7	3,6	10,5	50/500
