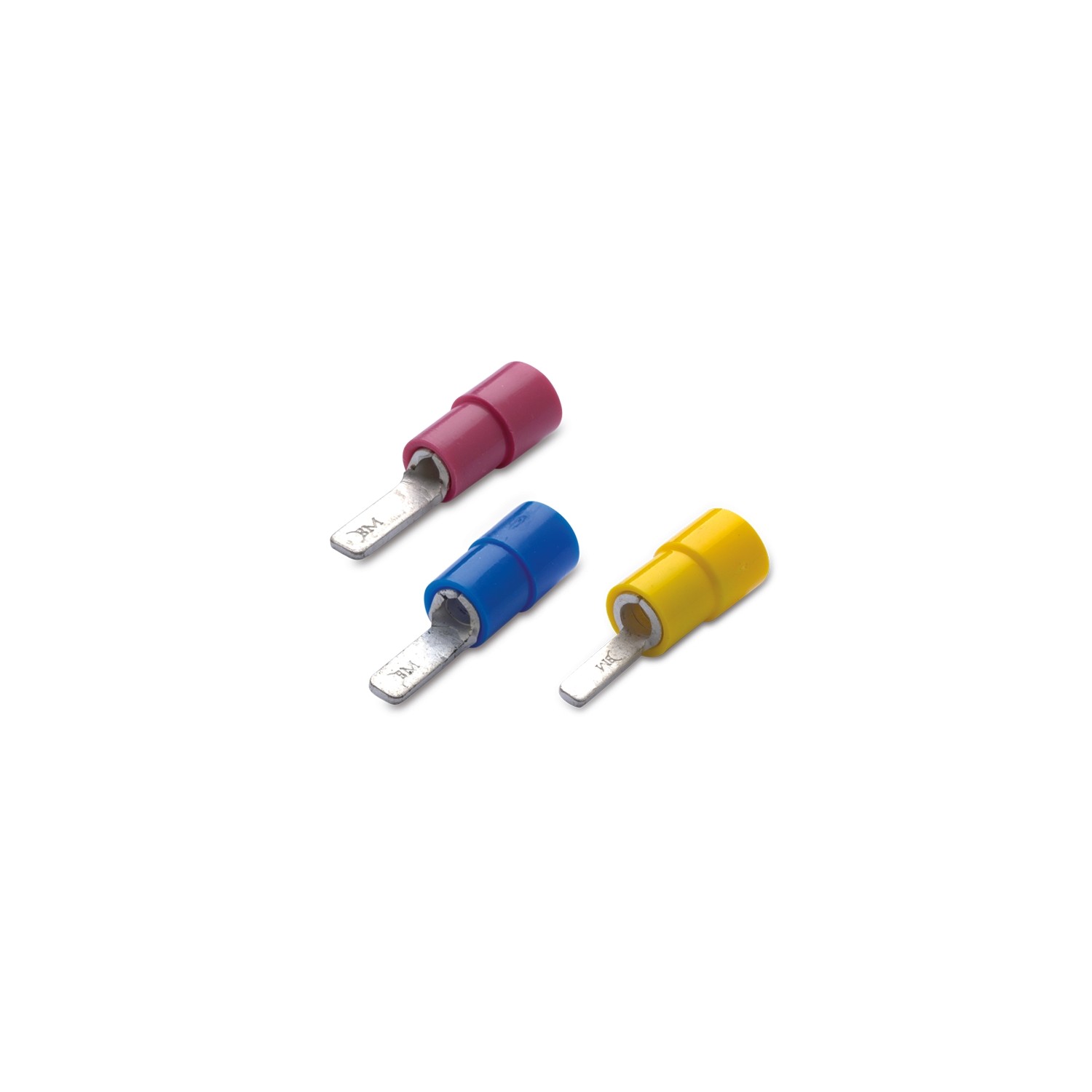

PVC INSULATED FROM SHEET · BLADE PIN

cid 11TB01D

Product Category	terminal lungs
Terminal material	tinned copper
Insulation material	polyvinylchloride (PVC)
insulation self-extinguishing grade	UL 94 V0
Rated voltage	300 V max
Operating temperature	75 °C max
Inspection hole	No
cid	11TB01D

Images with
dimensions

Item Code	Color	Section [mm²]	Section [AWG/MCM]	W1 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	D1 [mm]	D2 [mm]	
00152	Red	0.25 ÷ 1.5	(22 - 16)	2,8	18,5	9,5	9	4	1,95	100/1000
00153	Red	0.25 ÷ 1.5	(22 - 16)	3	24	9,5	14,5	4	1,95	100/1000
00252	Blue	1.5 ÷ 2.5	(16 - 14)	2,8	18,5	9,5	9	4,5	2,45	100/1000
00253	Blue	1.5 ÷ 2.5	(16 - 14)	2,8	25,5	9,5	16	4,5	2,45	100/1000
00352	Yellow	4 ÷ 6	(12 - 10)	2,8	24	14	10,4	6,6	3,5	50/500
00353	Yellow	4 ÷ 6	(12 - 10)	4,5	32	14	18	6,6	3,5	50/500
