PVC INSULATED AND ANTI-VIBRATING · FEMALE TOTALLY INSULATED

Product was successfully added to your shopping cart.

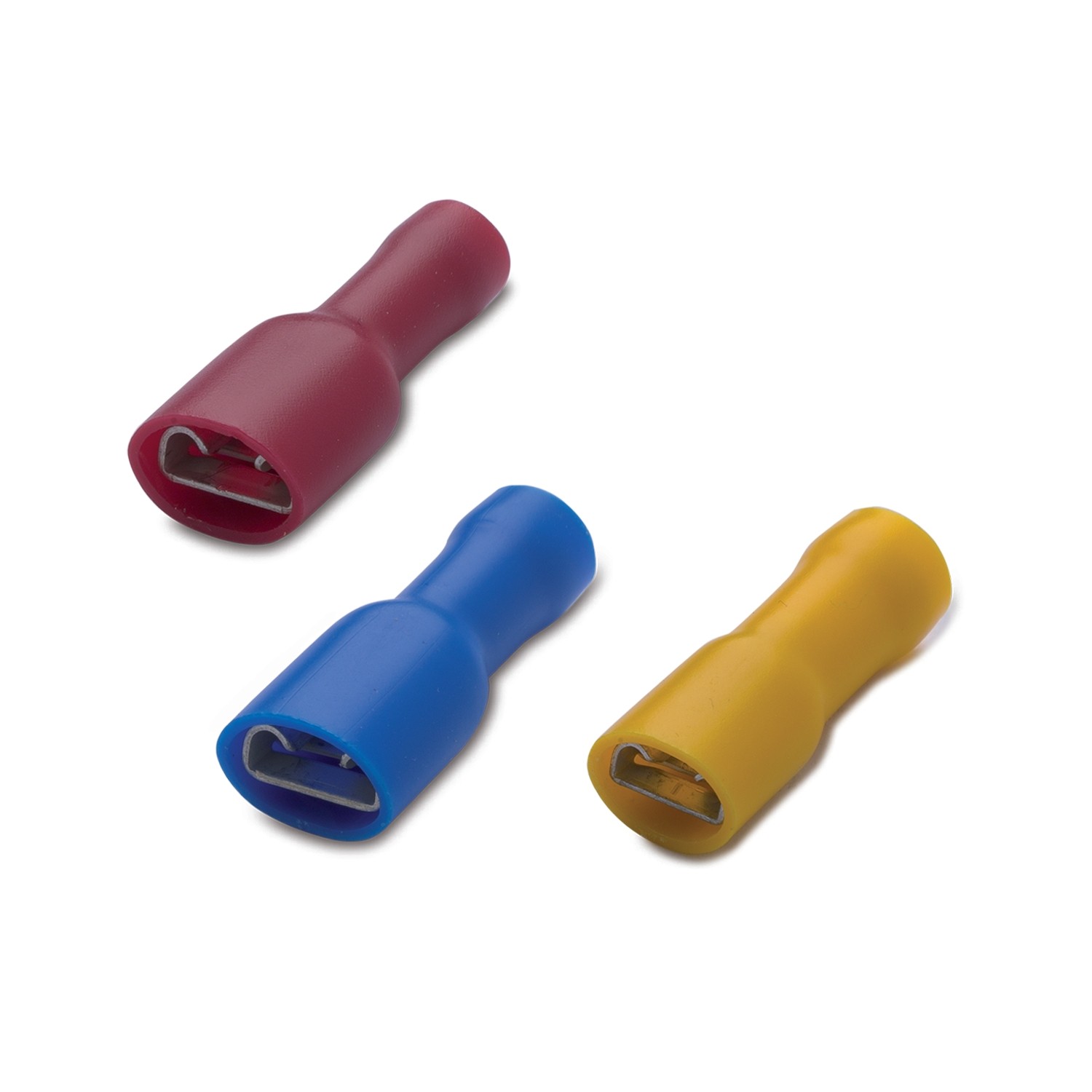

PVC INSULATED AND ANTI-VIBRATING · FEMALE TOTALLY INSULATED

cid 11TD03B

PVC INSULATED AND ANTI-VIBRATING · FEMALE

PVC INSULATED AND ANTI-VIBRATING · MALE

Product Category	quick-connect terminals
Terminal material	tinned brass
End-sleeve material	copper
Insulation material	polyvinylchloride (PVC)
Operating temperature	75 °C max
Insulation self-extinguishing grade	UL 94 V0
Rated voltage	300V max
How to assemble	double crimping
cid	11TD03B

* file n° E 143070

Images with
dimensions

Coded items

Item Code	Section [mm²]	Section [AWG/MCM]	CarTec 11 [mm]	CarTec 12 ["]	D1 [mm]	D2 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	W1 [mm]	Insulating color		Quantity per Wishlist
00191*	0.25 ÷ 1.5	(22 - 16)	6.3 x 0.8	0.250x0.032	3,8	1,9	22	11	7,8	6,6	Red	100/1000
00192*	0.25 ÷ 1.5	(22 - 16)	4.8 x 0.8	0.187x0.032	3,8	1,9	20	11	6	5	Red	100/1000
00193	0.25 ÷ 1.5	(22 - 16)	4.8 x 0.5	0.187x0.020	3,8	1,9	20	11	6	5	Red	100/1000
00291*	1.5 ÷ 2.5	(16 - 14)	6.3 x 0.8	0.250x0.032	4,5	2,4	22	11	7,8	6,6	Blue	50/250
00292*	1.5 ÷ 2.5	(16 - 14)	4.8 x 0.8	0.187x0.032	4,5	2,4	20	11	6	5	Blue	100/1000
00293	1.5 ÷ 2.5	(16 - 14)	4.8 x 0.5	0.187x0.020	4,5	2,4	20	11	6	5	Blue	100/1000
00392*	4 ÷ 6	(12 - 10)	6.3 x 0.8	0.250x0.032	6	3,5	25	11	7,8	6,6	Yellow	50/500
