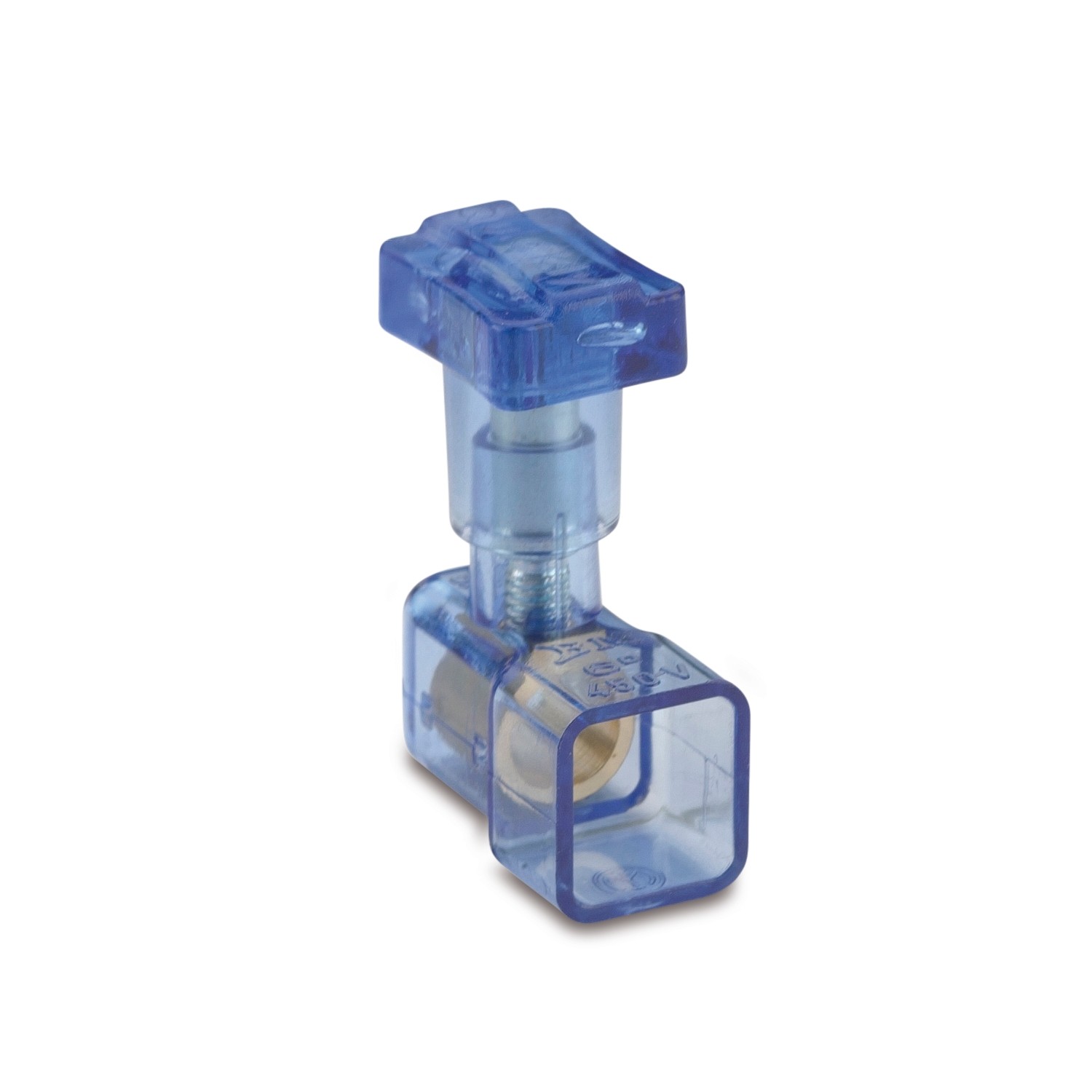

FOR FREE CONNECTIONS · CLOSE END CONNECTORS · WITH MANUAL TIGHTENING

cid 41MB01C
Previous

FOR FREE CONNECTIONS · END

Previous

FOR FREE CONNECTIONS · CLOSE END CONNECTORS · FOR CLAMPING

Product Categoryterminal blocks for free connections
Insulating housingtransparent polycarbonate (PC) UL 94 V0
Conductive bodybrass
Captive screw ingalvanized steel
Insulation self-extinguishingEN 60335-1: 2002+A2:2006 (par. 30.2.3), EN 60695-2-10 a 850 °C, EN 60695-2-11
Conductor typerigid and flexible
Max operating temperature85 °C
Protection gradeIP20
According to std.EN 60998-1: 2004, EN 60998-2-1: 2004
cid41MB01C
PDF documents
Images with
dimensions
Item
Code		 Conductor section
[mm²]		Connection capability
Section
[mm²]		Connection capability
N. rigid conductors		Connection capability
N. flexible conductors		Rated voltage
[V]		Test current
[A]		ScrewL1
[mm]		W1
[mm]		D1
[mm]		 Quantity per
Wishlist
9924Q 44
2.5
1.5		2
2 ÷ 3
2 ÷ 4		2
2 ÷ 3
2 ÷ 4		45032M410,3214,520/20
993Q 66
4
2,5		2
2 ÷ 3
2 ÷ 4		2
2
2 ÷ 4		45041M411,822,5620/20
994Q 1010
6
4		2
2 ÷ 3
2 ÷ 4		2
2
2 ÷ 4		45057M614,7267,920/20
