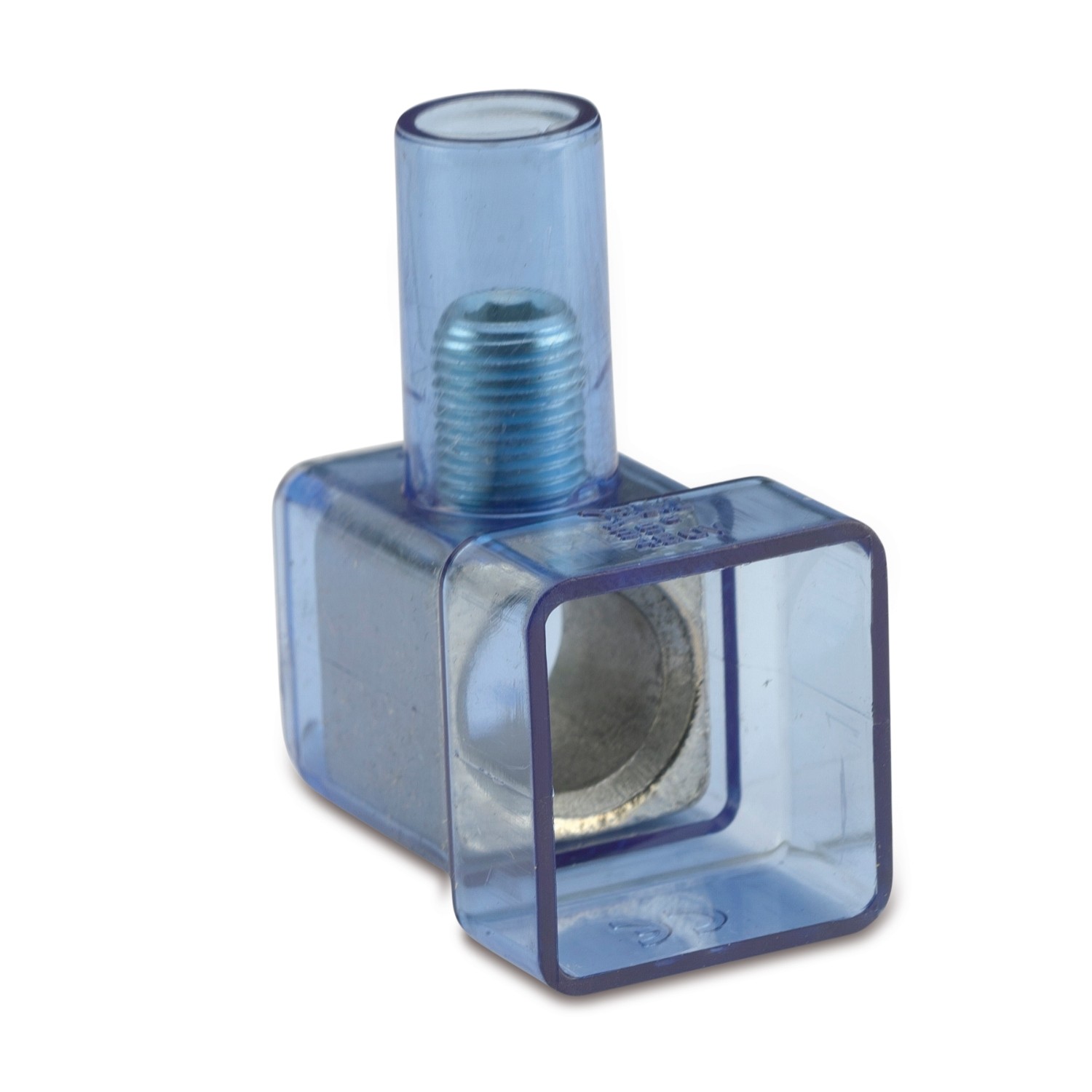

FOR FREE CONNECTIONS · END

cid 41MB01B

FOR FREE CONNECTIONS · END · 10-WAY BARS

FOR FREE CONNECTIONS · CLOSE END CONNECTORS · WITH MANUAL TIGHTENING

Product Category	terminal blocks for free connections
Insulating housing	transparent polycarbonate (PC) UL 94 V0
Conductive body	brass
Captive screw in	galvanized steel
Insulation self-extinguishing	EN 60335-1: 2002+A2:2006 (par. 30.2.3), EN 60695-2-10 a 850 °C, EN 60695-2-11
Conductor type	rigid and flexible
Max operating temperature	85 °C
Protection grade	IP20
According to std.	EN 60998-1: 2004, EN 60998-2-1: 2004
cid	41MB01B

Images with
dimensions

Coded items

Item Code	Conductor section [mm²]	Connection capability Section [mm²]	Connection capability N. rigid conductors	Connection capability N. flexible conductors	Rated voltage [V]	Test current [A]	Screw	L1 [mm]	W1 [mm]	S1 [mm]	D1 [mm]		Quantity per Wishlist
9960	25	25 16 10	2 2 ÷ 3 2 ÷ 4	2 2 ÷ 3 2 ÷ 4	450	101	M10	22,5	36,3	41,9	12	25/25
9961	35	35 25 16	2 2 ÷ 3 2 ÷ 4	2 2 2 ÷ 3	450	125	M10	26,1	43,5	49,4	13,9	25/25
