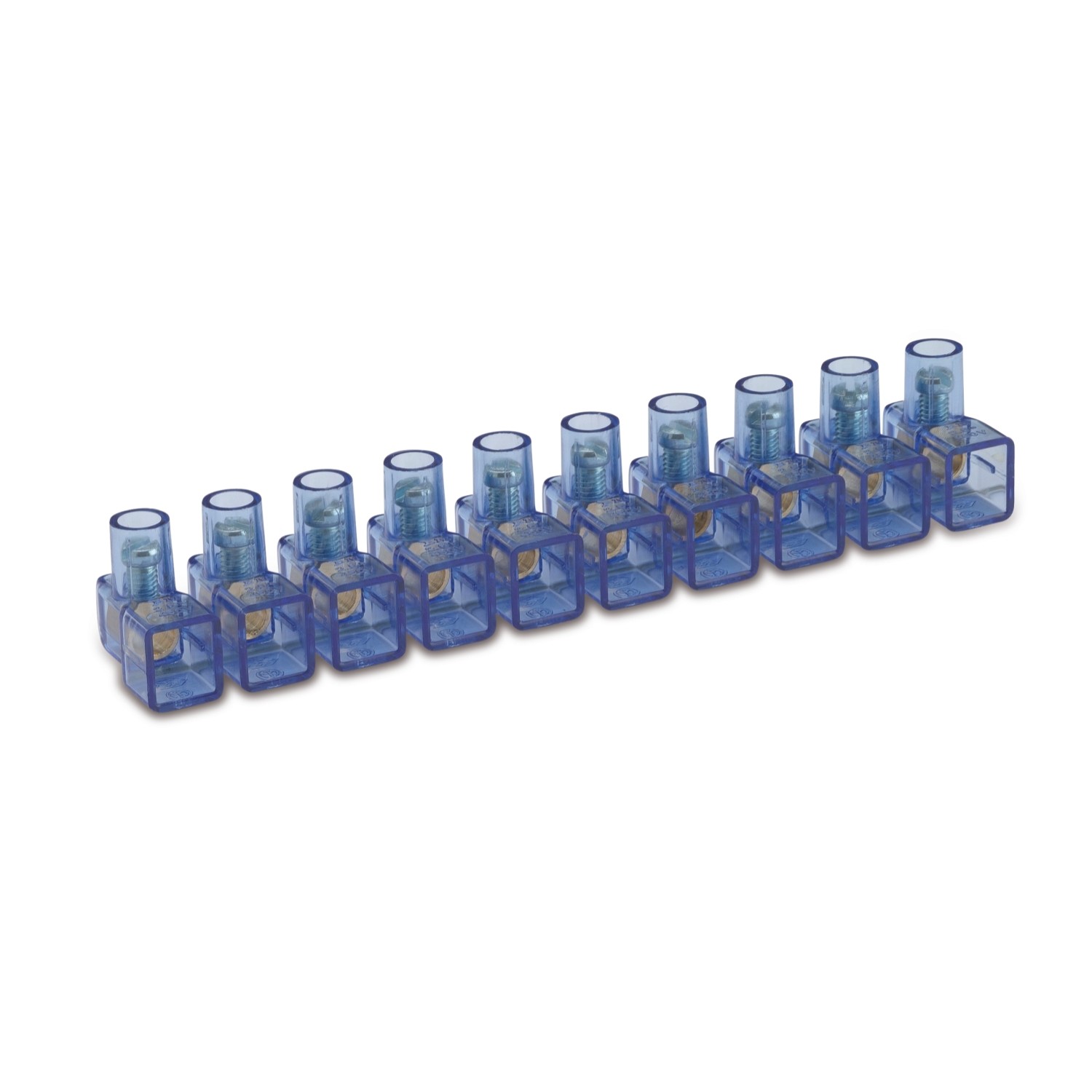

FOR FREE CONNECTIONS · END · 10-WAY BARS

cid 41MB01A

Product Category	terminal blocks for free connections
Insulating housing	transparent polycarbonate (PC) UL 94 V0
Conductive body	brass
Captive screw in	galvanized steel
Insulation self-extinguishing	EN 60335-1: 2002+A2:2006 (par. 30.2.3), EN 60695-2-10 a 850 °C, EN 60695-2-11
Conductor type	rigid and flexible
Max operating temperature	85 °C
Protection grade	IP20
According to std.	EN 60998-1: 2004, EN 60998-2-1: 2004
cid	41MB01A

Images with
dimensions

Item Code	Conductor section [mm²]	Connection capability Section [mm²]	Connection capability N. rigid conductors	Connection capability N. flexible conductors	Rated voltage [V]	Test current [A]	Screw	L1 [mm]	W1 [mm]	S1 [mm]	D1 [mm]	Ways	
991	1.5	1.5 1 0.75	2 2 ÷ 3 2 ÷ 4	2 2 ÷ 3 2 ÷ 4	450	18	M3	7,5	15	14,5	3,1	10	10/500
992	2.5	2.5 1.5 1	2 2 ÷ 3 2 ÷ 4	2 2 ÷ 3 2 ÷ 4	450	24	M3.5	9	17,5	18,2	4,1	10	10/600
993	6	6 4 2.5	2 2 ÷ 3 2 ÷ 4	2 2 2 ÷ 4	450	41	M4	11,8	22,5	23	6	10	10/300
994	10	10 6 4	2 2 ÷ 3 2 ÷ 4	2 2 2 ÷ 4	450	57	M6	14,7	26	26	7,9	10	10/200
995	16	16 10 8	2 2 ÷ 3 2 ÷ 4	2 2 2 ÷ 3	450	76	M8	18,8	31,8	32,2	10,5	10	10/100
9924	4	4 2.5 1.5	2 2 ÷ 3 2 ÷ 4	2 2 ÷ 3 2 ÷ 4	450	32	M4	10,3	21	20	4,5	10	10/400
