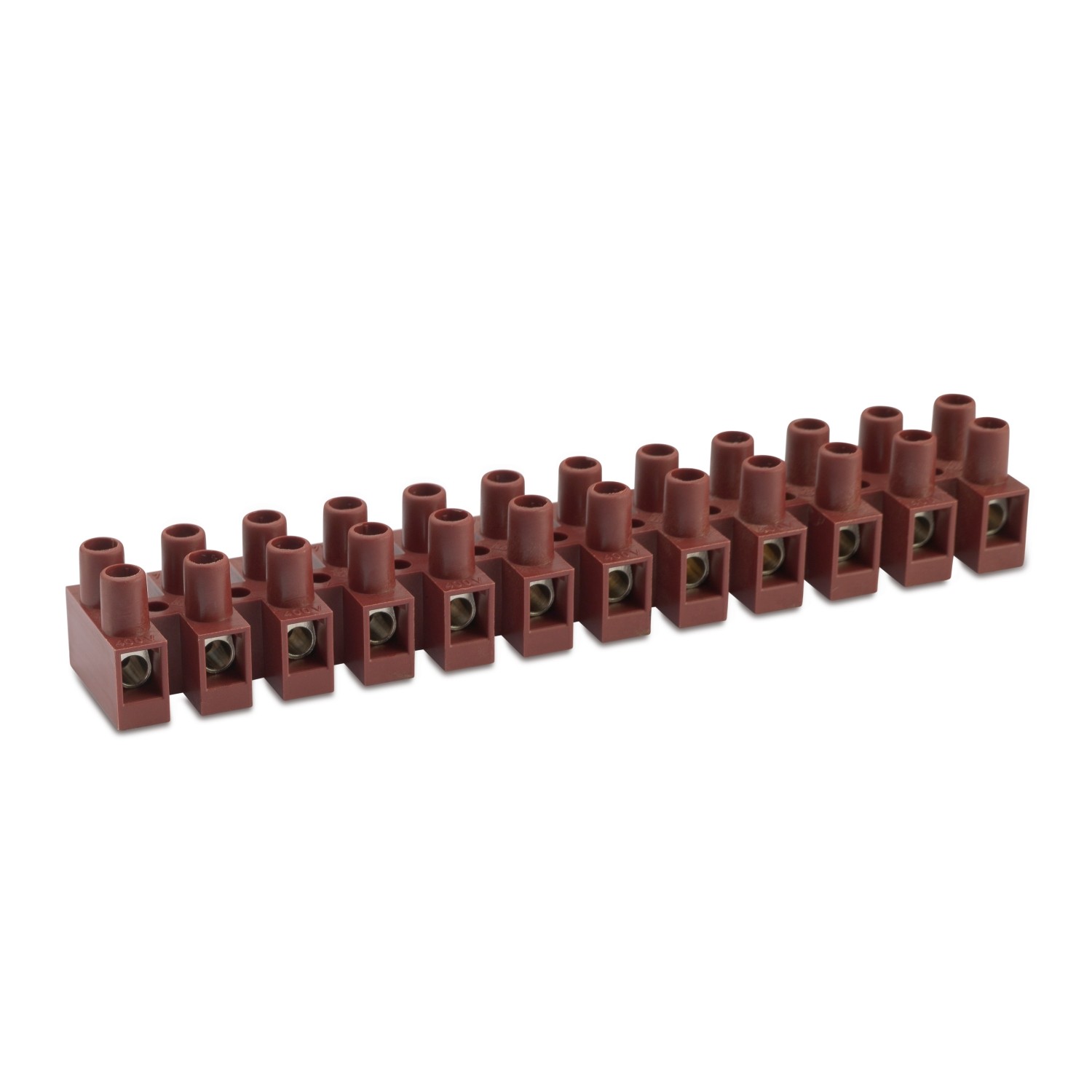

NYLON · FROM 1 TO 12 WAYS · M94 GF/CS SERIES

cid 41MA06D

25% fiberglass
with wire protection

Product Category	multiway terminal blocks
Insulating housing	polyamide (PA 6.6) brown color and 25% fiberglass UL 94 V0
Conductive body	nickel-plated brass
Captive screw in	galvanized steel (M3,5)
wire protection	stainless steel
Insulation self-extinguishing	EN 60335-1: 2002+A2:2006 (par. 30.2.3), EN 60695-2-10 a 850 °C, EN 60695-2-11
Conductor type	rigid and flexible
Max short-time temperature	200 °C
Test voltage	2500 V
According to std.	EN 60998-1: 2004, EN 60998-2-1: 2004
cid	41MA06D

Image	Section [mm²]	Section [AWG]	Rated voltage [V]	Test current [A]	Max operating temperature [°C]	Torque [Nm]
	4	-	400	23	140	0,7
	-	18-10	600	30 (*)	110	0,9

* 25 A rated for Factory Wiring Only

Images with
dimensions

Item Code	Ways	Color	L1 [mm]	
94GFCS	12	Brown	140 ± 1	50/300
94FS1	1	Brown	7,5 ± 1	Contact BM
94FS2	2	Brown	19,5 ± 1	Contact BM
94FS3	3	Brown	31,5 ± 1	Contact BM
94FS4	4	Brown	43,6 ± 1	Contact BM
94FS5	5	Brown	55,5 ± 1	Contact BM
94FS6	6	Brown	68 ± 1	Contact BM
94FS7	7	Brown	80 ± 1	Contact BM
94FS8	8	Brown	92 ± 1	Contact BM
94FS9	9	Brown	104 ± 1	Contact BM
94FS10	10	Brown	116 ± 1	Contact BM
94FS11	11	Brown	128 ± 1	Contact BM
