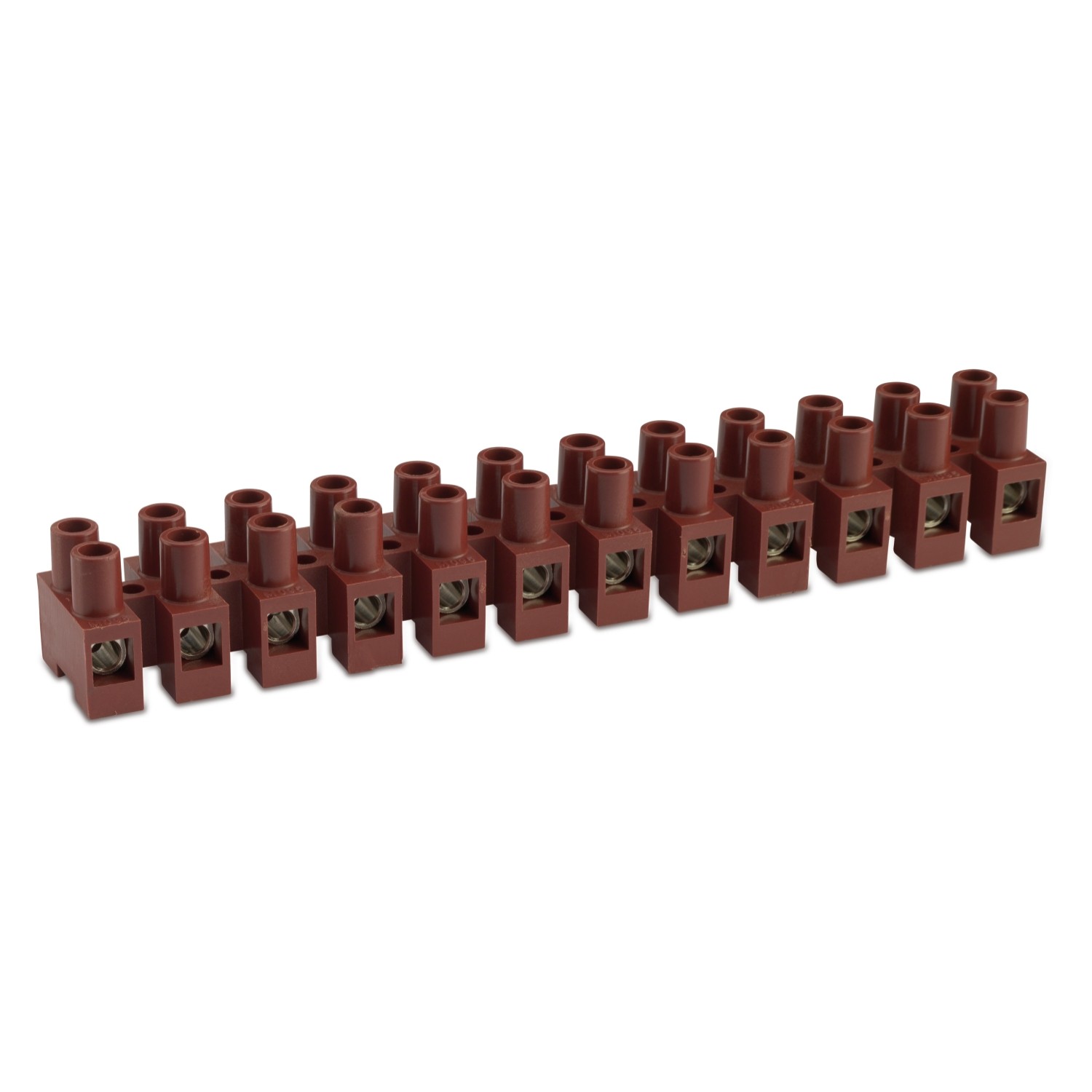

NYLON · FROM 1 TO 12 WAYS · M95 GF SERIES

cid 41MA07C

25% fiberglass

Product Category	multiway terminal blocks
Insulating housing	polyamide (PA 6.6) brown color and 25% fiberglass UL 94 V0
Conductive body	nickel-plated brass
Captive screw in	galvanized steel (M4)
Insulation self-extinguishing	EN 60335-1: 2002+A2:2006 (par. 30.2.3), EN 60695-2-10 a 850 °C, EN 60695-2-11
Conductor type	rigid and flexible
Max short-time temperature	200 °C
Test voltage	2500 V
According to std.	EN 60998-1: 2004, EN 60998-2-1: 2004
cid	41MA07C

Image	Section [mm²]	Section [AWG]	Rated voltage [V]	Test current [A]	Max operating temperature [°C]	Torque [Nm]
	10	-	400	57	140	0,7
	-	18-8	600	50	105	1,2

Images with
dimensions

Item Code	Ways	Color	L1 [mm]	
M95GF	12	Brown	174 ± 1	10/10
95GF1	1	Brown	9,5 ± 1	Contact BM
95GF2	2	Brown	24,5 ± 1	Contact BM
95GF3	3	Brown	39 ± 1	Contact BM
95GF4	4	Brown	54,5 ± 1	Contact BM
95GF5	5	Brown	69,5 ± 1	Contact BM
95GF6	6	Brown	84 ± 1	Contact BM
95GF7	7	Brown	99 ± 1	Contact BM
95GF8	8	Brown	114,5 ± 1	Contact BM
95GF9	9	Brown	129,5 ± 1	Contact BM
95GF10	10	Brown	145 ± 1	Contact BM
95GF11	11	Brown	160,2 ± 1	Contact BM
