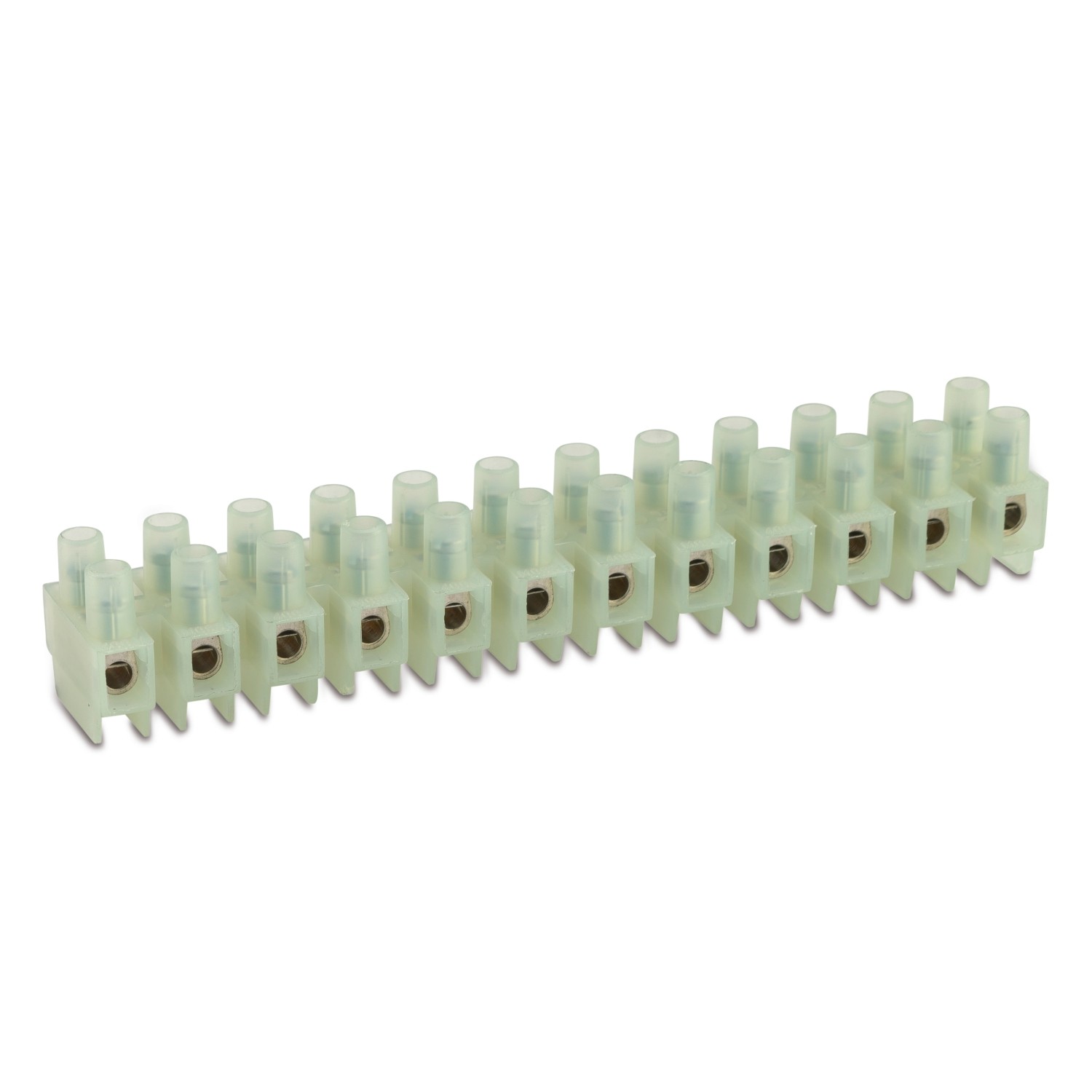

NYLON · FROM 1 TO 12 WAYS · M093H/CS SERIES

cid 41MA05B

with wire protection

Product Category	multiway terminal blocks
Insulating housing	polyamide (PA 6.6) natural color UL 94 V2
Conductive body	nickel-plated brass
Captive screw in	galvanized steel (M3)
wire protection	stainless steel
Insulation self-extinguishing	EN 60695-2-10 a 850 °C
Conductor type	rigid and flexible
Max short-time temperature	200 °C
Test voltage	2500 V
Clearance	8.5 mm to withstand 8000V rated impulse voltage (EN 60335-1, par.29)
According to std.	EN 60998-1: 2004, EN 60998-2-1: 2004
cid	41MA05B

Image	Section [mm²]	Section [AWG]	Rated voltage [V]	Test current [A]	Max operating temperature [°C]	Torque [Nm]
	2,5	-	400	24	150	0,25
	-	18-12	600	20 (*)	105	0,5

* 25 A rated for Factory Wiring Only

Images with
dimensions

Item Code	Ways	Color	L1 [mm]	
M93HCS	12	Natural	117 ± 1	50/50
93HCS1	1	Natural	67 ± 1	Contact BM
93HCS2	2	Natural	16,7 ± 1	Contact BM
93HCS3	3	Natural	26,6 ± 1	Contact BM
93HCS4	4	Natural	36,6 ± 1	Contact BM
93HCS5	5	Natural	46,6 ± 1	Contact BM
93HCS6	6	Natural	56,6 ± 1	Contact BM
93HCS7	7	Natural	67 ± 1	Contact BM
93HCS8	8	Natural	77 ± 1	Contact BM
93HCS9	9	Natural	87 ± 1	Contact BM
93HCS10	10	Natural	97 ± 1	Contact BM
93HCS11	11	Natural	107 ± 1	Contact BM
