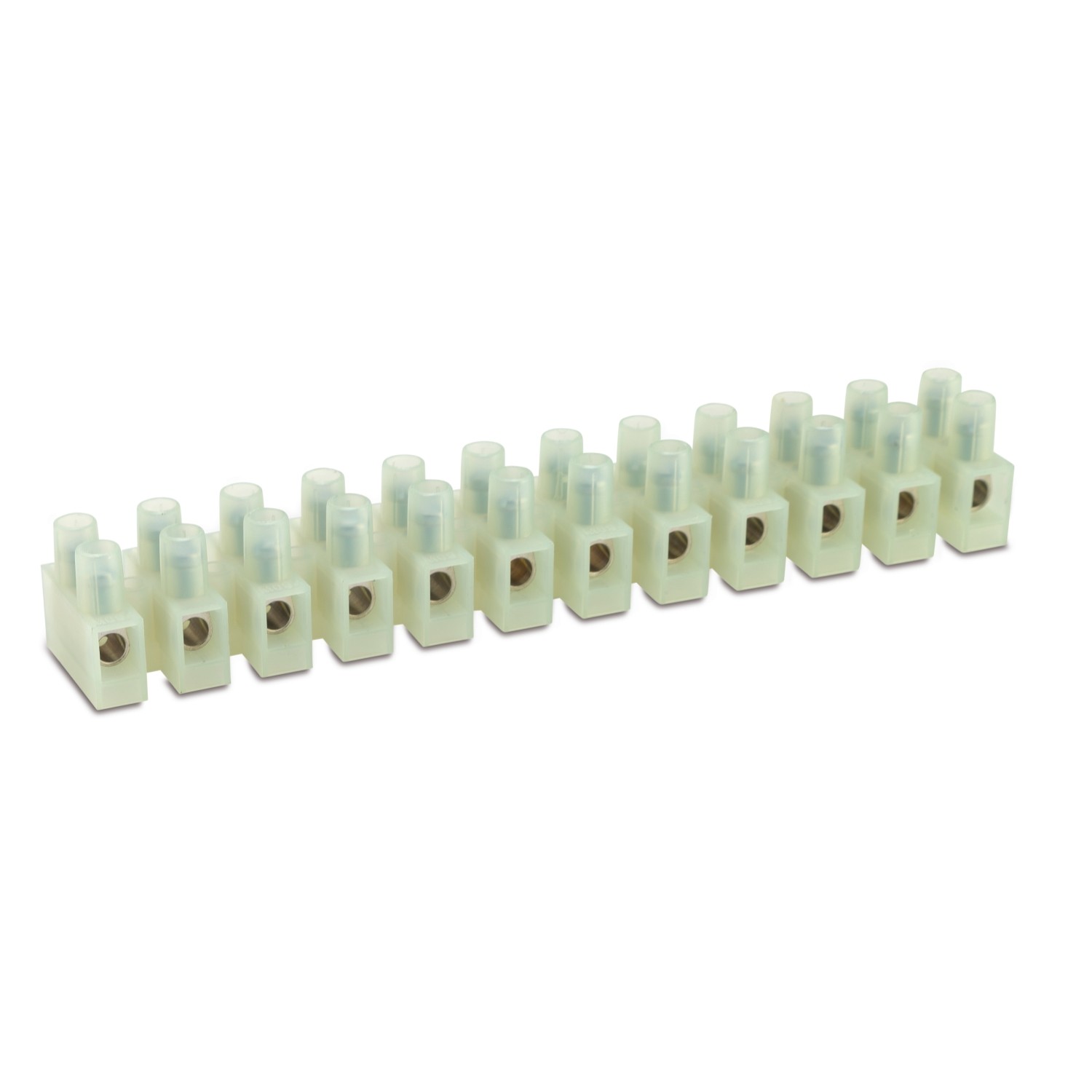

NYLON · FROM 1 TO 12 WAYS · M094 SERIES

cid 41MA06A

Product Category	multiway terminal blocks
Insulating housing	polyamide (PA 6.6) natural color UL 94 V2
Conductive body	nickel-plated brass
Captive screw in	galvanized steel (M3,5)
Insulation self-extinguishing	EN 60695-2-10 a 850 °C
Conductor type	rigid and flexible
Max short-time temperature	200 °C
Test voltage	2500 V
According to std.	EN 60998-1: 2004, EN 60998-2-1: 2004
cid	41MA06A

Image	Section [mm²]	Section [AWG]	Rated voltage [V]	Test current [A]	Max operating temperature [°C]	Torque [Nm]
	6	-	400	41	125	0,7
	-	18-10	600	30 (*)	105	0,9

* 25 A rated for Factory Wiring Only

Images with
dimensions

Item Code	Ways	Color	L1 [mm]	
M094	12	Natural	140 ± 1	50/300
M94/1	1	Natural	7,5 ± 1	Contact BM
M94/2	2	Natural	19,5 ± 1	Contact BM
M94/3	3	Natural	31,5 ± 1	Contact BM
M94/4	4	Natural	43,6 ± 1	Contact BM
M94/5	5	Natural	55,5 ± 1	Contact BM
M94/6	6	Natural	68 ± 1	Contact BM
M94/7	7	Natural	80 ± 1	Contact BM
M94/8	8	Natural	92 ± 1	Contact BM
M94/9	9	Natural	104 ± 1	Contact BM
M94/10	10	Natural	116 ± 1	Contact BM
M94/11	11	Natural	128 ± 1	Contact BM
