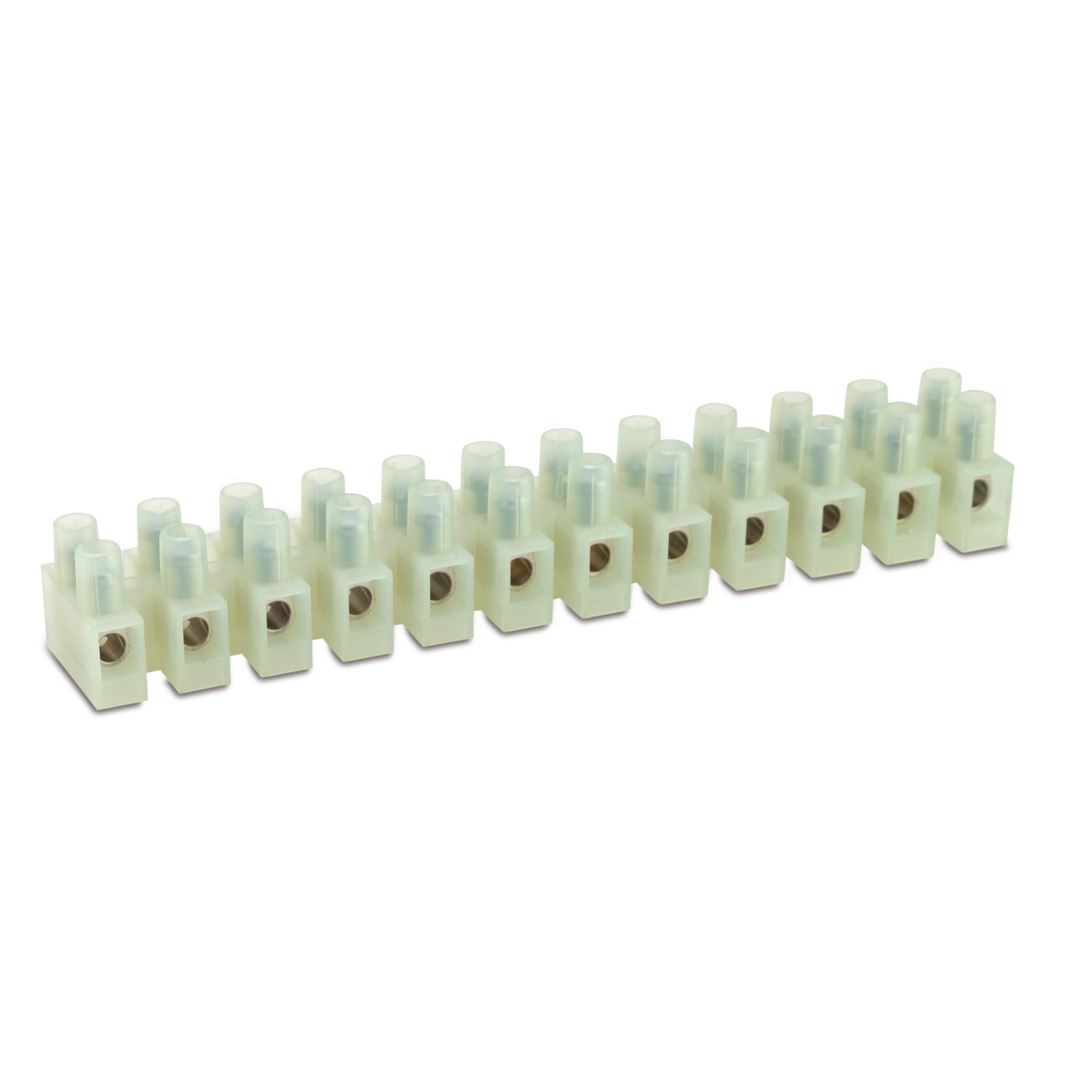

NYLON · FROM 1 TO 12 WAYS · M94/CS SERIES

cid 41MA06B
Previous

NYLON · FROM 1 TO 12 WAYS · M094 SERIES

Previous

NYLON · FROM 1 TO 12 WAYS · M095 SERIES

with wire protection
Product Categorymultiway terminal blocks
Insulating housingpolyamide (PA 6.6) natural color UL 94 V2
Conductive bodynickel-plated brass
Captive screw ingalvanized steel (M3,5)
wire protectionstainless steel
Insulation self-extinguishingEN 60695-2-10 a 850 °C
Conductor typerigid and flexible
Max short-time temperature200 °C
Test voltage2500 V
According to std.EN 60998-1: 2004, EN 60998-2-1: 2004
cid41MA06B
ImageSection
[mm²]
Section
[AWG]
Rated voltage
[V]
Test current
[A]
Max operating temperature
[°C]
Torque
[Nm]
4-400231250,9
-18-1060030 (*)1050,9
* 25 A rated for Factory Wiring Only
Images with
dimensions
Item
Code
WaysColorL1
[mm]
Quantity per
Wishlist
M94CS 12Natural140 ± 150/50
94CS1 1Natural7,5 ± 1Contact BM
94CS2 2Natural19,5 ± 1Contact BM
94CS3 3Natural31,5 ± 1Contact BM
94CS4 4Natural43,6 ± 1Contact BM
94CS5 5Natural55,5 ± 1Contact BM
94CS6 6Natural68 ± 1Contact BM
94CS7 7Natural80 ± 1Contact BM
94CS8 8Natural92 ± 1Contact BM
94CS9 9Natural104 ± 1Contact BM
94CS10 10Natural116 ± 1Contact BM
94CS11 11Natural128 ± 1Contact BM
