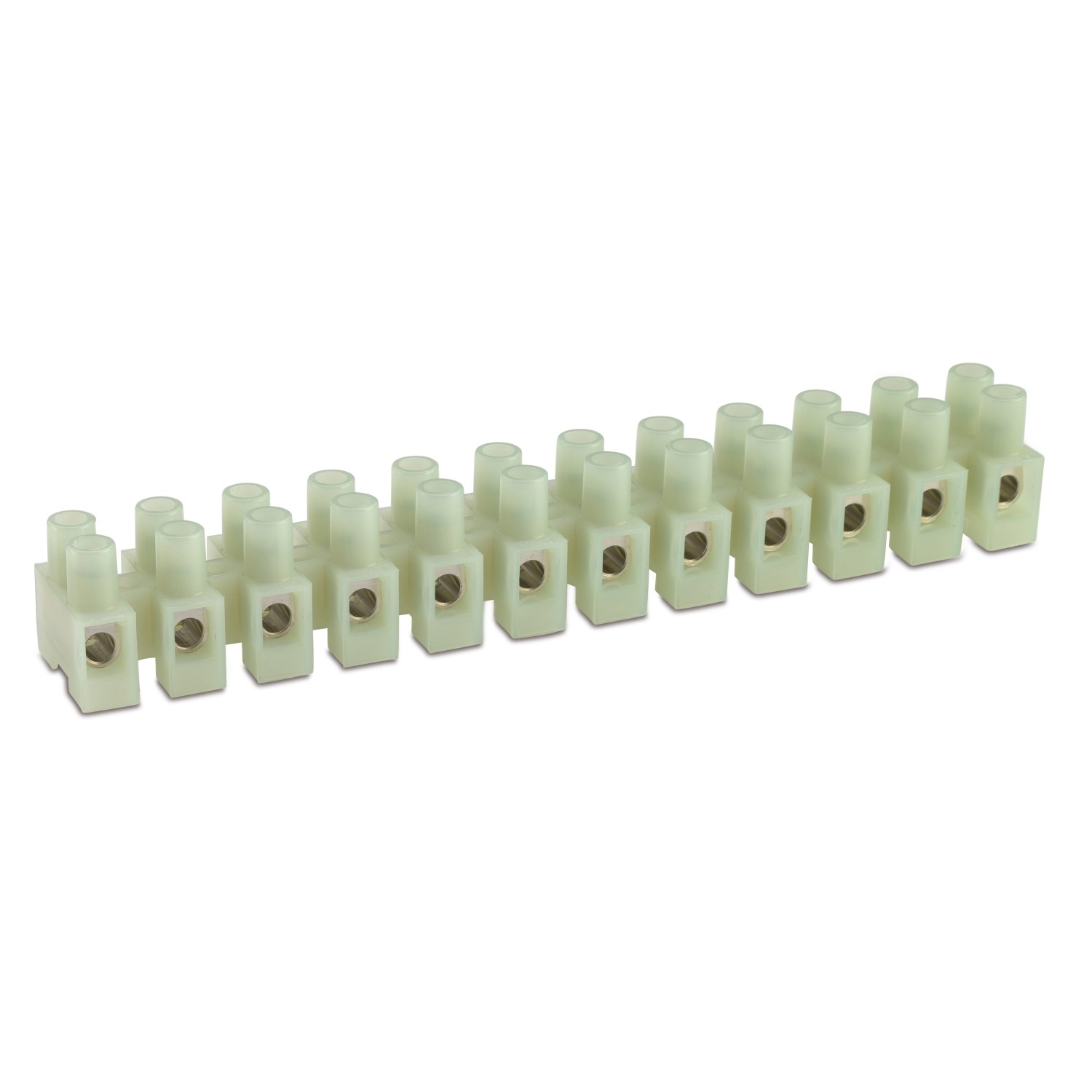

NYLON · FROM 1 TO 12 WAYS · M095 SERIES

cid 41MA07A

Product Category	multiway terminal blocks
Insulating housing	polyamide (PA 6.6) natural color UL 94 V2
Conductive body	nickel-plated brass
Captive screw in	galvanized steel (M4)
Insulation self-extinguishing	EN 60695-2-10 a 850 °C
Conductor type	rigid and flexible
Max short-time temperature	200 °C
Test voltage	2500 V
According to std.	EN 60998-1: 2004, EN 60998-2-1: 2004
cid	41MA07A

Image	Section [mm²]	Section [AWG]	Rated voltage [V]	Test current [A]	Max operating temperature [°C]	Torque [Nm]
	10	-	400	57	125	0,7
	-	18-8	600	50	105	1,2

Images with
dimensions

Item Code	Ways	Color	L1 [mm]	
M095	12	Natural	174 ± 1	100/200
95/1	1	Natural	9,5 ± 1	Contact BM
95/2	2	Natural	24,5 ± 1	Contact BM
95/3	3	Natural	39 ± 1	Contact BM
95/4	4	Natural	54,5 ± 1	Contact BM
95/5	5	Natural	69,5 ± 1	Contact BM
95/6	6	Natural	84 ± 1	Contact BM
95/7	7	Natural	99 ± 1	Contact BM
95/8	8	Natural	114,5 ± 1	Contact BM
95/9	9	Natural	129,5 ± 1	Contact BM
95/10	10	Natural	145 ± 1	Contact BM
95/11	11	Natural	160,2 ± 1	Contact BM
