POLARIZED PLUG TERMINALS · 2-WAY · M902 SERIES

Product was successfully added to your shopping cart.

POLARIZED PLUG TERMINALS · 2-WAY · M902 SERIES

cid 41MD01A

POLARIZED PLUG TERMINALS · 3-WAY · M903 SERIES

Product Category	polarized plug connectors
Brown plug and socket	polyamide (PA 6.6) and 25% fiberglass
White plug and socket	polyamide (PA 6.6)
White and black shell and cable clamp	polyamide (PA 6.6)
Conductive body in	nickel-plated brass
Captive screw in	galvanized steel
Insulation self-extinguishing	EN 60335-1: 2002 +A2:2006 (par. 30.2.3), EN 60695-2-11
Tensione nominale di tenuta ad impulso	4 kV
Rated voltage	400 V
Conductor type	rigid and flexible
Operating cycles	5000
Grado di inquinamento	2
Protection grade	IP20
According to std.	EN 61984: 2009
cid	41MD01A

Images with
dimensions

Coded items

Item Code	Description	Section [mm²]	Operating temperature	Terminal Block Material	Terminal Block Color	Shells Material	Shells Color	Shells Cable clamp	W1 [mm]	L1 [mm]	L2 [mm]	S1 [mm]		Quantity per Wishlist

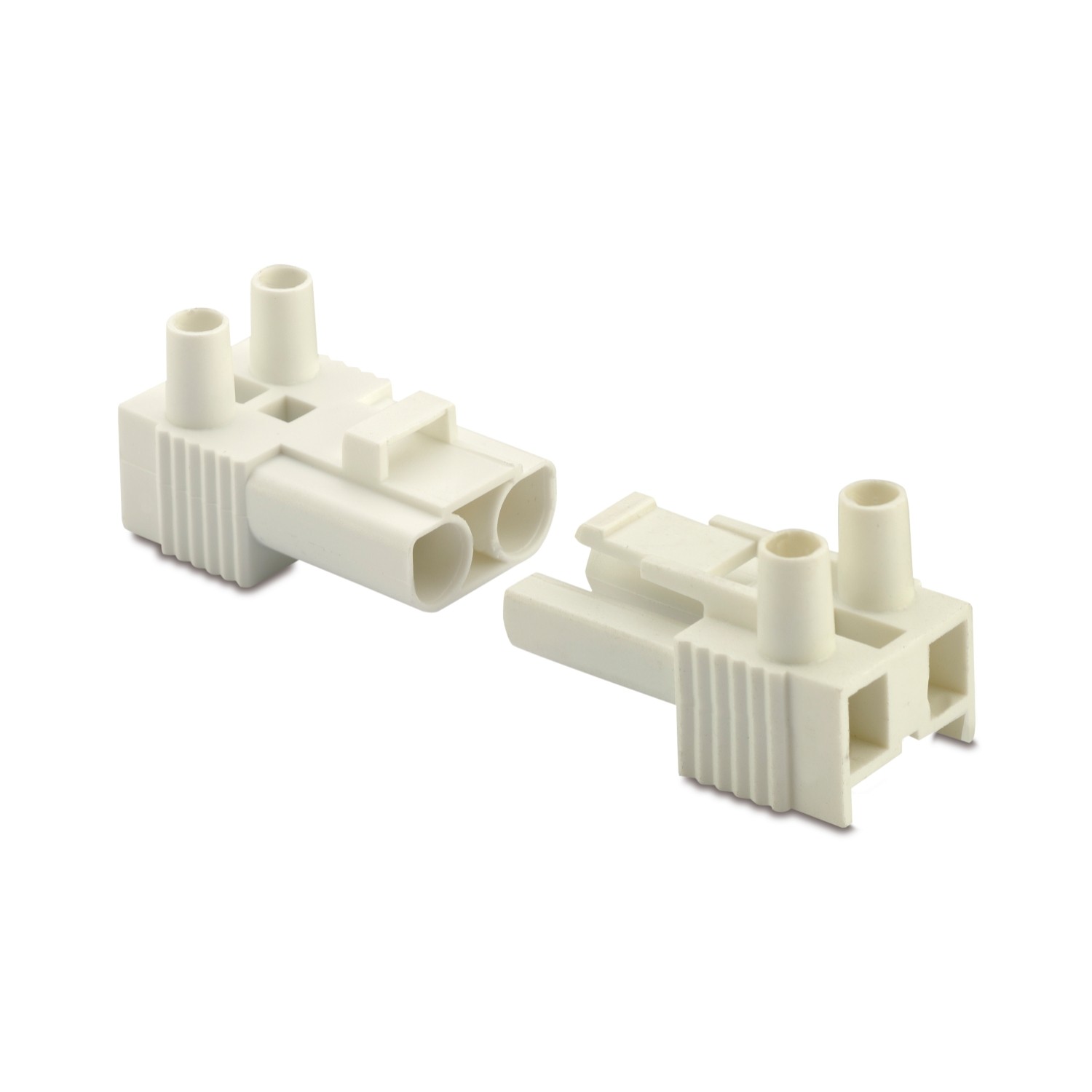

B9021	Male plug	2.5	from -10 °C to 105 °C max	PA 6.6	White			-	19	32		20	100/100
B9022	Female receptacle	2.5	from -10 °C to 105 °C max	PA 6.6	White			-	19	32	20		100/100

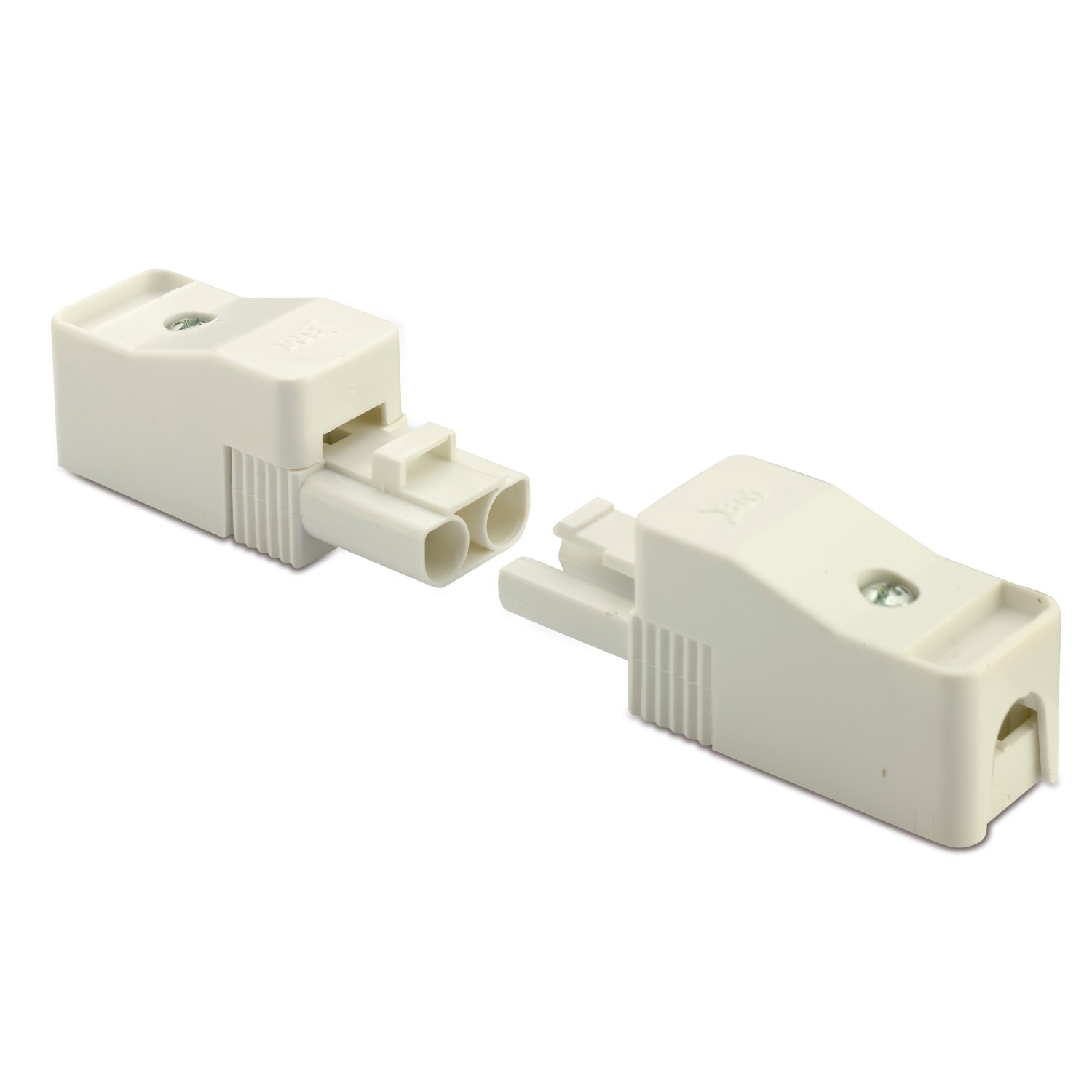

B9023	Male plug	2.5	from -10 °C to 105 °C max	PA 6.6	White	PA 6.6	White	5,7 - 7	19	60	21		1/50
B9024	Female receptacle	2.5	from -10 °C to 105 °C max	PA 6.6	White	PA 6.6	White	5,7 - 7	19	60	21		1/50

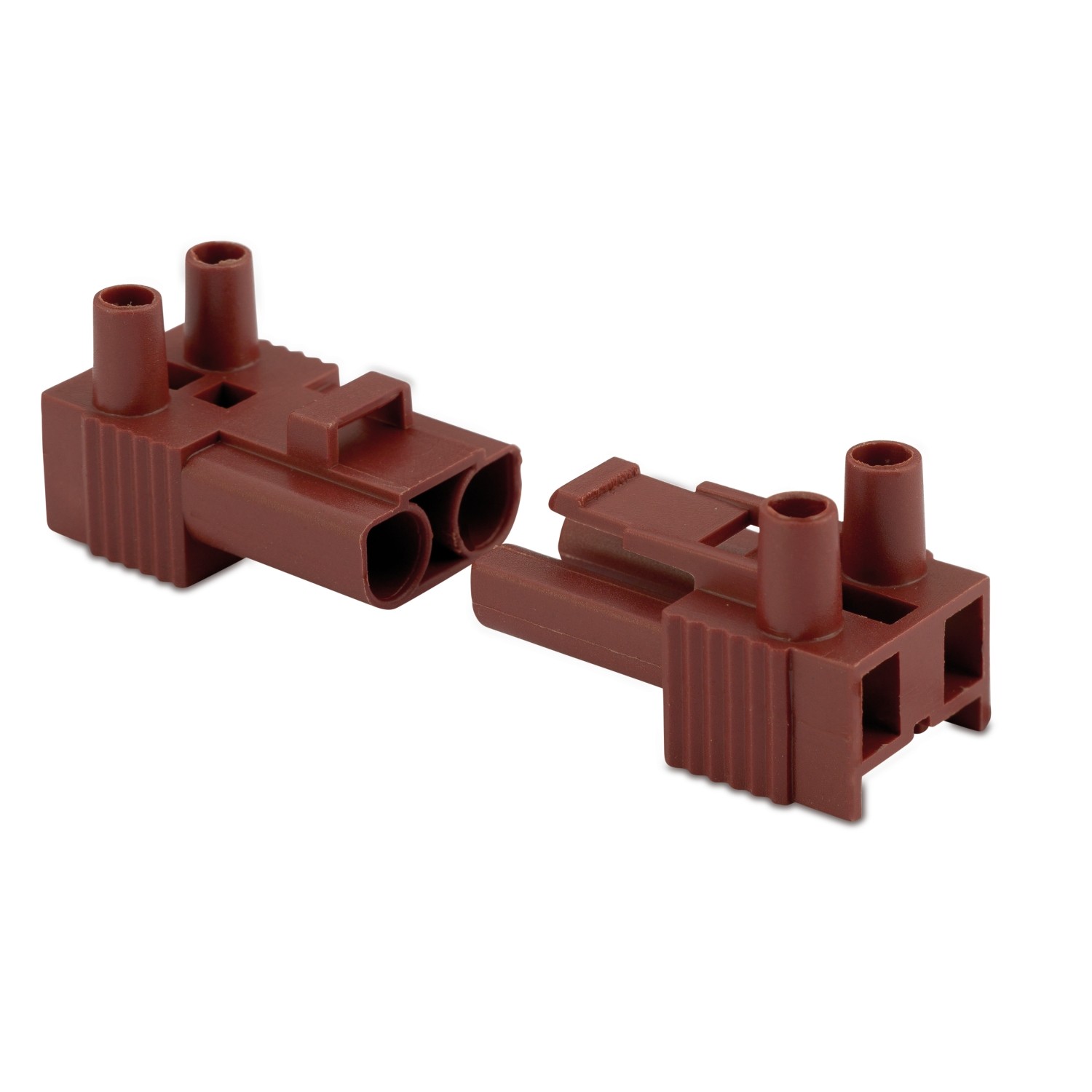

M9021	Male plug	2.5	from -10 °C to 150 °C max	PA 6.6 + fibra vetro	Brown			-	19	32	20		100/100
M9022	Female receptacle	2.5	from -10 °C to 150 °C max	PA 6.6 + fibra vetro	Brown			-	19	32	20		100/100

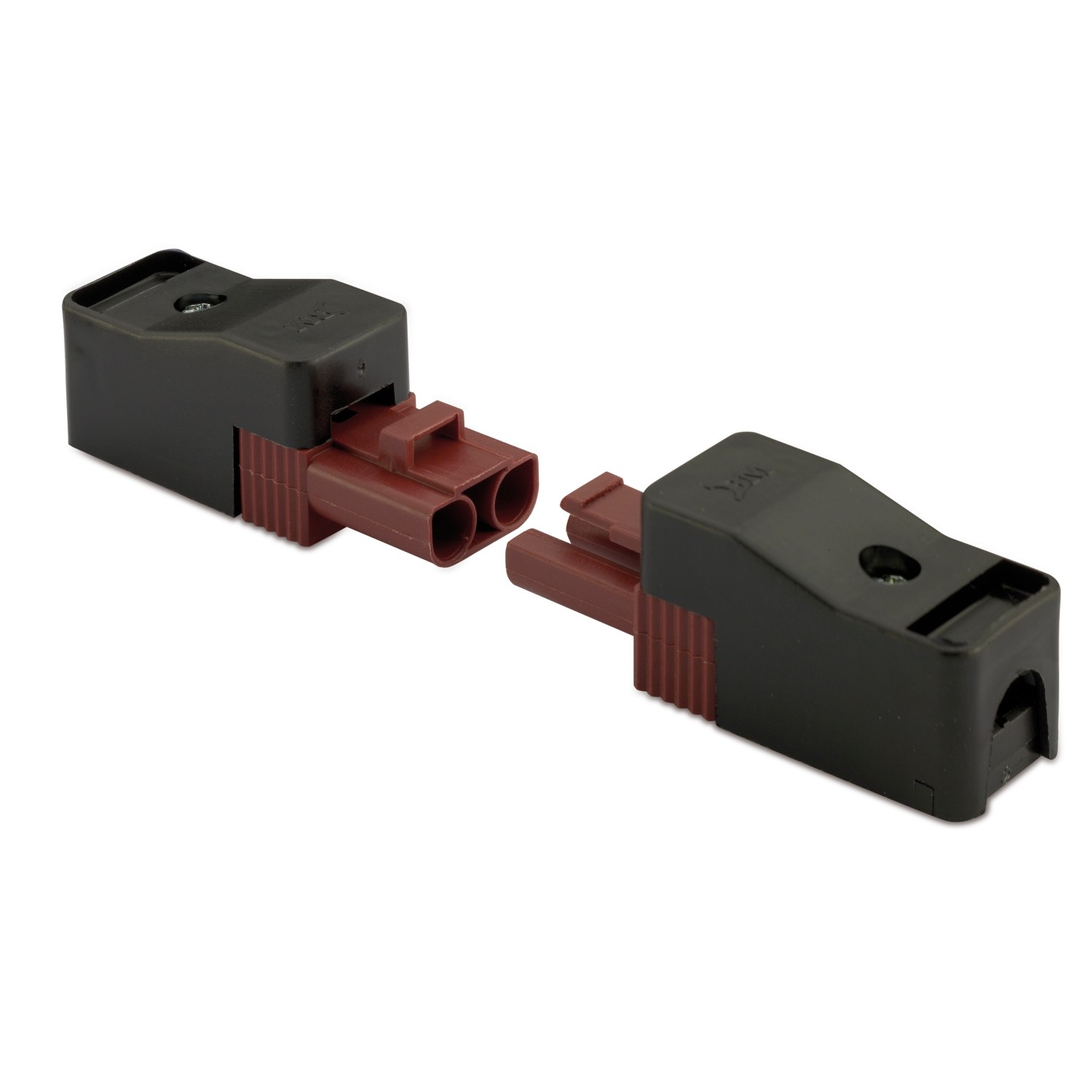

M9023	Male plug	2.5	from -10 °C to 105 °C max	PA 6.6 + fibra vetro	Brown	PA 6.6	Black	5,7 - 7	19	60	21		1/50
M9024	Female receptacle	2.5	from -10 °C to 105 °C max	PA 6.6 + fibra vetro	Brown	PA 6.6	Black	5,7 - 7	19	60	21		1/50
