POLARIZED PLUG TERMINALS · 3-WAY · M903 SERIES

cid 41MD01B
Previous

POLARIZED PLUG TERMINALS · 2-WAY · M902 SERIES

Previous

POLARIZED PLUG TERMINALS · 5-WAY · M905 SERIES

Product Categorypolarized plug connectors
Brown plug and socketpolyamide (PA 6.6) and 25% fiberglass
White plug and socketpolyamide (PA 6.6)
White and black shell and cable clamppolyamide (PA 6.6)
Conductive body innickel-plated brass
Captive screw ingalvanized steel
Insulation self-extinguishingEN 60335-1: 2002 +A2:2006 (par. 30.2.3), EN 60695-2-11
Rated voltage400 V
Conductor typerigid and flexible
Operating cycles5000
Protection gradeIP20
According to std.EN 61984: 2009
cid41MD01B
PDF documents
Images with
dimensions
Item
Code		 DescriptionSection
[mm²]		Terminal Block
Material		Terminal Block
Color		Shells
Material		Shells
Color		Shells
Cable clamp		W1
[mm]		L1
[mm]		S1
[mm]		 Quantity per
Wishlist

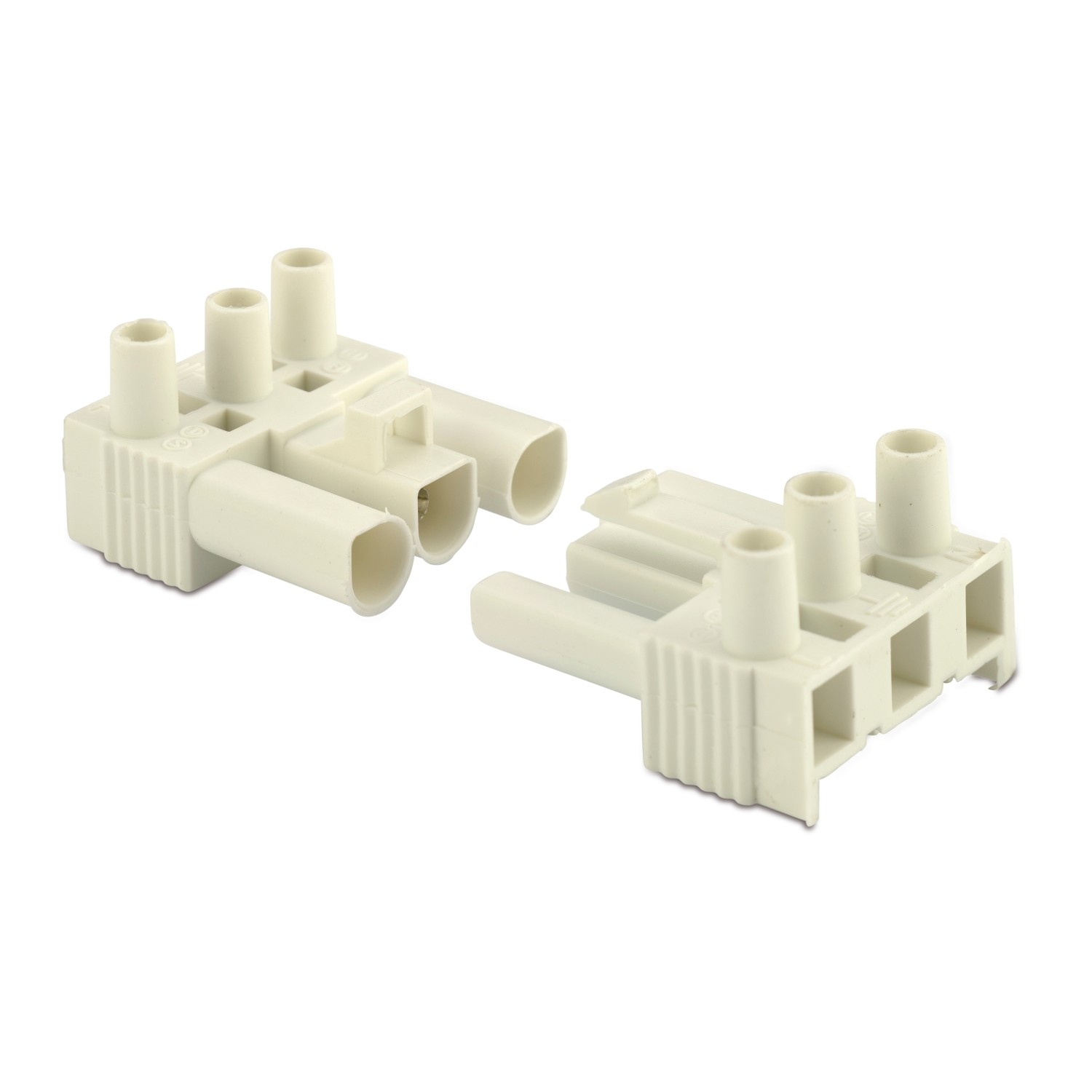

B9031 Male plug2.5PA 6.6White  -29322050/50
B9032 Female receptacle2.5PA 6.6White  -29322050/50

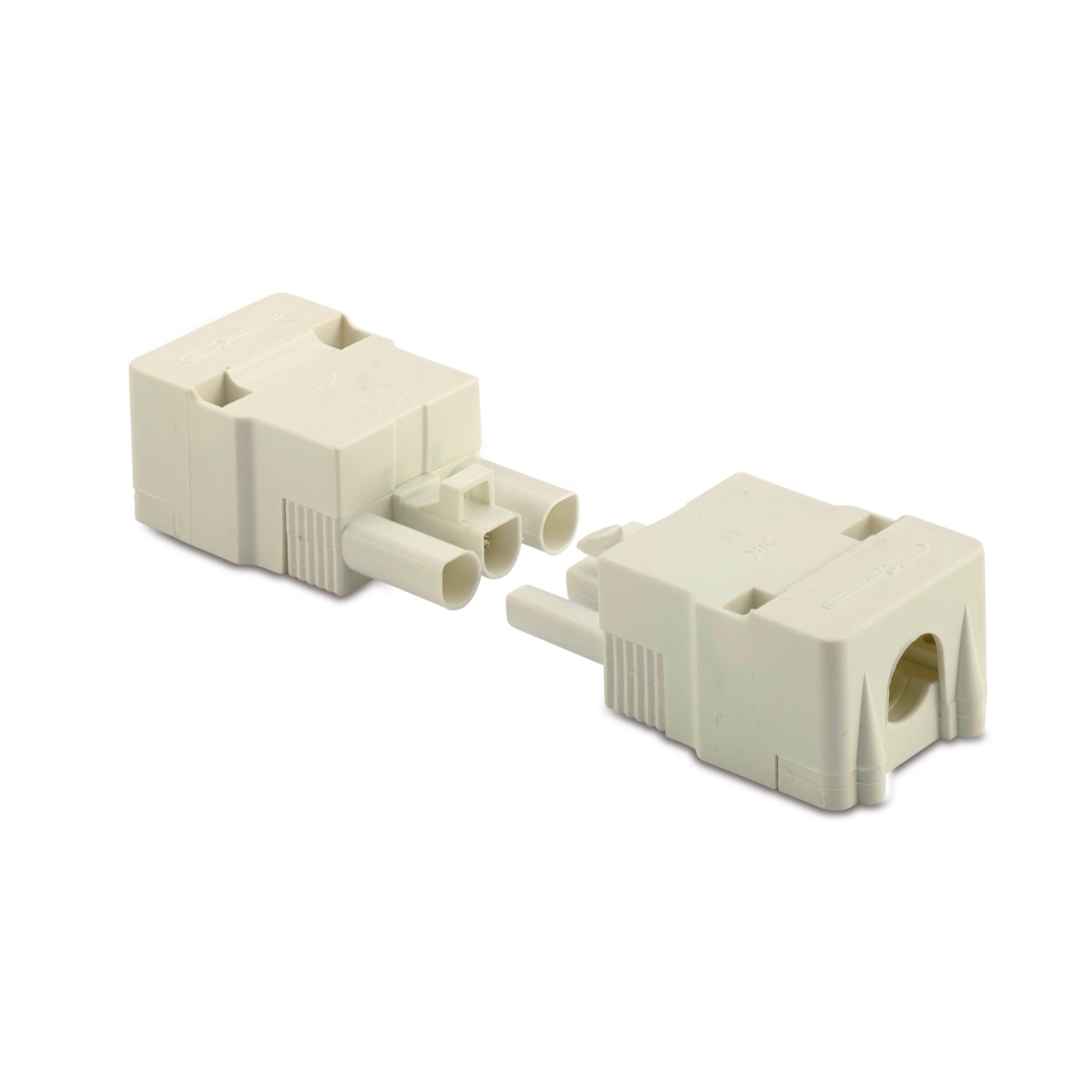

B9033 Male plug2.5PA 6.6WhitePA 6.6White4,5 - 10,53257231/50
B9034 Female receptacle2.5PA 6.6WhitePA 6.6White4,5 - 10,53257231/50

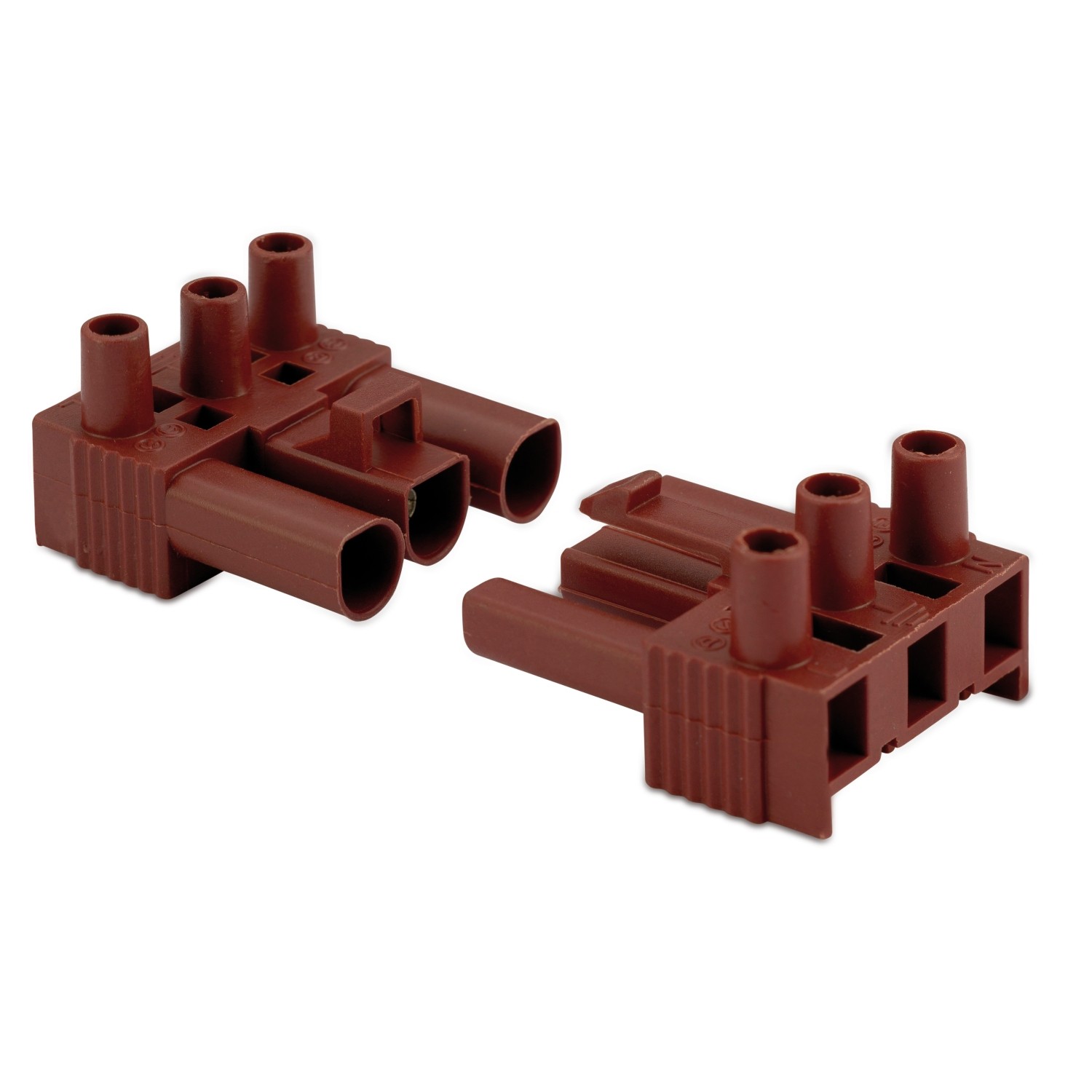

M9031 Male plug2.5PA 6.6 + fibra vetroBrown  -29322050/50
M9032 Female receptacle2.5PA 6.6 + fibra vetroBrown  -29322050/50

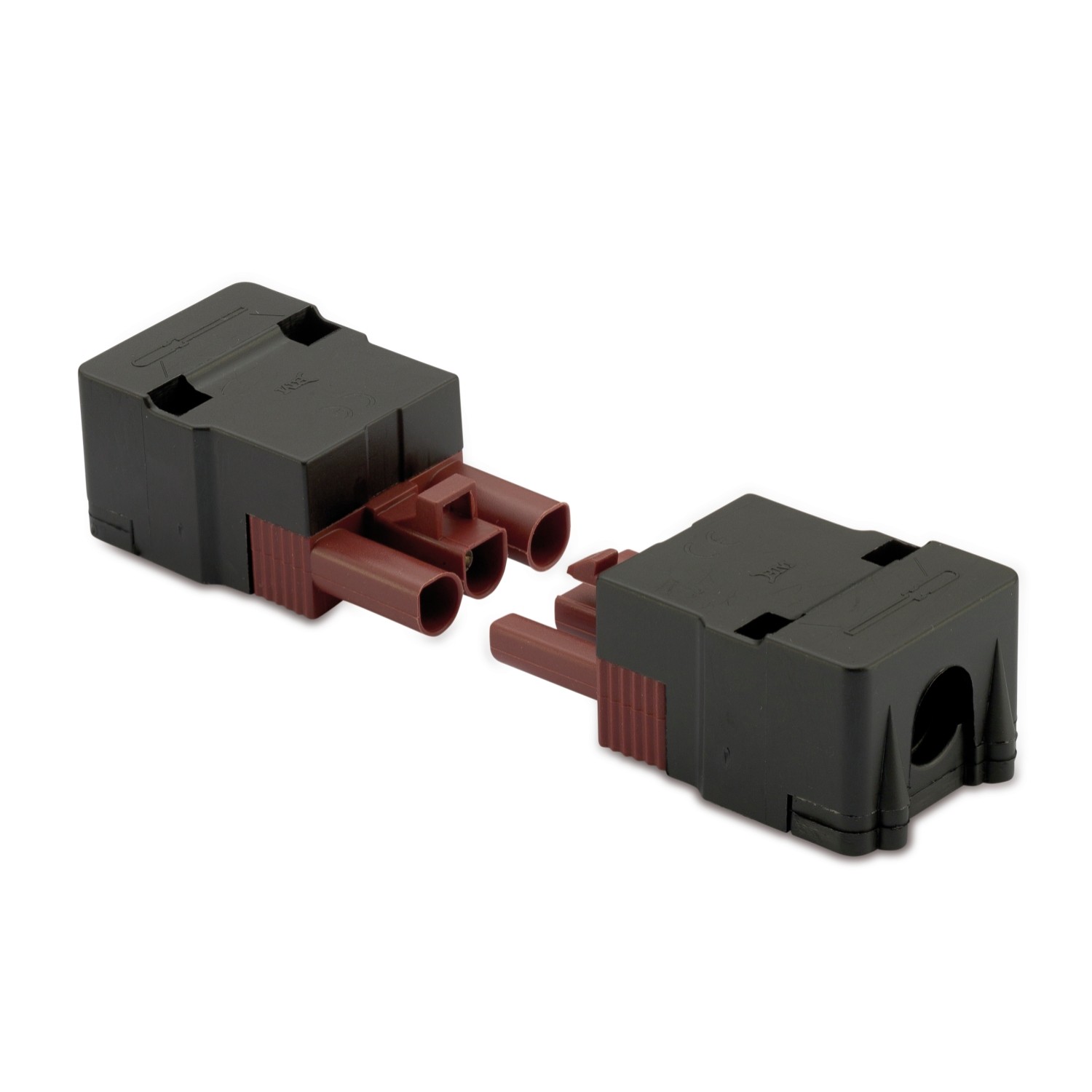

M9033 Male plug2.5PA 6.6 + fibra vetroBrownPA 6.6Black4,5 - 10,53257231/50
M9034 Female receptacle2.5PA 6.6 + fibra vetroBrownPA 6.6Black4,5 - 10,53257231/50
